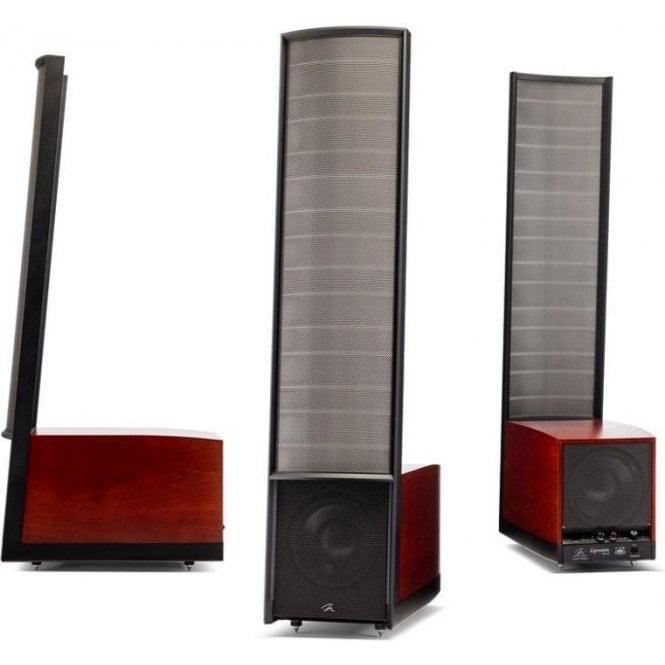

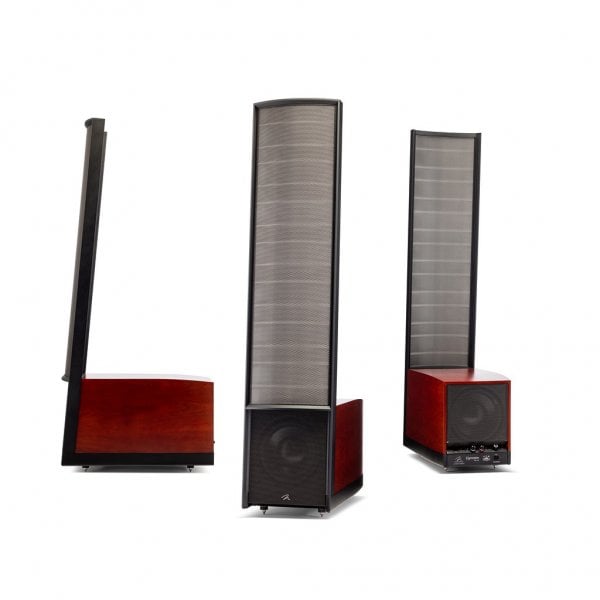

Martin Logan Expression ESL 13A Floorstanding Speakers

Code: EXP13

From £19,995.00
Secure yours with a deposit of
(FREE UK Delivery)
|
|

Usually dispatched within 24 hours

The Expression ESL 13A is part of the Masterpiece Series. It features a dual 10-inch woofer system with ARC-honed performance, for perfectly blended low-frequency response. The groundbreaking integration of this woofer array with MartinLogan’s signature 13-inch wide XStat CLS Transducer, coupled with a powerful dual amplifier section, delivers an expressive and dynamic audio experience, with less coloration. It reveals the pure emotional impact of your audio.

Please Note: A custom finish can be ordered. Contact us for further information.

Add To Compare

Product Description
Delivery

Expression ESL 13A is the artful presentation of audio focused solely on intensifying your emotional experience. Featuring a 13-inch (CLS™) XStat™ electrostatic transducer, dual 10-inch PoweredForce Forward™ woofers powered by dual 300-watt Class-D amplifiers, and controlled by a 24-Bit Vojtko™ DSP Engine and ARC™ (Anthem Room Correction).

Technical Specifications:

Frequency Response: 24–23,000 Hz ±3dB
Recommended Amplifier Power: 20—600 watts per channel
Horizontal Dispersion: 30°
Vertical Dispersion: 44" (112cm) line source
Sensitivity: 91 dB/2.83 volts/meter
Impedance: 4 Ohms, 0.7 at 20kHz Compatible with 4, 6, or 8 Ohm rated amplifiers.
Crossover Frequency: 300Hz
High Frequency Transducer: XStat™ CLS™ electrostatic transducer » Panel Dimensions: 44" x 13" (112 x 33cm) » Radiating Area: 572 in² (3,696 cm² )
Low Frequency Transducer: Two 10” (25.4 cm) cast basket, high excursion, rigid aluminium cone and extended throw drive assembly, non-resonance asymmetrical chamber format.
Amplifier: Woofer: 2 x 300 watts/channel (4 ohms), 2 x 600 watts peak
Room Correction (Bass Section): Anthem Room Correction (ARC™) ready (Sold Separately)
Components: Custom-wound audio transformer, air core coils, polypropylene capacitors. 24-bit DSP based preamplifier (used with woofer amplifier).
Audio Controls: Bass: ±10 dB under 75 Hz Mid-Bass: –2 dB, 0 db, +2 db Light: On, Dim, Off ARC™ Room EQ: On, Off
Signal Inputs: WBT-0703Cu nextgen™ 5-way binding posts feature a filigree signal conductor made from gold plated, nickel free, non- ferromagnetic, pure copper for high conductivity and fully insulated. Free from eddy current effects.
Inputs: AC Power, RJ45 (for ARC), mini USB (for ARC)
Power Draw: Idle: < 1W/channel Max: 500W/channel
Lighting: LED intensity control: on, dim, off
Weight: 103 lbs. (46.8 kg)
Dimensions: 61.5" x 13.4" x 27.5 " (156.1cm x 33.9cm x 69.9cm)
