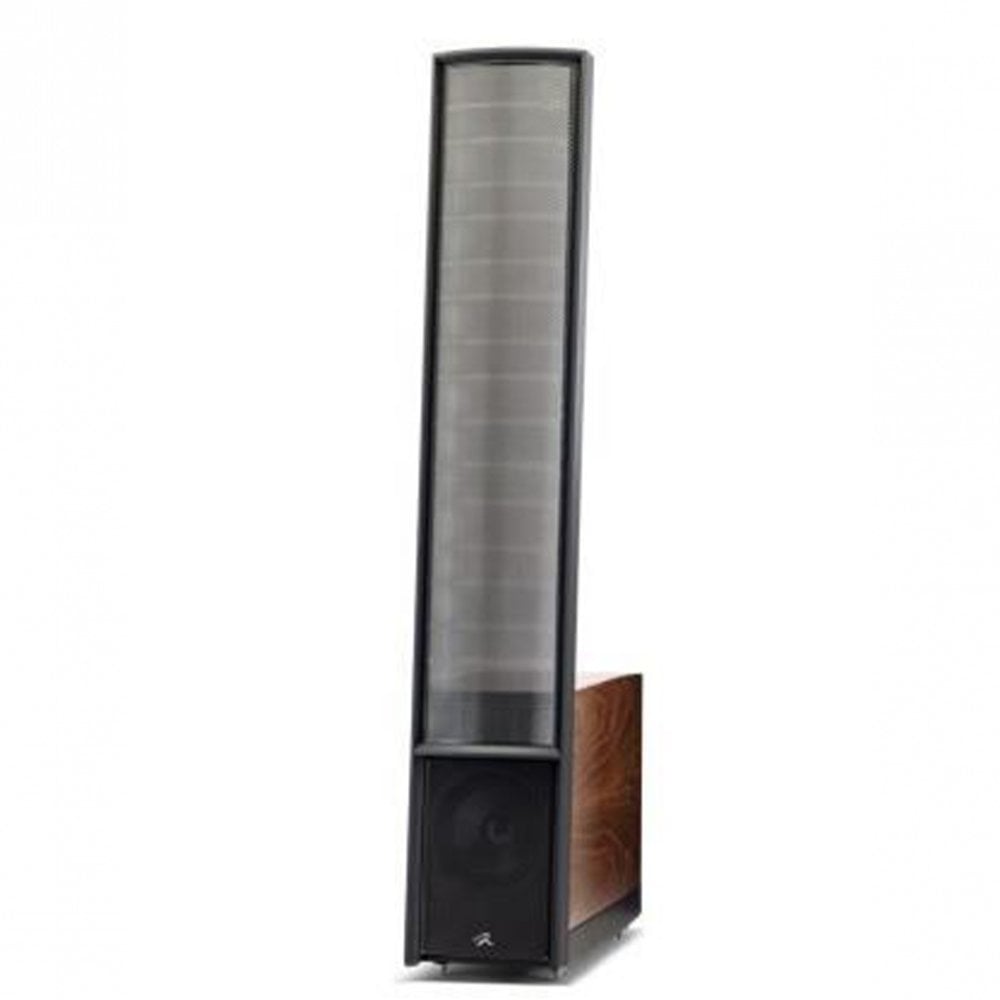

MartinLogan unveils the Classic ESL 9, its newest modern Masterpiece. All the familiar elements of MartinLogan’s flagship ESL series are here, with some revolutionary refinements. The heart of this exceptional loudspeaker is its 9.2-inch-wide Curvilinear Line Source (CLS) XStat vacuum-bonded electrostatic transducer. Advanced MicroPerf stator technology reveals more of the diaphragm surface area than any other electrostatic panel in this size class, efficiently increasing the narrow panel’s output. Ultra-rigid AirFrame Blade construction reduces performance-robbing vibrations, its shape creating an expressive alignment with the woofer cabinet. Deep bass is rendered with unflinching accuracy and authority by dual 8-inch low-distortion, high-excursion aluminum cone woofers in a beautifully sculpted enclosure.

Add To Compare

Product Description
Delivery

Classic ESL 9 is your ticket to a life-changing experience with a masterpiece of audio performance. This completely passive design features a 9.2-inch (CLS™) XStat™ electrostatic transducer, dual 8-inch aluminum-Cone woofers, and custom 5-way bi-wire tool-less binding posts.

Technical Specifications:

Frequency Response: 34–23,000 Hz ±3dB
Recommended Amplifier Power: 20—400 watts per channel
Horizontal Dispersion: 30°
Vertical Dispersion: 44" (112cm) line source
Sensitivity: 90 dB/2.83 volts/meter
Impedance: 4 Ohms, 0.8 at 20kHz Compatible with 4, 6, or 8 Ohm rated amplifiers.
Crossover Frequency: 380Hz
High Frequency Transducer: XStat™ CLS™ electrostatic transducer » Panel Dimensions: 44" x 9.2" (112 x 23cm) » Radiating Area: 405 in² (2,576 cm² )
Low Frequency Transducer: Two 8” (20.3 cm) cast basket, high excursion, rigid aluminium cone woofers with extended throw drive assembly, non-resonance asymmetrical chamber format
Components: Custom-wound audio transformer, air core coils, low DCR steel laminate coils, polyester capacitors
Signal Inputs: Custom 5-way bi-wire tool-less binding posts
Power Draw: Max: 2W per channel Standby: <1W per channel
Weight: 78 lbs. (35.4 kg)
Dimensions: 59.8" x 10.4" x 25.4 " (152cm x 26.4cm x 64.6cm)
