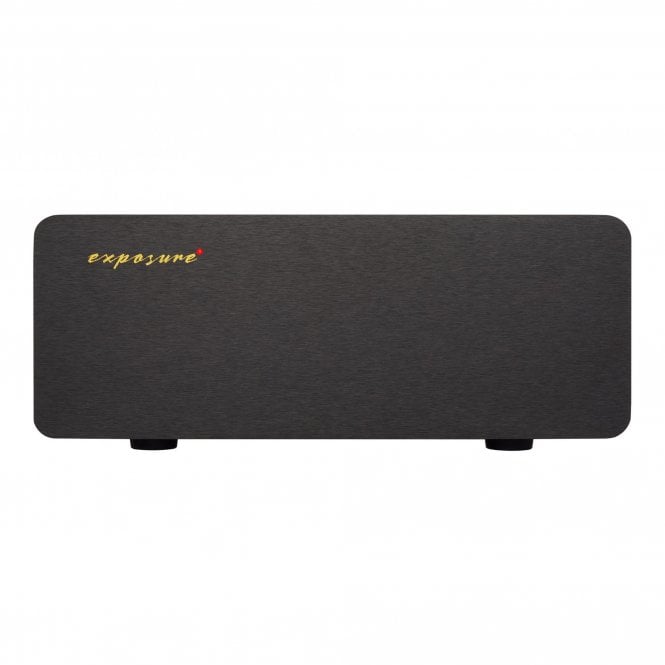

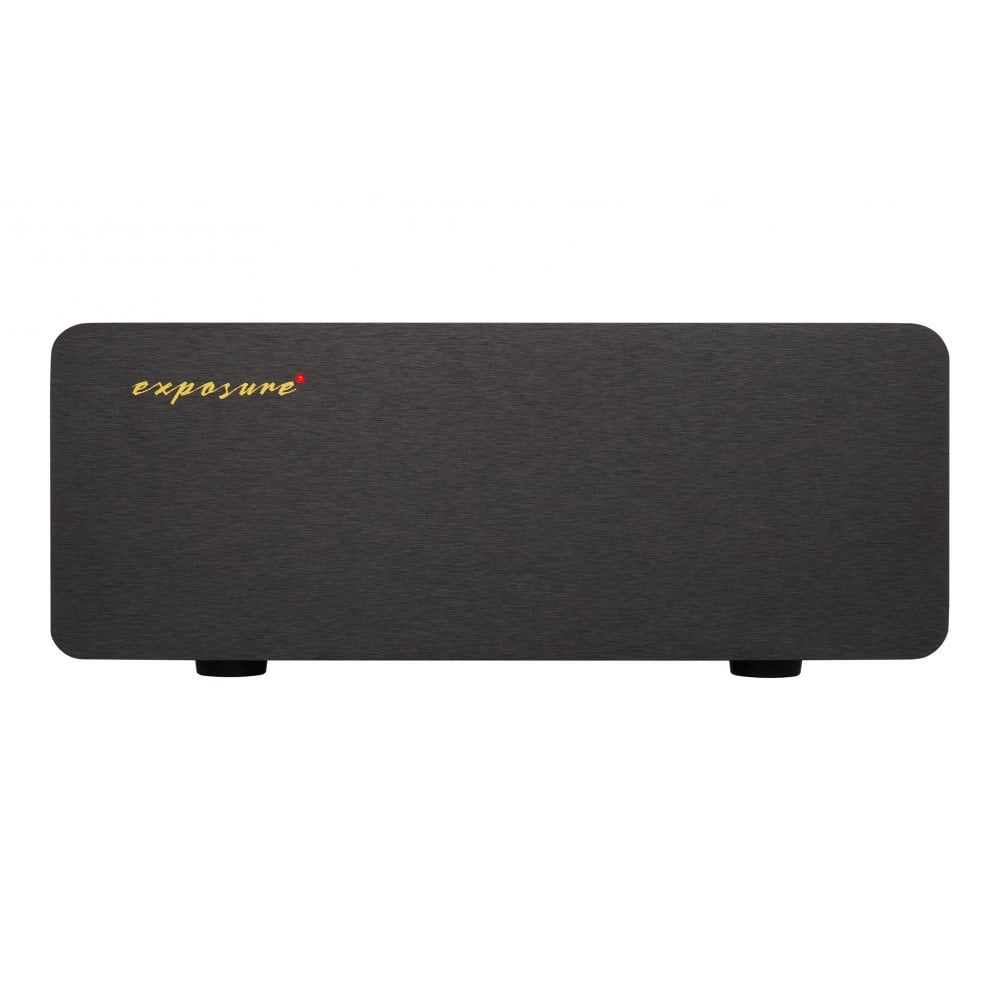

Exposure VXN Active Crossover

Technical Specifications:

• 2 Way or 3 Way Active Crossover: Roll off rates and level settings to match the loudspeaker in use (to be specified at time of order)
• Treble: 12-18dB per octave high pass filer
• Mid: 12-18dB per octave high pass filter, 6-18dB per octave low pass filter
• Bass: 6-18dB per octave low pass filter
• Maximum Output Level (any output): 7V RMS
• Bass output THD @ 100Hz 2V output <0.005%
• Mid range output THD @ 1KHz 2V output <0.005%
• Treble output THD @ 10KHz 2V output <0.005%
• S/N ratio ref 2V output (any output >100dB
• Output impedance @ 1KHz (any output) 50 Ohms
• Level settings of Treble & Mid Range by DIP switches inside the unit (one bank per channel for Treble & Mid Range)
• Range -0.5dB to -6.5dB (specials to order)
• Power Consumption: <10W
• Dimensions (WxHxD): 218mm x 89mm x 348mm
• Net Weight: 2kg
• Gross Weight: 3kg
