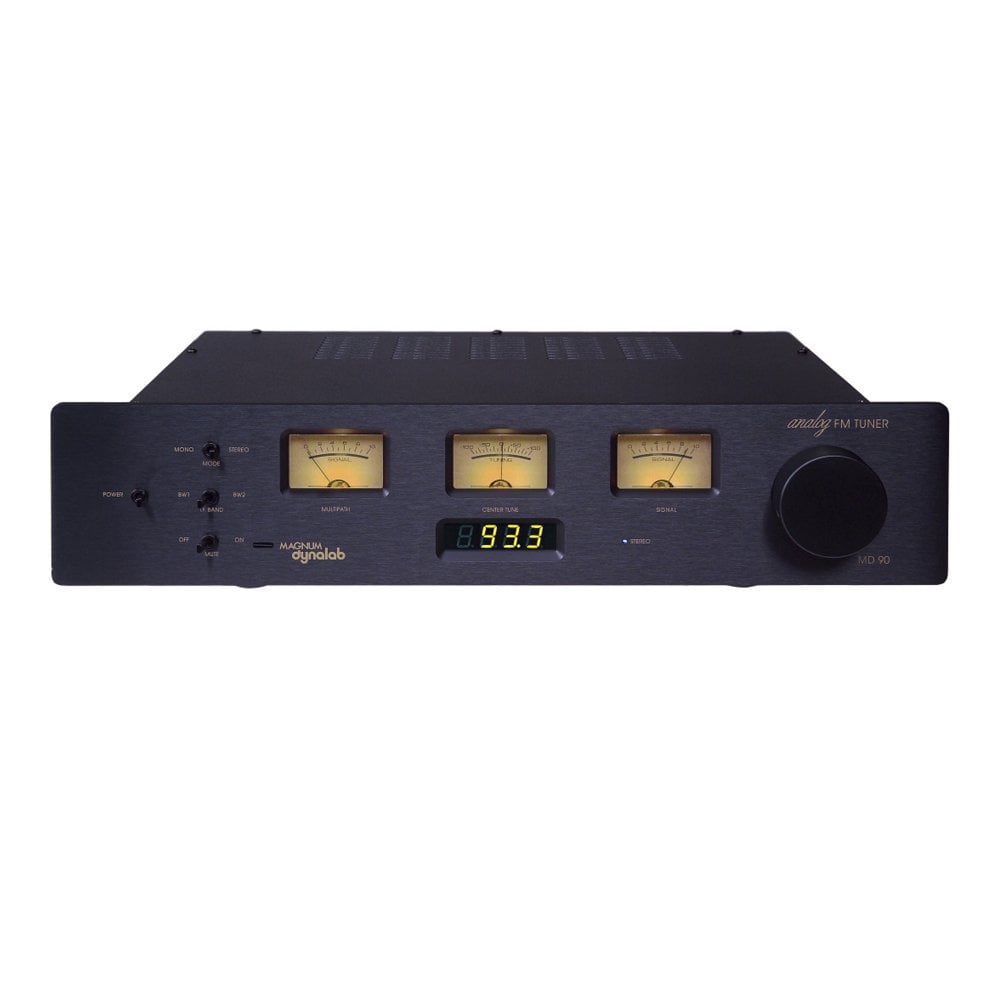

Magnum Dynalab MD90T Triode Tube FM Tuner

Code: MD90T
  • £2,250.00
  • (FREE UK Delivery)
  |   Usually dispatched within 24 hours

The 90T launched Magnum Dynalab into a whole new world of audio performance when Zdenko Zivkovic developed their first triode tube audio board for this model.

The difference was breathless and still is. All of their top tuners feature triode tube output stages. The 90T has become a top selling tuner.

Key Features:

  • Custom Plitron toroidal transformer
  • A 0.093 gold plated circuit board
  • Solen polypropylene capacitors
  • An Electro-Harmonix 6922 tube

Technical Specifications:

  • Usable sensitivity - Mono: 0.7 uV 9.0 dBf
  • 50 dB quieting – Mono: 2.0 uV 9.9 dBf
  • 50 dB quieting – Stereo: 2.3 uV 25.0 dBf
  • Capture ratio: 1.5 dB
  • Image rejection: 110.0 dB
  • Signal to noise ratio: 80.0 dB
  • Alternate channel – Wide: 40.0 dB
  • Alternate channel – Narrow: 70.0 dB
  • Adjacent channel – Wide: 3.0 dB
  • Adjacent channel – Narrow: 35.0 dB
  • THD – Mono: 0.10 %
  • THD – Stereo: 0.18 %
  • Stereo separation: 50.0 dB
  • AM suppression: 70.0 dB
  • SCA rejection: 80.0 dB
  • IF rejection: 80.0 dB
  • 19 KHz and 38 KHz component rejection: 75.0 dB
  • Audio frequency response (+/- 1 dB): 15 Hz – 17 KHz
  • Balanced audio output (600 ohms): 2.2 V
  • Line audio output (RCA): 1.0 V
  • Line power (Must be specified) 110/220/230/240: VAC
  • Dimensions (inches H.W.D.): 4 x 17.75 x 13
  • Dimensions (cm H.W.D.): 11.43 x 48.3 x 38.1
  • Weight (lbs./kgs): 18/7.96
  • Power consumption (Typ/Max): 50w/100w

Tube Specifications:

  • Filament current: (max) 330 mA (min) 270 mA
  • Anode current (1): (max) 1.07 mA (min) 0.92 mA
  • Anode current (2): (max) 1.07 mA (min) 0.92 mA
  • Total harmonic distortion: < 1.8%
