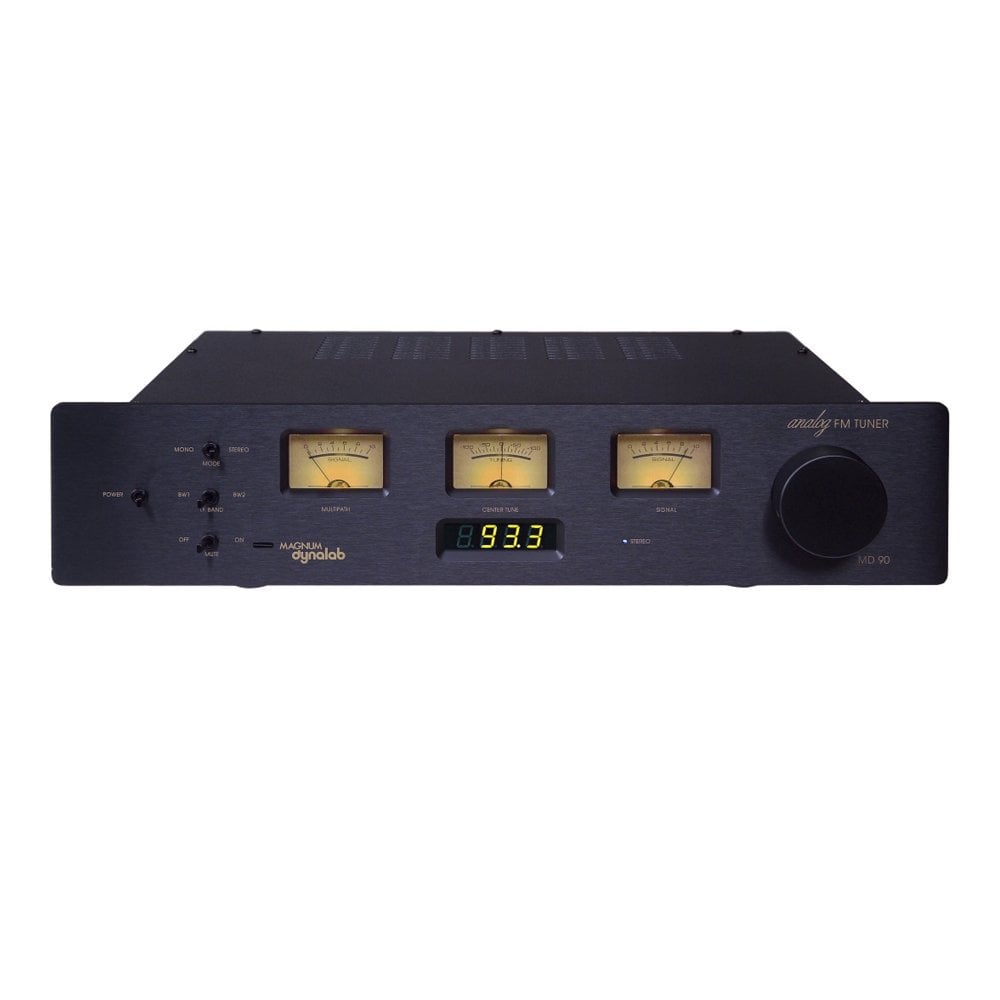

Magnum Dynalab MD90T SE Triode Tube Special Edition FM Tuner

Technical Specifications:

• Usable sensitivity - Mono: 0.7 uV 9.0 dBf
• 50 dB quieting – Mono: 2.0 uV 9.9 dBf
• 50 dB quieting – Stereo: 2.3 uV 25.0 dBf
• Capture ratio: 1.5 dB
• Image rejection: 110.0 dB
• Signal to noise ratio: 80.0 dB
• Alternate channel – Wide: 40.0 dB
• Alternate channel – Narrow: 70.0 dB
• Adjacent channel – Wide: 3.0 dB
• Adjacent channel – Narrow: 35.0 dB
• THD – Mono: 0.10 %
• THD – Stereo: 0.18 %
• Stereo separation: 50.0 dB
• AM suppression: 70.0 dB
• SCA rejection: 80.0 dB
• IF rejection: 80.0 dB
• 19 KHz and 38 KHz component rejection: 75.0 dB
• Audio frequency response (+/- 1 dB): 15 Hz – 17 KHz
• Balanced audio output (600 ohms): 2.2 V
• Line audio output (RCA): 1.0 V
• Line power (Must be specified) 110/220/230/240: VAC
• Dimensions (inches H.W.D.): 4 x 17.75 x 13
• Dimensions (cm H.W.D.): 11.43 x 48.3 x 38.1
• Weight (lbs./kgs): 18/7.96
• Power consumption (Typ/Max): 50w/100w

Tube Specifications:

• Filament current: (max) 330 mA (min) 270 mA
• Anode current (1): (max) 1.07 mA (min) 0.92 mA
• Anode current (2): (max) 1.07 mA (min) 0.92 mA
• Total harmonic distortion: < 1.8%
