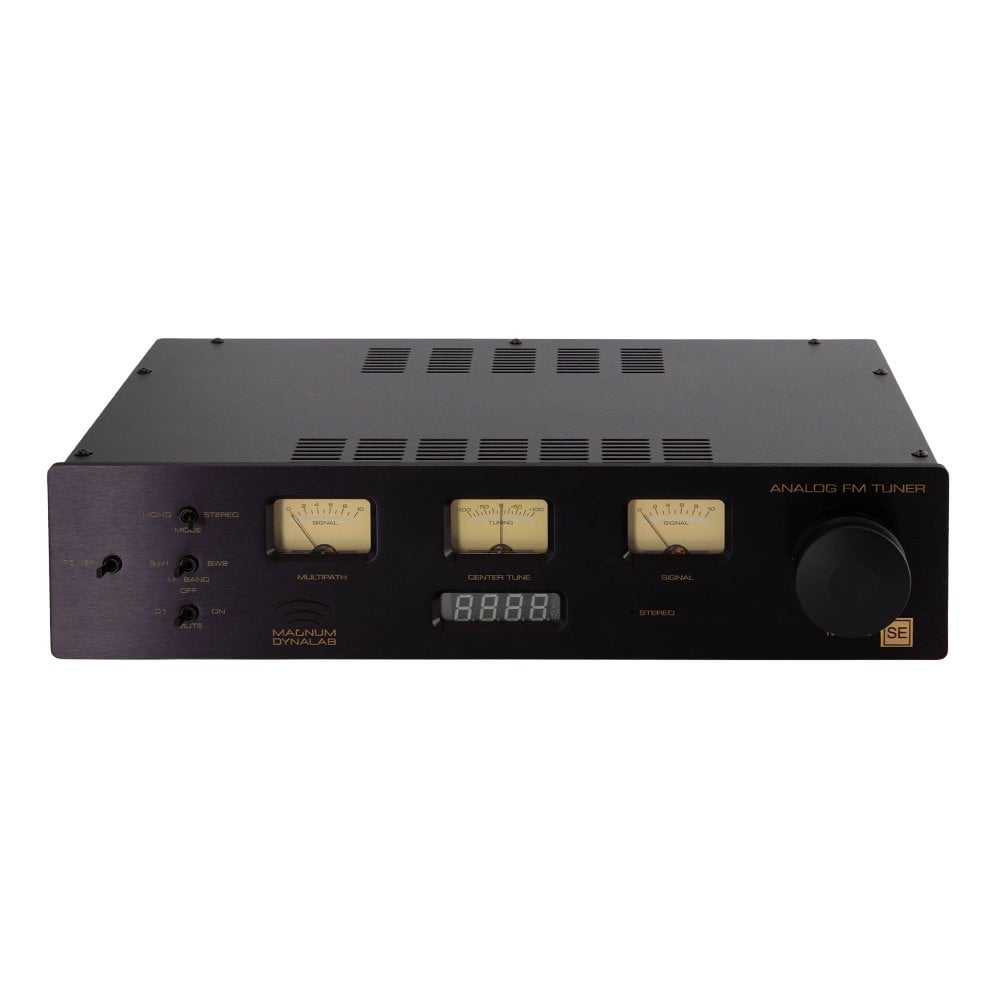

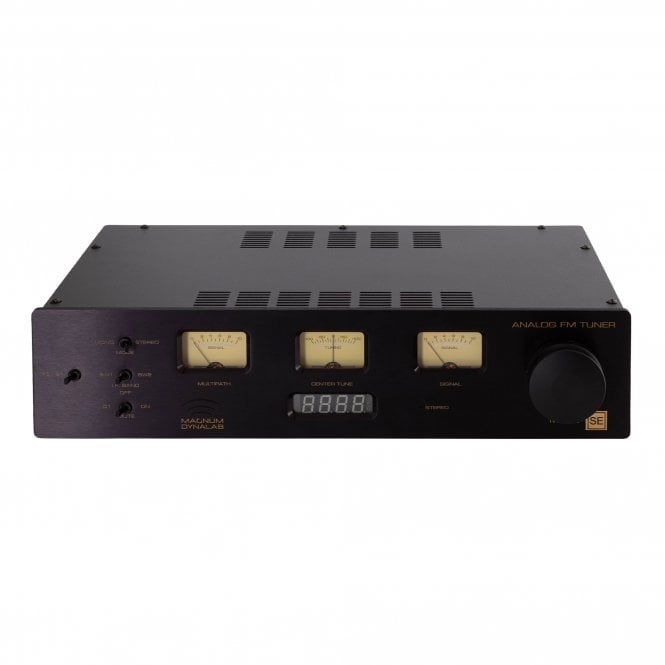

Magnum Dynalab MD90T SE Triode Tube Special Edition FM Tuner - Ex-Demo

Magnum Dynalab MD90T SE Triode Tube Special Edition FM Tuner - Ex-Demo

Code: MD90TSE-EX
  • Now £1,500.00
  • (FREE UK Delivery)
Usually dispatched within 24 hours
Loading...

Please Note: This is a one time listing for an ex-demonstration unit at a discounted price, please note there maybe cosmetic imperfections. Photos are of the actual unit.

In 1985, the original FT-101 launched Magnum Dynalab and redefined what FM tuning could sound like. The FT-101A refined that foundation further. The MD90 continues the legacy, setting a new benchmark for FM performance. Even as Mangum Dynalabs entry-level model, it's trusted by radio stations across North America for broadcast monitoring and remote FM relay.

Key Features:

  • 5-stage tuning for exceptional selectivity and sensitivity
  • Custom Plitron toroidal transformer for a cleaner, quieter power supply
  • Center-tune, signal strength, and multi-path meters for precise, confident tuning
  • Gold-plated Sound Connection RCA connectors
  • Kimber hyper-pure hook-up wire throughout
  • 0.093" gold-plated circuit board
  • Solen polypropylene capacitors, including upgraded bypass caps in the audio section
  • Electro-Harmonix 6922 tube for warm, natural tonal character
  • Brass flywheel and brass clutch precision tuning mechanism for smooth, accurate station selection
  • Balanced output for low-noise connection to professional systems
  • Black faceplate
Ask A Question
Tell A Friend
Add To Compare

Technical Specifications:

  • Usable sensitivity - Mono: 0.7 uV 9.0 dBf
  • 50 dB quieting – Mono: 2.0 uV 9.9 dBf
  • 50 dB quieting – Stereo: 2.3 uV 25.0 dBf
  • Capture ratio: 1.5 dB
  • Image rejection: 110.0 dB
  • Signal to noise ratio: 80.0 dB
  • Alternate channel – Wide: 40.0 dB
  • Alternate channel – Narrow: 70.0 dB
  • Adjacent channel – Wide: 3.0 dB
  • Adjacent channel – Narrow: 35.0 dB
  • THD – Mono: 0.10 %
  • THD – Stereo: 0.18 %
  • Stereo separation: 50.0 dB
  • AM suppression: 70.0 dB
  • SCA rejection: 80.0 dB
  • IF rejection: 80.0 dB
  • 19 KHz and 38 KHz component rejection: 75.0 dB
  • Audio frequency response (+/- 1 dB): 15 Hz – 17 KHz
  • Balanced audio output (600 ohms): 2.2 V
  • Line audio output (RCA): 1.0 V
  • Line power (Must be specified) 110/220/230/240: VAC
  • Dimensions (inches H.W.D.): 4 x 17.75 x 13
  • Dimensions (cm H.W.D.): 11.43 x 48.3 x 38.1
  • Weight (lbs./kgs): 18/7.96
  • Power consumption (Typ/Max): 50w/100w

Tube Specifications:

  • Filament current: (max) 330 mA (min) 270 mA
  • Anode current (1): (max) 1.07 mA (min) 0.92 mA
  • Anode current (2): (max) 1.07 mA (min) 0.92 mA
  • Total harmonic distortion: < 1.8%
