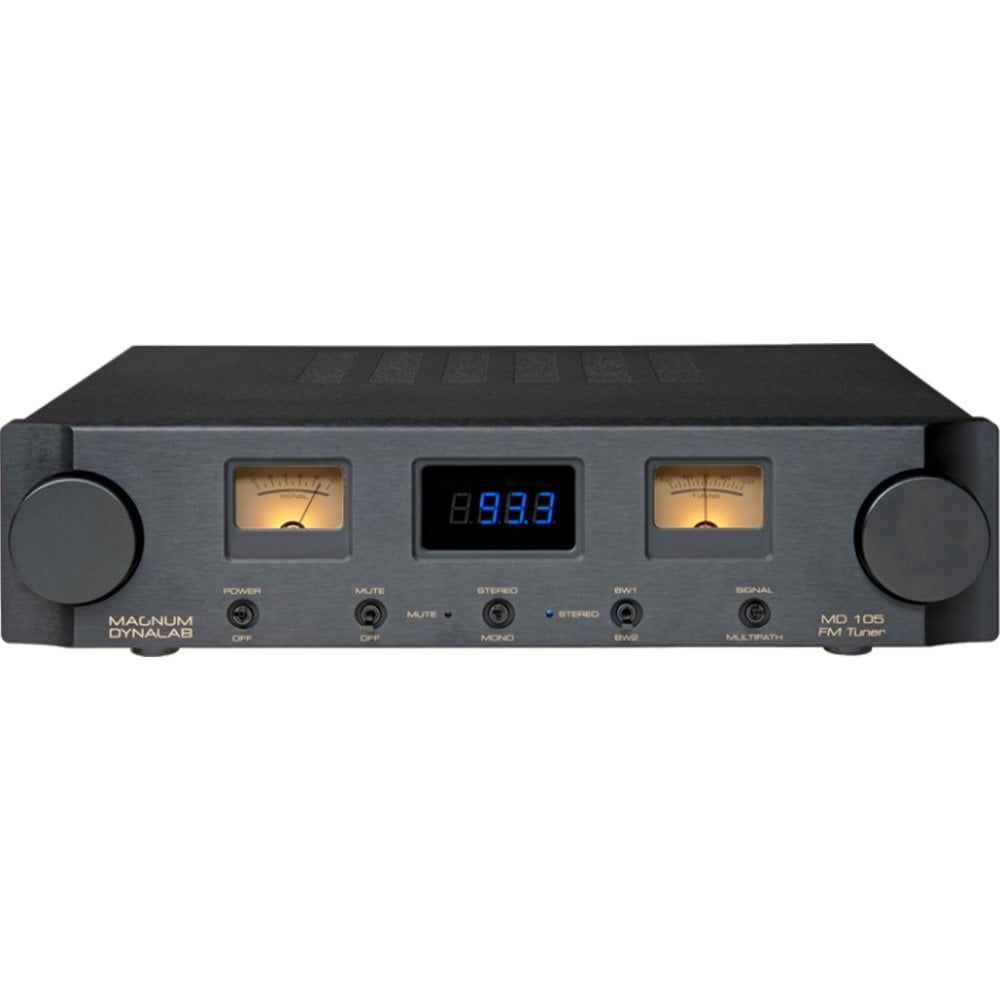

Magnum Dynalab MD105T Triode Tube FM Tuner

Code: MD105T
  • £4,250.00
  • (FREE UK Delivery)
  |   Usually dispatched within 24 hours

The 105T replaced the popular 102T in MD's line. The 105T has a dramatic new cosmetic look. It comes in their larger all aluminum chassis and has a one inch thick front faceplate with blue segment displays.

Key Features:

  • A fully shielded and hand selected RF stage
  • Audio Cap gold plated capacitors with Mundorf Supreme by-pass caps
  • Premium JJ gold pin tubes that we match in house
  • Balanced output

Technical Specifications:

  • Usable sensitivity - Mono: 0.7 uV 9.0 dBf
  • 50 dB quieting – Mono: 2.0 uV 9.9 dBf
  • 50 dB quieting – Stereo: 2.3 uV 25.0 dBf
  • Capture ratio: 1.5 dB
  • Image rejection: 110.0 dB
  • Signal to noise ratio: 80.0 dB
  • Alternate channel – Wide: 40.0 dB
  • Alternate channel – Narrow: 70.0 dB
  • Adjacent channel – Wide: 3.0 dB
  • Adjacent channel – Narrow: 35.0 dB
  • THD – Mono: 0.10 %
  • THD – Stereo: 0.18 %
  • Stereo separation: 50.0 dB
  • AM suppression: 70.0 dB
  • SCA rejection: 80.0 dB
  • IF rejection: 80.0 dB
  • 19 KHz and 38 KHz component rejection: 75.0 dB
  • Audio frequency response (+/- 1 dB): 15 Hz – 17 KHz
  • Balanced audio output (600 ohms): 2.2 V
  • Line audio output (RCA): 1.0 V
  • Line power (Must be specified) 110/220/230/240: VAC
  • Dimensions (inches H.W.D.): 4 x 19 x 15
  • Dimensions (cm H.W.D.): 11.43 x 48.3 x 38.1
  • Weight (lbs./kgs): 18/7.96
  • Power consumption (Typ/Max): 50w/100w

Tube Specifications:

  • Filament current (max): 330 mA (min) 270 mA
  • Anode current (1) (max): 1.07 mA (min) 0.92 mA
  • Anode current (2) (max): 1.07 mA (min) 0.92 mA
  • Total harmonic distortion: < 1.8%
  • Tubes position 1 and 2: MD Reference Silver 6922
