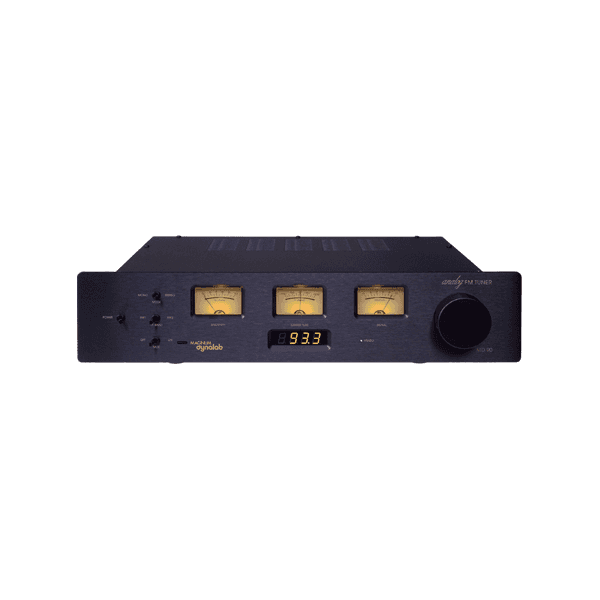

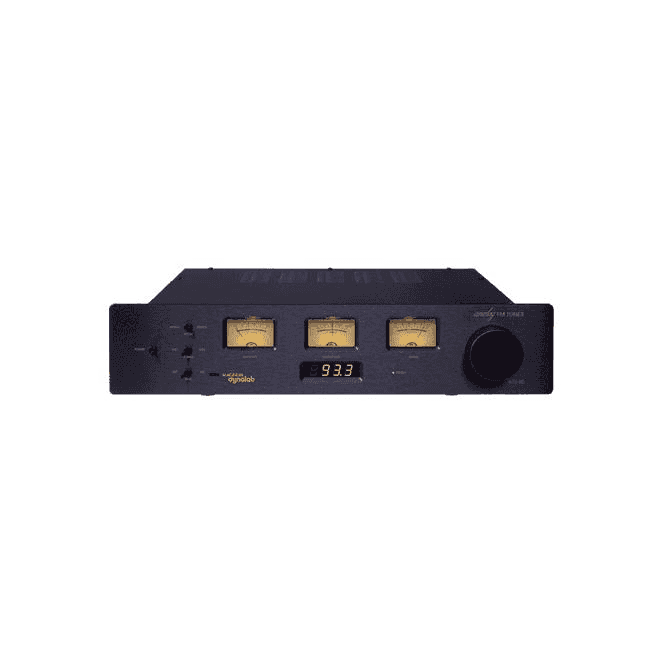

Magnum Dynalab MD90 SE Special Edition FM Tuner

Technical Specifications:

• Usable sensitivity - Mono: 10.3 dBf
• 50 dB quieting – Mono: 13.2 dBf
• 50 dB quieting – Stereo: 34.0 dBf
• Capture ratio: 1.5 dB
• Image rejection: 75.0 dB
• Signal to noise ratio: 75.0 dB
• Alternate channel – Wide: 60.0 dB
• Alternate channel – Narrow: 80.0 dB
• Adjacent channel – Wide: 9.0 dB
• Adjacent channel – Narrow: 25.0 dB
• THD – Mono: 0.10 %
• THD – Stereo: 0.18 %
• Stereo separation: 50.0 dB
• AM suppression: -70.0 dB
• SCA rejection: -80.0 dB
• IF rejection: -80.0 dB
• 19 KHz and 38 KHz component rejection: -75.0 dB
• Audio frequency response (+/- 1 dB): 20 Hz – 17 KHz
• Balanced audio output (600 ohms): 2.2 V
• Line audio output (RCA): 1.0 V
• Line power (Must be specified) 110/220/230/240: VAC
• Dimensions (inches H.W.D.): 4 x 17.75 x 13
• Weight (lbs./kgs): 12/5.45
• Power consumption (Typ/Max): 50w/100w
