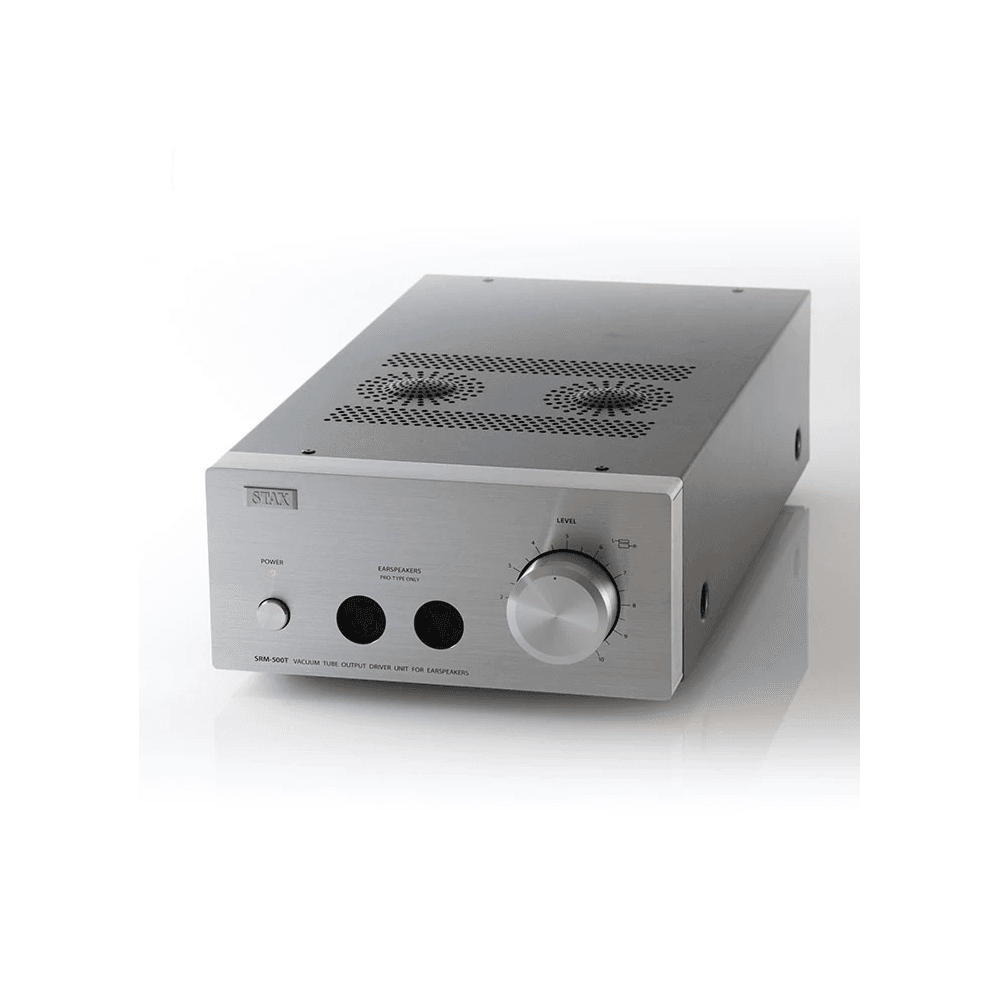

Stax SRM-500T Electrostatic Headphone Amplifier

STAX custom-made low-noise DUAL FET is used for the first stage, and high-voltage double triode 6FQ7 / 6CG7 is used for the output stage. While following the traditional circuit design which is perfect for  STAX vacuum tube drivers, we have improved the efficiency of the power supply and  further improved the sound quality.

In addition to the conventional power transformer for the high voltage circuit, the newly designed power transformer with the winding for the low voltage circuit is installed in SRM-500T. By adopting this low-voltage winding, the efficiency of the power supply has improved, and compared to conventional vacuum tube driver units such as the SRM-006tS, power saving and improved sound quality have been achieved.

Technical Specifications:

• Type: FET + vacuum tube output hybrid DC amplifier configuration / driver unit
• Vacuum tube : 6FQ7 / 6CG7
• Frequency response: DC to 90kHz (when using one SR-L500 MK2)
• Gain: 60dB
• Harmonic distortion rate: 0.01% or less (at 1kHz / 100V r.m.s. output)
• Input impedance: 50kΩ (RCA), 50kΩ x 2 (XLR)
• Maximum output voltage: 300V RMS (1kHz)
• Bias voltage: DC 580V
• Operating ambient temperature / humidity: 0 to 35 ° C / 90% or less (however, no condensation)
• Input: RCA x 1 XLR x 1
• Output: RCA out
• Power consumption: 38W
• Dimensions: 195W x 102H x 376Dmm (including protrusions such as knobs)
• Weight: 3.4kg
• Country of origin: Japan
