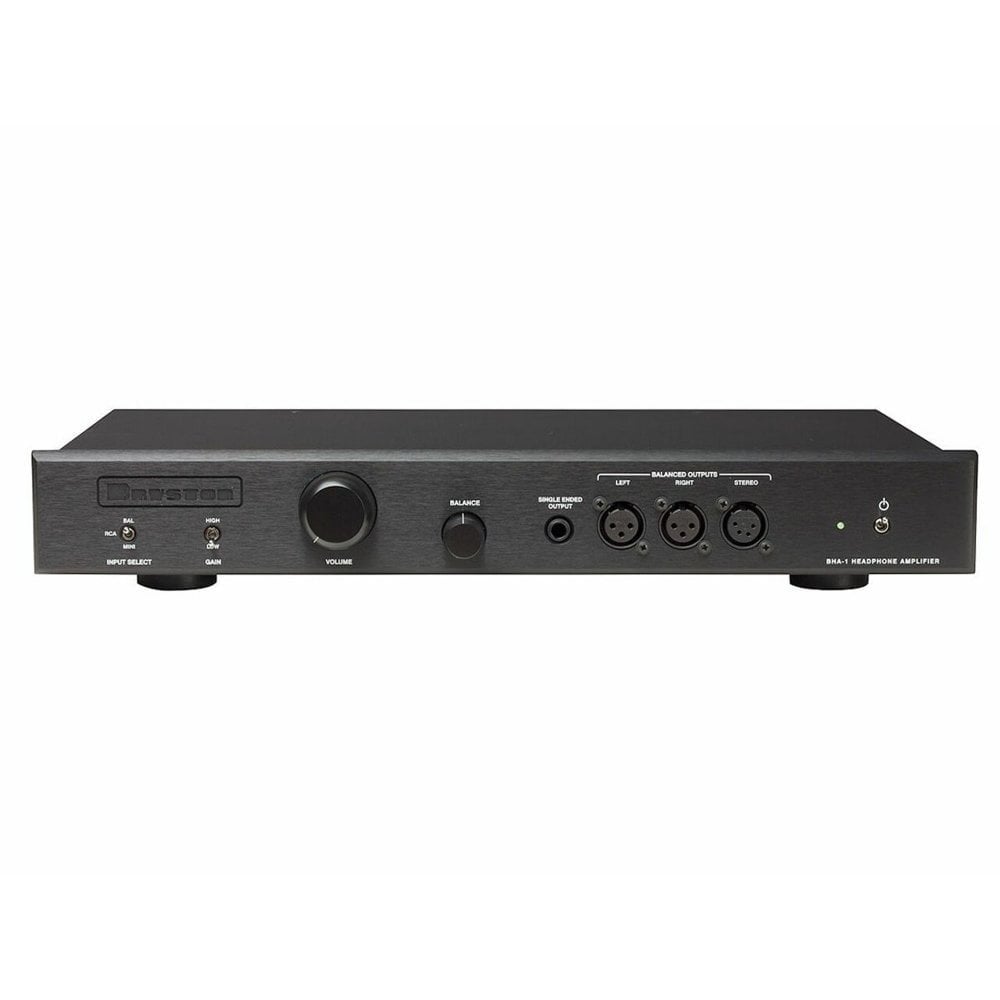

Bryston BHA-1 Headphone Amplifier

Code: BHA-1

£3,000.00
Secure yours with a deposit of
(FREE UK Delivery)
|
|

Usually dispatched within 24 hours

Please Note: This item cannot be ordered online. If you are interested, please click on the 'Enquire' button above.

Advancing our tradition of unmatched audio performance and functionality, the BHA-1 Balanced Headphone Amplifier is Bryston's reference amplifier solution for the finest listening experience from your headphones. The BHA-1 is compatible with both traditional (single-ended) and balanced headphones.

Add To Compare

Product Description
Delivery

Key Features:

Balanced outputs
Balanced dual mono circuitry
Left/Right balance control
Six fully discrete Class A Bryston operational amplifiers
14dB or 20dB gain
10k input impedance
High quality noble stereo volume control (laser trimmed)
Gold plated input and output connectors
Multiple headphone drive capability

Technical Specifications:

2 Ohms output impedance for each op-amp driver.
Inputs: Balanced XLR Pair, Single Ended Pair (RCA), 3.5mm Stereo Mini Jack (MP3 Player Source, etc.)
Outputs: Balanced XLR (4 Pin Stereo), Balanced XLR Pair (3 Pin Left/Right), ¼" Headphone Jack
Control: Remote Trigger Input (5 - 12V AC/DC @10mA)

Load at 600 Ohms:

Hi - 10.9V Out @ 001% Power 200 mW
Lo - 5.45 V Out @ 001% Power 50 mW
Lo - 2.50 V Out @ 001% Power 10 mW
Lo - 788 mV Out @ 001%¹ Power 1 mW

Load at 300 Ohms:

Hi - 10.8 V Out @ 001% Power 390 mW
Lo - 5.40 V Out @ 001% Power 50 mW
Lo - 1.79 V Out @ 001% Power 10 mW
Lo - 583 mV Out @ 001%¹ Power 1 mW

Load at 80 Ohms:

Hi - 10.4 V Out @ 002% Power 1.35 W
Lo - 5.20 V Out @ 001% Power 383 mW
Lo - 887 mV Out @ 001% Power 10 mW
Lo - 345 mV Out @ 003% Power 1 mW

Load at 32 Ohms:

Hi - 9.65 V Out @ 0.150% Power 2.9 W²
Lo - 4.84 V Out @ 002% Power 732 mW
Lo - 578 mV Out @ 001%¹ Power 10 mW
Lo - 185 m V Out @ 005%¹ Power 1 mW
Lo - 4.00 V Out @ 001% Power 500 mW³

Physical:

2.75" (2" W/O feet) H x 17" W x 12.25" D (17" faceplate)
69.85mm (50.8mm W/O feet) H x 431.8mm W x 311.15mm D (431.8mm faceplate)
2.75" (2" W/O feet) H x 19" W x 12.25" D (19" faceplate)
69.85mm (50.8mm W/O feet) H x 482.6mm W x 311.15mm D (482.6mm faceplate)
13.25 Ibs
