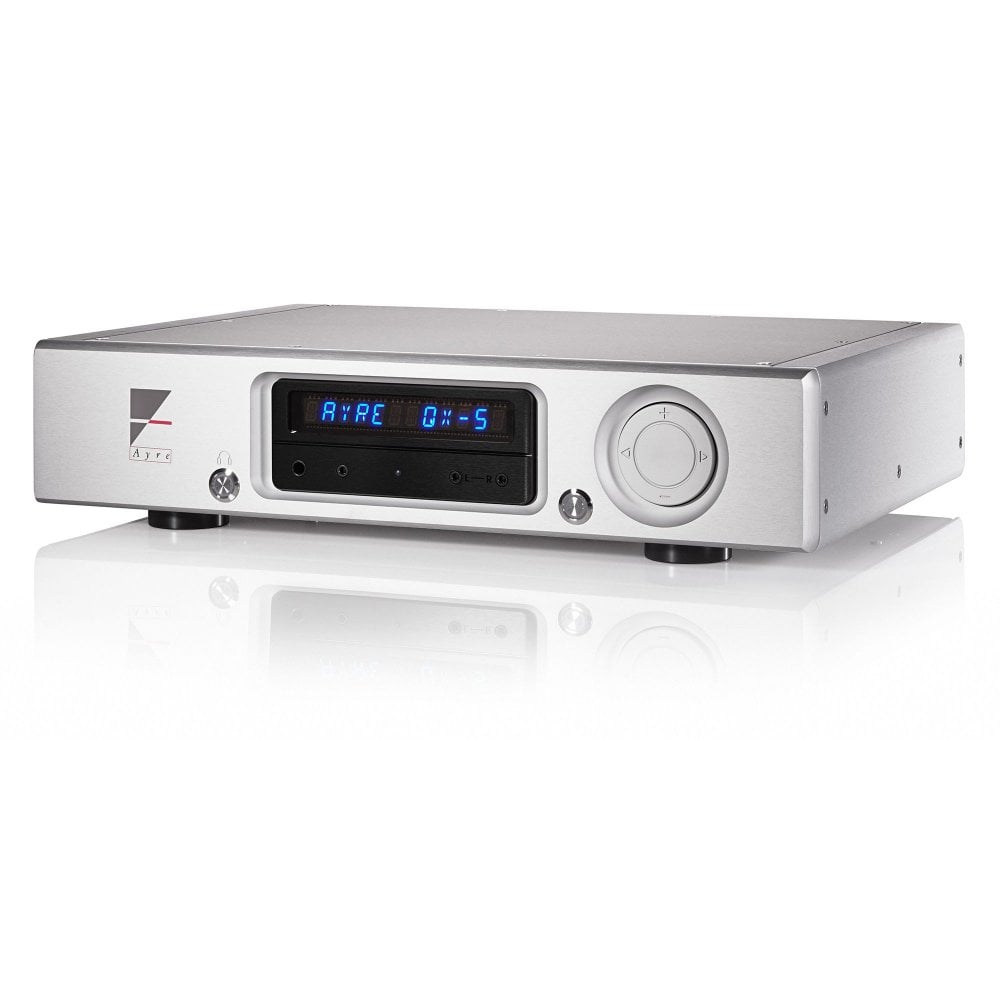

Ayre QX-5 Twenty Digital Hub/DAC/Headphone Amplifier

In today’s digitally-connected world you need more than just a DAC or a streamer. You need a device that can effortlessly render your highest resolution files and, without missing a beat, play your favorite online streaming services or BBC broadcast. Featuring the new ESS ES9038PRO DAC chip and a new jointly-developed doubly-rotated Morion quartz crystal-based oscillator, The QX-5 Twenty elevates digital performance to an astonishing level.

Key Features:

• Zero-feedback
• Fully-balanced discrete circuitry
• Ayre’s Asynchronous S/PDIF input
• ESS ES9038PRO DAC chip
• Ayre & Morion jointly-developed crystal oscillator
• Ayre’s Minimum Phase digital filter
• Single-pass 16x oversampling
• Ayre’s Diamond output stage
• Ayre’s exclusive Equilock circuit
• 100 step digital volume control
• Linear analog power supply
• High-speed circuit board material
• Ten digital inputs: Ethernet, Asychronous USB, AES/EBU (2), Optical (3), S/PDIF (3)
• Ayre Conditioner power line RFI filter
• AyreLink communication system

Technical Specifications:

• Audio Inputs: USB: 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / PCM 16, 20, 24 bits / DSD64 and DSD128 (as DoP)
• Optical/SPDIF/AESEBU: 44.1, 48, 88.2, 96, 176.4, 192 kHz / PCM 16, 20, 24 bits / DSD64 (as DoP)
• Network: 44.1, 48, 88.2, 96, 176.4, 192 kHz / PCM 16, 20, 24 bits / DSD64 (as DoP)
• Line Output: 4.5 Vrms balanced, 2.25 Vrms single-ended
• Headphone Output: 9.0 Vrms balanced, 4.5 Vrms single-ended
• XLR Input Polarity: Pin 1 = Ground / Pin 2 = Non-inverting (Positive) / Pin 3 = Inverting (Negative)
• Power Consumption: 60 watts in operating mode
• Dimensions: 17.25″ W x 13.00″ D x 3.75″ H (44cm x 33cm x 10cm)
• Weight: 16lbs (7.25kg)
