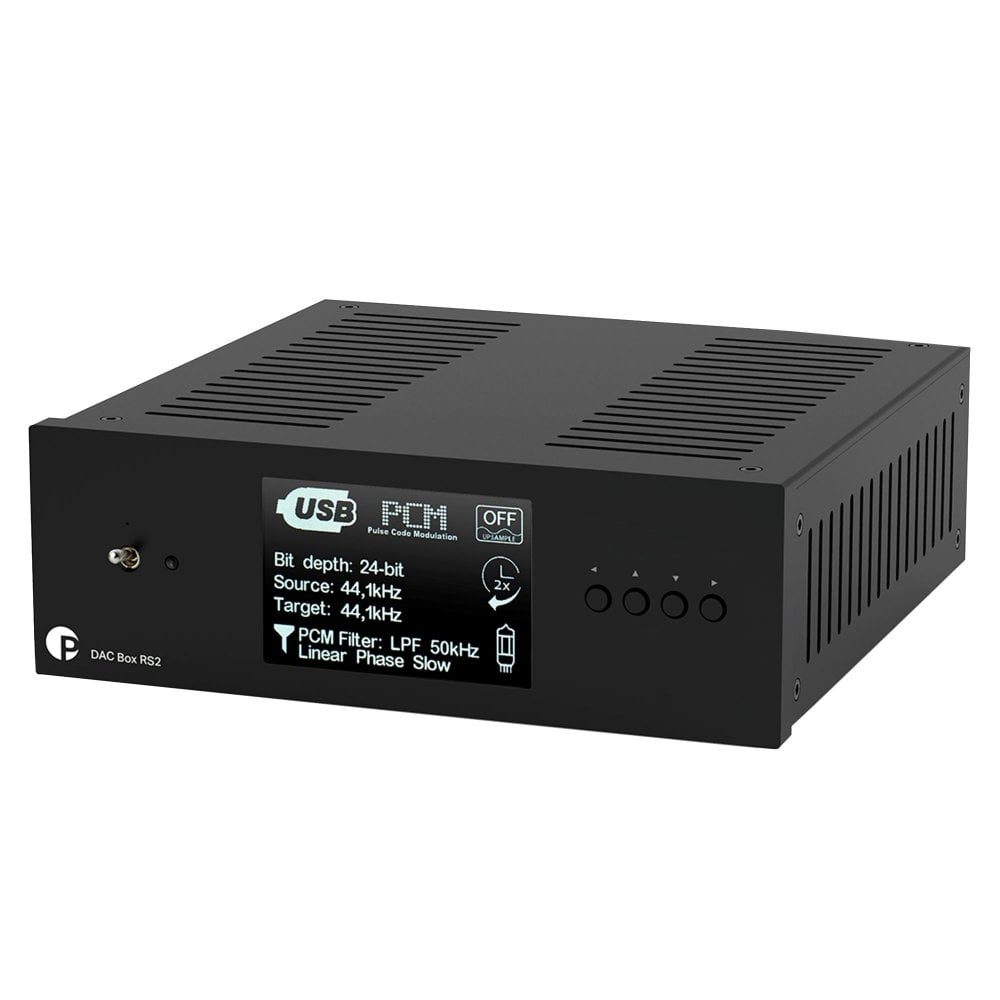

Pro-Ject Box Design DAC Box RS2 DAC

The DAC Box RS2 features a very sophisticated digital stage, with a dual-mono configuration of the high-class ESS Sabre ESS9038Q2M DAC chips, featuring upsampling technology. Unlike most other designs, it boasts dual DAC chips and separate signal paths for the left and right channels. This allows for the finest conversion possible and support for digital transmission up-to 32-bit / 768kHz PCM and DSD512 over USB. There's also full authorisation and hardware/software support for Master Quality Authenticated (MQA) audio files, and Roon Tested certification for quick integration into a Roon-based system. To handle all this complexity, the DAC Box RS2's USB input is processed by a powerful multi-core XMOS microcontroller with advanced Multi-Core RISC architecture. The CPLD MAX II (Complex Programmable Logic Device) Altera is used for re-clocking, which together with the XMOS microcontroller brings high-quality processing of both traditional and MQA source material.

Technical Specifications:

• DAC: X2 ESS9038Q2M (dual mono - 32bit/768kHz/DSD512) with 8 different digital filter settings
• Digital Inputs: 1 x USB 2.0 Audio 32/768 + DoP and Native-DSD up to DSD512 / 1 x HDMI I2S for CD Box RS2 T / 2 x S/PDIF optical 24/192, 1 x S/PDIF coaxial 24/192 / 1x AES/EBU balanced 24/192
• MQA Support: Full MQA unfolding by hardware
• Line-level Input: 1 pair XLR / 1 pair RCA
• Output Impedance: 180Ω solid state, 220Ω tube
• Analogue Outputs: Fixed Outputs (XLR & RCA pairs)
• THD+N (20Hz - 20kHz): < 0.0008% solid state/0.001% tube @ 2V RMS, 1kHz
• Bluetooth Version: Fully embedded Bluetooth® v4.0
• Bluetooth Codecs: SBC, AAC and AptX
• Output Buffer: Discrete and balanced, tube and solid state
• Tubes: 4 x 6922EH
• Power Supply: 20V / 3A DC
• Power Consumption: Max. 1.2A DC (< 0.5W in Standby)
• Dimensions (W x H x D): 206 x 72 x 222 mm
• Weight: 1520g without power supply
