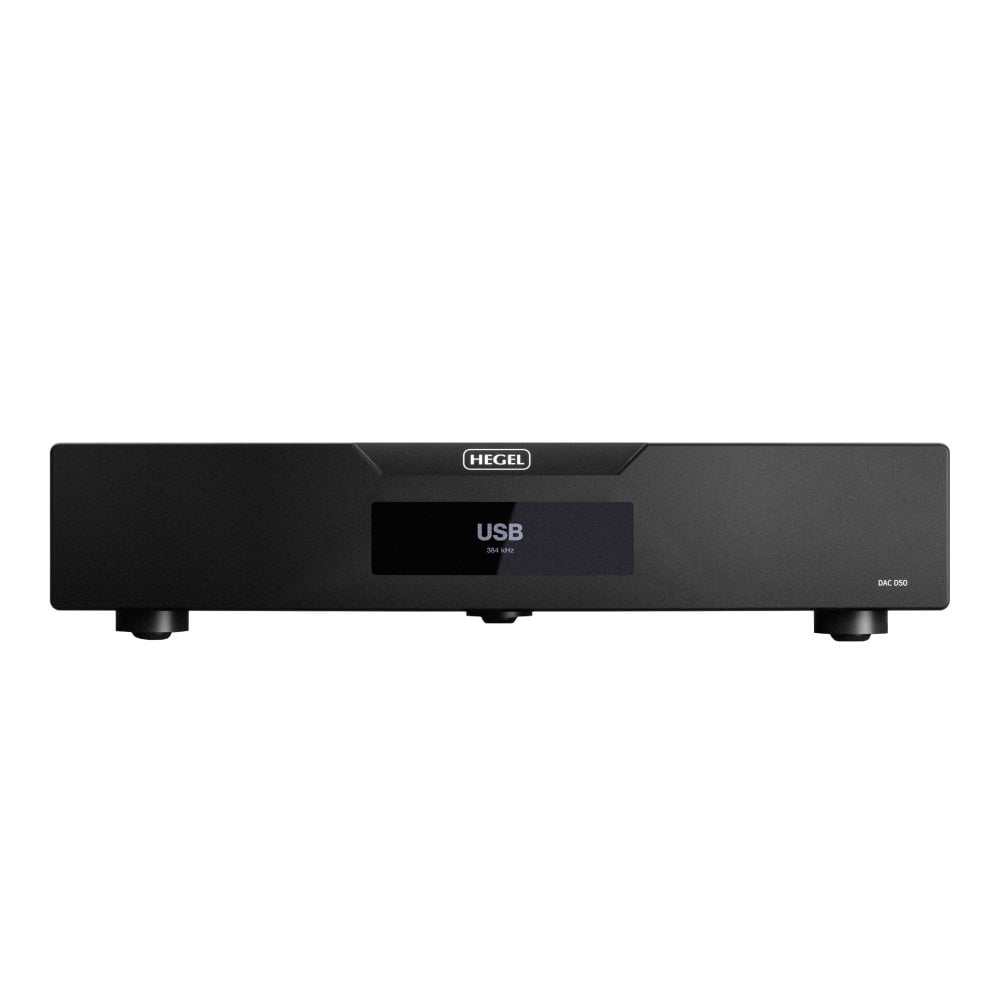

Hegel D50 DAC

Hegel has spent over two decades refining the art of DAC design, and the D50 stands as the crowning achievement of that expertise. At its heart is the latest DAC chip—an advanced piece of technology with incredible potential. But, like the raven, one of the few creatures able to use tools with such precision, the D50’s brilliance lies in how it harnesses this power. Every element of the circuit design and layout has been meticulously optimised to unlock the full capability of the DAC chip, elevating it from a simple component to a masterful instrument. The result is a design that brings the chip's potential to life, delivering exceptional sound reproduction.

The D50 goes to extraordinary lengths to preserve the purity of its audio output. Its power management system is crafted to eliminate noise, ensuring clean energy flows to every part of the device. Advanced filters at the power input eliminate disturbances from the mains, and when connected to a grounded outlet, this filtration can even improve the performance of other devices on the same circuit. To further combat electrical noise, the D50 employs two low-noise toroidal transformers. One powers the noisier digital processes and standby functionality, while the other is dedicated to the sensitive analog and digital components. Both transformers are shielded by thick steel and positioned away from sensitive electronics, with their outputs also filtered to ensure the purest power. This attention to detail allows the D50 to perform at its peak, with power that supports its incredible audio capabilities.

At Hegel, we approach circuit board design with uncompromising precision, and the D50 is no exception. Even the routing features rounded corners to minimise impedance drops and reduce radiation. But the real innovation is in how the D50 processes incoming digital signals before they are converted to analog. The AES/EBU input employs a unique RS422 receiver balanced by a transformer, allowing it to flawlessly handle both weak and strong signals, free of jitter and time delays.

For SPDIF-based inputs, the signals are received on a custom-designed card that extracts I2S data. While this process is typically noisy and prone to timing errors, the D50 addresses these challenges with precision. The decoded signals are re-clocked using three dedicated master clocks—one for SPDIF signals, and separate clocks for 48k and 44.1k sample rates for USB. These clocks are strategically positioned to minimise noise, ensuring the DAC chip receives a perfectly timed signal and allows for the most accurate digital-to-analog conversion.

The DAC chip itself is carefully placed on a separate board above the other electronics. This elevated position reduces interference and noise while keeping the signal path short and unobstructed. Every design choice in the D50 is engineered to preserve the integrity of the original signal, ensuring an unaltered, extraordinarily accurate translation from digital to analog.

The D50’s construction is as purposeful as it is sturdy. Its aluminium housing offers both durability and a sophisticated appearance while enhancing sound quality. Premium connectors guarantee reliable performance, and the aluminium feet with rubber soles ensure stability. The thick, milled aluminium front plate elegantly hides the buttons, creating an uninterrupted, refined look, while a bright, easy-to-read display provides the necessary information without distracting from the music.

Though the D50 operates with the precision of a finely tuned instrument, using it is effortless. Its advanced input sensing detects a digital signal and wakes the device automatically. You can customise how it responds to incoming signals, whether switching inputs or simply powering on. Features like automatic standby save energy when the music pauses, while an adjustable display dimming option ensures that the focus remains on the music. Once set up, the D50 seamlessly integrates into your system, ready to bring your music to life with no distractions.

The D50 offers a wide array of connectivity options, including USB, optical, coaxial RCA, coaxial BNC, and AES/EBU inputs. On the output side, it provides true balanced analog and single-ended RCA connections, ensuring compatibility with any audio setup. Its versatile inputs and outputs make the D50 an ideal fit for any environment.

Inspired by clarity and precision, the D50 decodes the complexities of digital audio with exacting accuracy. Its innovative design transforms raw data into music that’s rich in detail, free from noise, and true to the original recording. No detail is added or lost—just pure, accurate sound reproduction.

The Hegel D50 DAC represents the pinnacle of digital-to-analog conversion, delivering music as it was meant to be heard—pure, detailed, and profoundly moving. Let it elevate your listening experience to new heights.
