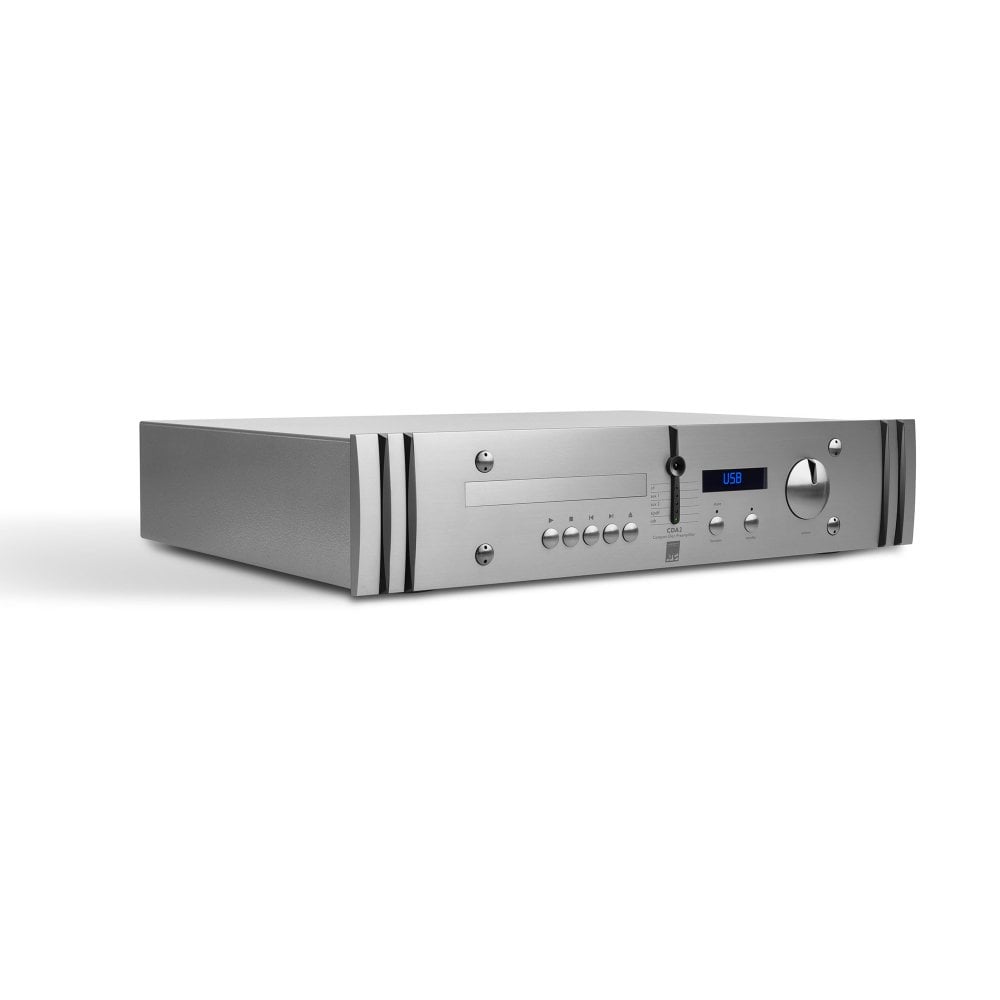

ATC CDA2 CD Player DAC Preamplifier

ATC CDA2 CD Player DAC Preamplifier

Code: ATC-CDA2
  • £3,100.00
  • (FREE UK Delivery)
Usually dispatched within 24 hours
Loading...
Trade In

Please Note: This item cannot be ordered online. If you are interested, please click on the 'Enquire' button above.

Combining very high performance and versatility, the CDA2 combines a CD player, pre-amplifier and high-resolution DAC within a compact and elegant chassis.  Acting as the source or combined with a streamer and/or external phono stage, it can partner with active speakers to form an exceptional system with minimal ‘box-count’. Alternatively, the CDA2 can combine with a power amplifier such as the ATC P2 to drive passive loudspeakers with stunning results.

Key Features:

  • All-discrete class-A pre-amplifier with balanced and unbalanced outputs.
  • Two analogue inputs via RCA/phono and one via 3.5mm mini-jack.
  • High performance CD Player.
  • Premium AKM 32-bit DAC.
  • USB digital input supporting up to 384kHz PCM data and native DSD256.*
  • Headphone amp featuring discrete output stage.
  • Roon Tested Certification
  • Handmade in England.
  • 6 year warranty.**

*DSD256 support via PC only (up to DSD128 via Mac).
** TWO years on CD mechanism.

Ask A Question
Tell A Friend
Add To Compare

CD Player Specifications:

  • THD: < 0.0015% / -96dB (1kHz re. 2V out)
  • Frequency Response : +/- 0.2dB  (20Hz–20kHz)

DAC Specifications:

  • Digital Inputs: 1 x TOSLINK, 1 x Coaxial, 1 x USB Audio
  • Distortion: <0.001% at all supported sample rates
  • Supported Formats TOSLINK: Up to 24/96 PCM
  • Supported Formats Coaxial: Up to 24/192 PCM
  • Supported Formats USB: Up to 32/384 PCM / Up to DSD256 via Windows/Linux / Up to DSD128 via Mac.
  • Dimensions: 94 x 449 x 327mm /3.7 x 17.7 x 12.9 inches (H x W x D inc. chassis connectors)
  • Weight: 6.35kg / 13.97lbs

Preamplifier Specifications:

  • Frequency Response: < 2 Hz – > 280 kHz (-3dB)
  • Distortion: <0.0008% / 102dB (1kHz)
  • S+N/N Ratio: >112dB (IEC ‘A’)
  • Crosstalk: < -80dB (20Hz – 20kHz)
  • Input sensitivity: Aux inputs 600mV, 3.5mm inputs 400mV (re. 2V out)
  • Maximum Output Level – Balanced XLR: 18.4V r.m.s. (600 ohms)
  • Maximum Output Level – Un-Balanced: 9.2V r.m.s (600 ohms)
  • Analogue Pre-Amp Outputs: 1 x balanced stereo pair via XLR, 1 x unbalanced stereo pair via RCA/Phono
  • Headphone Amp Outputs: 1 x via 6.35mm jack
  • Analogue Inputs: 2 x stereo pairs via RCA/Phono, 1 x via 3.5mm jack
