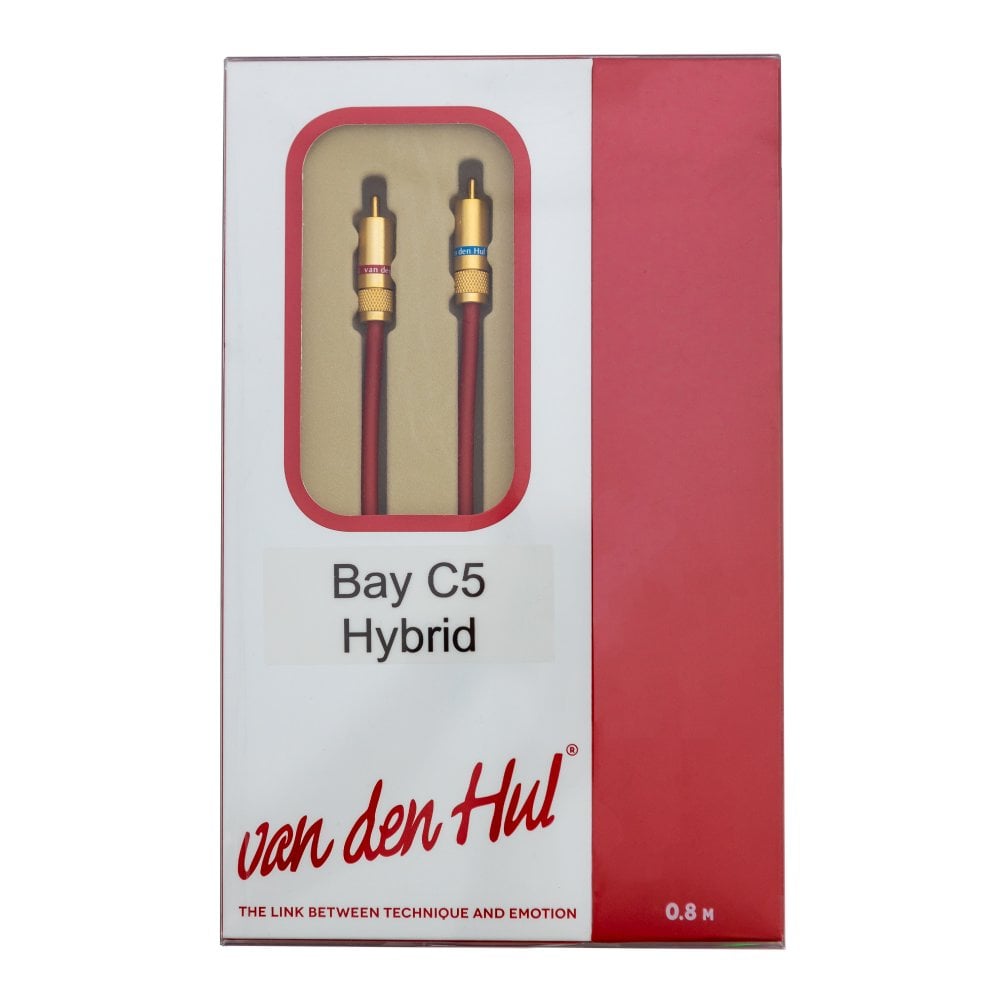

Van den Hul The Bay C5 RCA-RCA Interconnect

Van den Hul The Bay C5 RCA-RCA Interconnect

Code: B03BA0
  • From £150.00
  • (FREE UK Delivery)
Usually dispatched within 24 hours
Loading...

Due to the large success of Van Den Hul's Patchbay B5 in its use as a general purpose audio interconnect, they have introduced the Bay C5 Hybrid - The coaxial (unbalanced) hybrid version of their balanced Patchbay B5.

Key Features:
  • The coaxial construction is made with a centre conductor consisting of 40 x 0.12 mm. strands exhibiting an effective cross section area of 0.452 mm² (AWG 20.6) and a resistance of 3.8 Ohm/100 meter
  • The centre conductor is coated with a layer of LSC and is insulated with foamed polyethylene
  • The cable capacitance is 110 pF/m
  • The double screen is made of a 16 x 6 x 0.12 mm. stranded braid with a Linear Structured Carbon® saturated layer underneath to further close the cable against HF signals and to dramatically improve the signal quality.
  • The total resistance of the screen is 1.6 Ohm/100 metre
  • The external 5.2 mm. diameter jacket is made of red colored Hulliflex® 4, a material with superior properties to PVC
  • Hulliflex® gives the Bay C5 Hybrid a very long life span without any ageing effects
Ask A Question
Tell A Friend
Add To Compare
Low priced and exhibiting an excellent price-to-performance ratio the Bay C5 Hybrid has been specially designed for general purpose and car hi-fi interlink applications. The Bay C5 Hybrid however is also perfectly suited for internal (pre)amplifier and mixing console wiring applications and as an unbalanced patchbay interconnect.

The design combination of a superior transmission quality, a low conductor-conductor capacitance, a very high screening factor together with a high mechanical flexibility and a long durability, though difficult, has been successfully achieved.

The high quality conductor material used in this cable is large crystal OFC with a dense silver coating.
The Bay C5 Hybrid furthermore has been fully equipped with Linear Structured Carbon® (LSC) saturated layers which are standard in Van Den Hul's more expensive cable products. These layers dramatically improve transparancy and imaging. By electrically bridging any metal cystal defects a stable conductivity at the lowest signal levels can be obtained.

Technical Specifications:
  • Material: Hybrid
  • Product Category: Car hifi - Interconnect / Interconnect - Unbalanced, Analogue, Entry-level / Internal wiring
  • Cable Type: Coaxial
  • Conductor Material: HYBRID: Large Crystal OFC with a dense silver coating + Linear Structured Carbon® saturated layer(s)
  • Design Purpose: General purpose and car hi-fi interlink / Internal (pre)amplifier and mixing console wiring / Unbalanced patchbay interconnect
  • Eff Conductor: Core: 0.452 mm² / Core: AWG 20.6 / Core: 40; Screen: 96
  • External Diameter: 5.2 mm
  • Jacket Colors: Red
  • Resistance: Core: 3.8 Ohm/100 m; Screen: 1.6 Ohm/100 m
  • Capacitance: 110 pF/m
  • Insulation: Core: PE foam; Jacket: Hulliflex® / 300 Vrms min
  • Connector Types: RCA type C - 5.5
