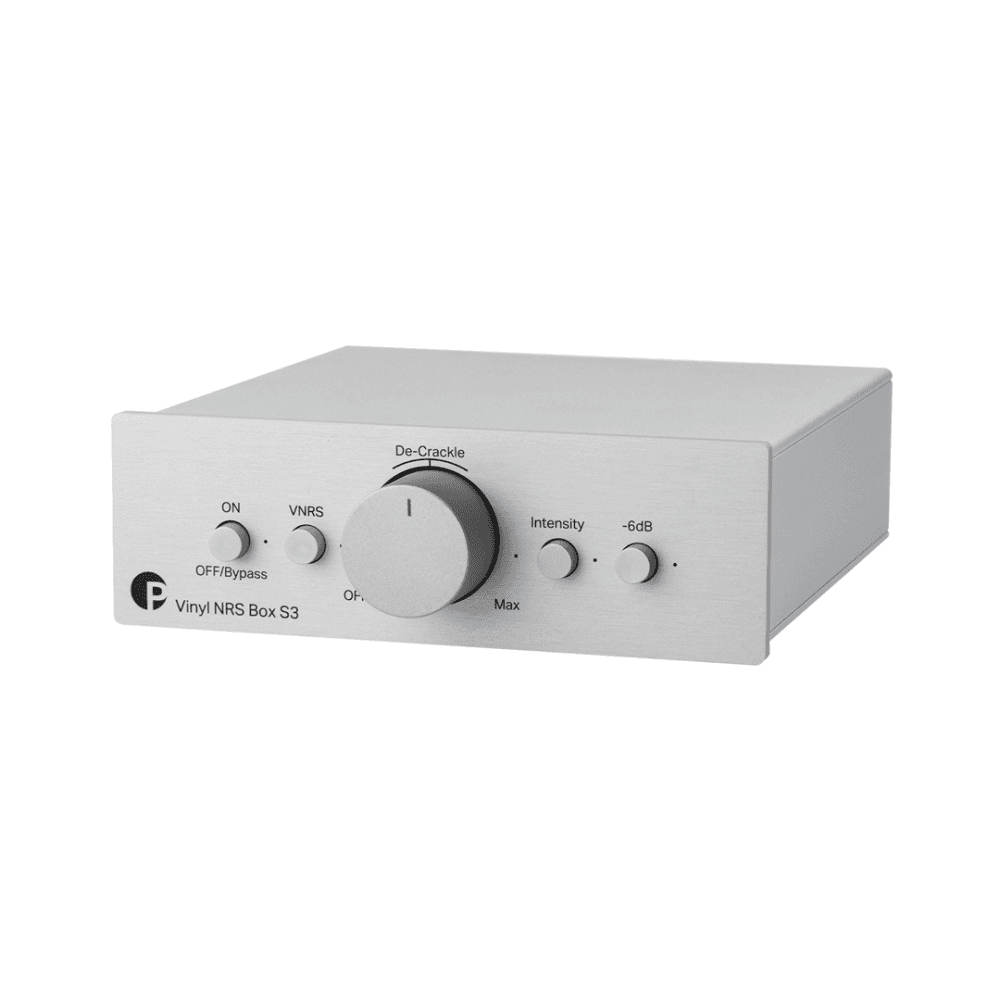

Pro-Ject Box Design Vinyl NRS Box S3

To use the Vinyl NRS Box S3, it needs to be connected to a turntable system via its Line Level input, so it only works after the phono stage in the signal path. Once connected, it should simply be switched on and the “De-Crackle” function will initiate. The strength of this process can be tuned using the front-mounted dial and can even be increased further by clicking the Intensity button. Separately, the Vinyl Noise Reduction System can be started with a push of the VNRS button, dramatically reducing vinyl surface noise and turntable motor noise.

Thanks to its sophisticated digital signal processing algorithms, the Vinyl NRS Box S3 first converts the analogue music to a high resolution 24-bit / 96kHz digital format for minimal signal loss, and then separately initiates each process – depending on the current settings and the position of the De-Crackle dial. This allows you to run one or both processes at the same time. For times when the input signal is too high, the -6dB switch allows for the original signal to be attenuated before passing to the digital stage.

Technical Specifications:

• Operation: Line Level
• Input Voltage, typically: 300-500 mVrms
• Max. input voltage (clipping): 4.4Vpp, 1.55Vrms
• Clip indication: -0.6dB below real clipping
• Internal sampling and calculations: 96 kHz/24 bits
• Internal processing: 56-bit accumulator
• Inputs: 1 x RCA Pair (Line Level)
• Outputs: 1 x RCA Pair (Line Level)
• THD: <0.017% (1500 mVrms Input Level)
• Frequency Response Characteristics: 20Hz – 20kHz: -0.6 / +0.1dB 30Hz – 20kHz: -0.2 / +0.1dB
• De-Crackling Reduction: 5dB (3kHz – 20kHz) 8dB (2kHz – 20kHz)
• VNRS Reduction: Up-to 6dB (20Hz – 20kHz)
• Galvanic Bypass: < 0.3Ω
• Dimensions w x h d: 103 x 37 x 125mm (including sockets)
• Finish options: Silver & Black
