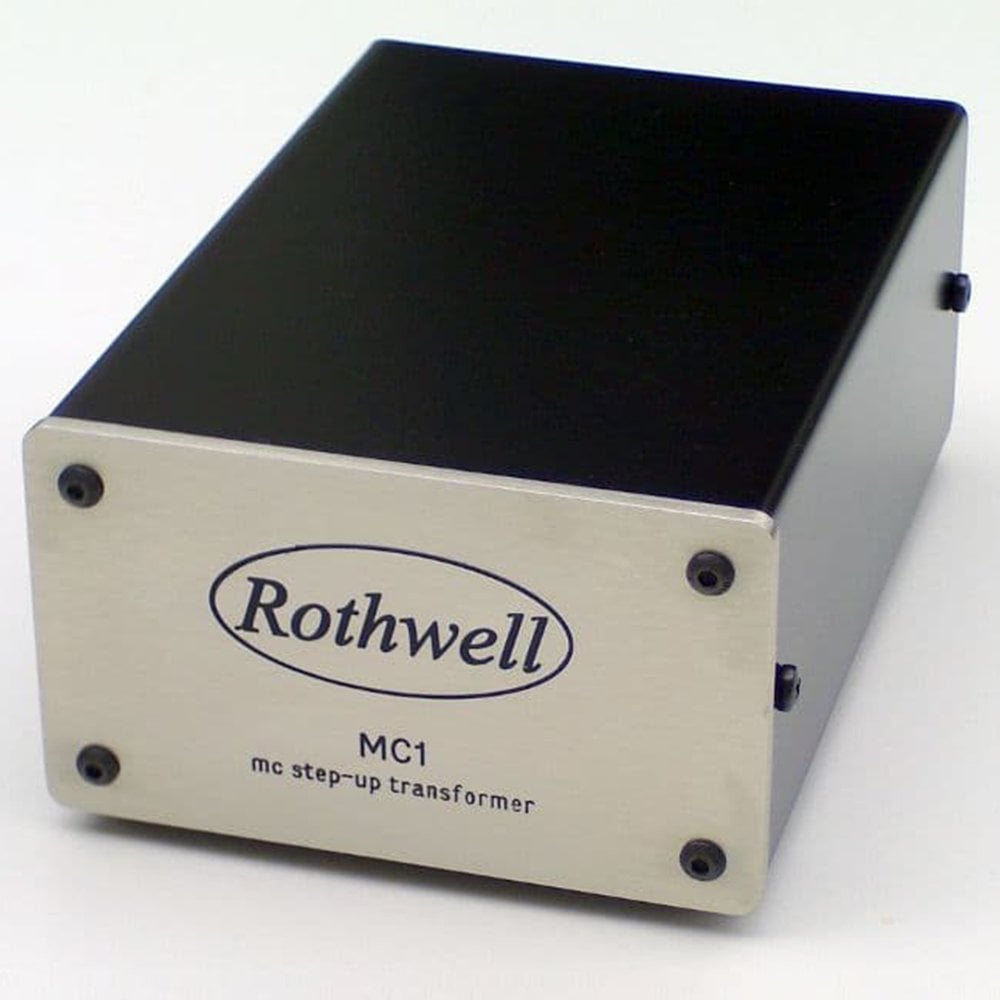

Rothwell Audio MC1-H Moving Coil Step-Up Transformer

Any high output mc cartridge with an output voltage in the range 0.8mV to 1.8mV will benefit from an increased signal level and improved signal-to-noise ratio when used with the MC1-H.

Cartridges in the range 1.8mV to 2.5mV may also benefit from the MC1-H.

Technical Specifications:

• Turns Ratio: 1:3.2
• Voltage Gain: 10Db (X3.2)
• Input Impedance: 400 Ohms
• Optimum Load Impedance: 47k + 150pF
• Bandwidth: 5Hz - 36kHz (+0/-3dB)
• Cartridge Compatibility (o/p): 0.8mV - 1.8mV (ideal) / 1.8mV - 2.5mV (acceptable)
• Cartridge Compatibility (imp.): Internal Impedance <200 ohms
• Dimensions: 60 x 155 x 92 mm
• Weight: 580g
