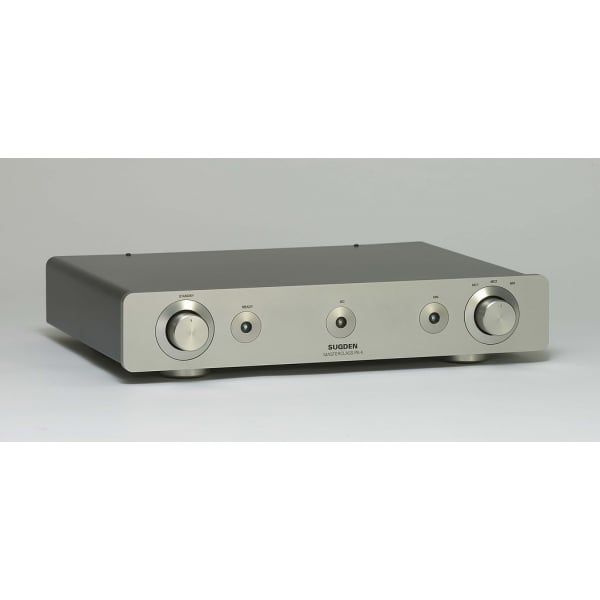

Sugden Masterclass PA-4 MM/MC Phono Preamplifier

Code: SUGDEN-MC-PA-4

£2,794.00
Secure yours with a deposit of
(FREE UK Delivery)
|
|

Usually dispatched within 24 hours

This item cannot be ordered online. If you are interested please click on the Ask a Question button below.

The PA-4 is one of the most rewarding phono amplifiers available at real world prices helping you to enjoy your prized record collection for years to come. The PA-4 comes fully loaded with two MC inputs, an MM input and infinite loading options as it can be factory set to match your cartridge exactly.

Add To Compare

Product Description
Delivery

This item cannot be ordered online. If you are interested please click on the Ask a Question button below.

Vinyl is a passion for some people and that includes the designers at Sugden Audio. It is capable of the very finest musical experience creating a unique presence and atmosphere.

The moving coil stage is a Class 'A' current feedback circuit and the moving magnet amplifier a Class 'A' voltage feedback circuit incorporating the RIAA correction in the negative feedback loop. DC servo circuits enable direct coupling of the musical signal from moving coil input to final output. The power supply, which Sugden considers an integral part of the amplifier circuitry, is a 'current shunt' design with a specially designed voltage regulator to prevent rising impedance with higher frequencies. Constructed with components of exceptional quality, hand assembled on long-term stability gold plated circuit boards; the resultant performance is a phono stage of absolute transparency and natural sound.

Technical Specifications:

Inputs: Two moving coil, moving magnet
Outputs: Two line level
Loading: MC1 and MC2
Front Panel Controls: MC1, MC2, MM selector, standby, input indicator
Output: 360mV
Input Sensitivity: Moving magnet 3.5mV / Moving coil 0.15mV
Loading: Moving magnet 57K / Moving coil 470 & 100 Ohms
Frequency Response: +/-0.3dB 30Hz-30kHz
Signal to Noise: >70dB
Gross Weight (packed): 6kgs
Dimensions: 110 x 430 x 330mm (hwd)
