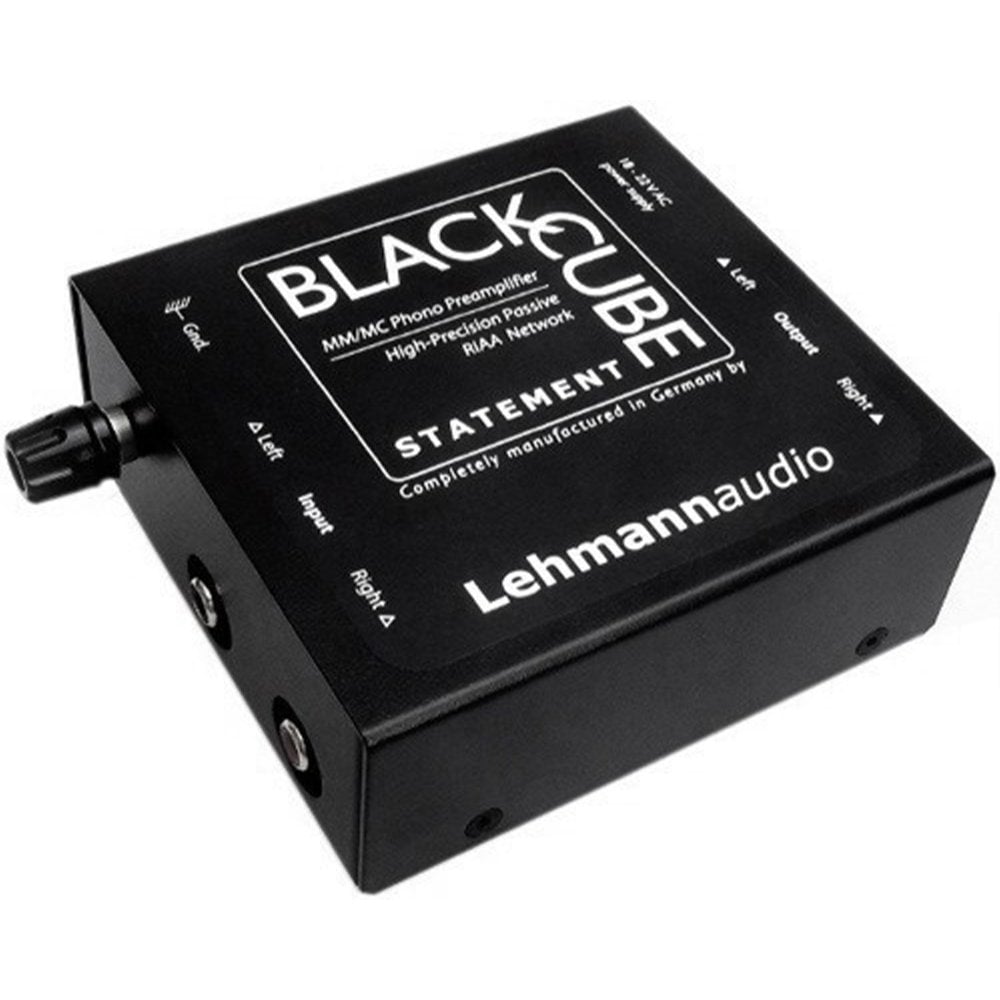

Lehmann Audio Black Cube Statement MM/MC Phono Preamplifier

Code: LBCSTAT

£359.00
Secure yours with a deposit of
(FREE UK Delivery)
|
|

Usually dispatched within 24 hours

The Lehmannaudio Black Cube Statement has been introduced to set standards again. Since the market introduction in 1995 the Black Cube phono stages by Lehmannaudio have become cult objects for analog oriented music lovers. Countless positive reviews and awards on all five continents as well as an unrivalled customer satisfaction worldwide document this truly exceptional success.

Add To Compare

Product Description
Delivery

The Lehmannaudio Black Cube Statement phono stage is compatible with practically all available cartridges on the market from high output MM to MC. Apart from the standard switch settings there is one onboard slot that can be fitted with a custom impedance to supply perfect termination even for the most exotic cartridges.

The Black Cube Statement uses a double sided circuit board and comprises audiophile Burr Brown gain stages. The entirely passive RIAA equalization network is realized with high precision foil capacitors, for bass coupling even MKPs are used! Only Low ESR electrolytic caps are used throughout the circuit. All resistors are of the low noise metal film variety. The DIP-switches for gain and load settings have gold plated contacts. Power is provided through an external over dimensioned AC adaptor.

Lehmannaudio always pays special attention to details: the case of both the audio section is made of non-magnetic material (aluminium) and is equipped with a top cover coated with a special anti-resonance treatment.

Technical Specifications:

Sensitivity: (Output 775 mV/0 dB) MM: 7.4 mV/1 kHz / MC: 0.74 mV/1 kHz
Maximum Input Level: MM: 58 mV / MC: 5.6 mV
Gain at 1kHz: MM: 41 dB / MC: 61 dB
Signal to Noise Ratio: MM: 78 dB / MC: 57 dB
Channel Separation: > 85 dB at 10 kHz
Input Capacitance: 100pF
Input Impedances: 47 kΩ, 1kΩ, 100Ω (Switchable) / 1x Custom Load
Output Impedances: <100Ω
RIAA Filter: Passive Equalization (Between Two Linear Gain Stages)
Soft Bass Roll-Off: 6dB/oct. at 60Hz Jumper Activated
Channel Mismatch: Typ. 0.5dB
Bass Filter: 50 Hz, 6 dB/oct.
Power Consumption: app. 1VA
Dimensions: 103 x 108 x 45mm
Weight: 280g
