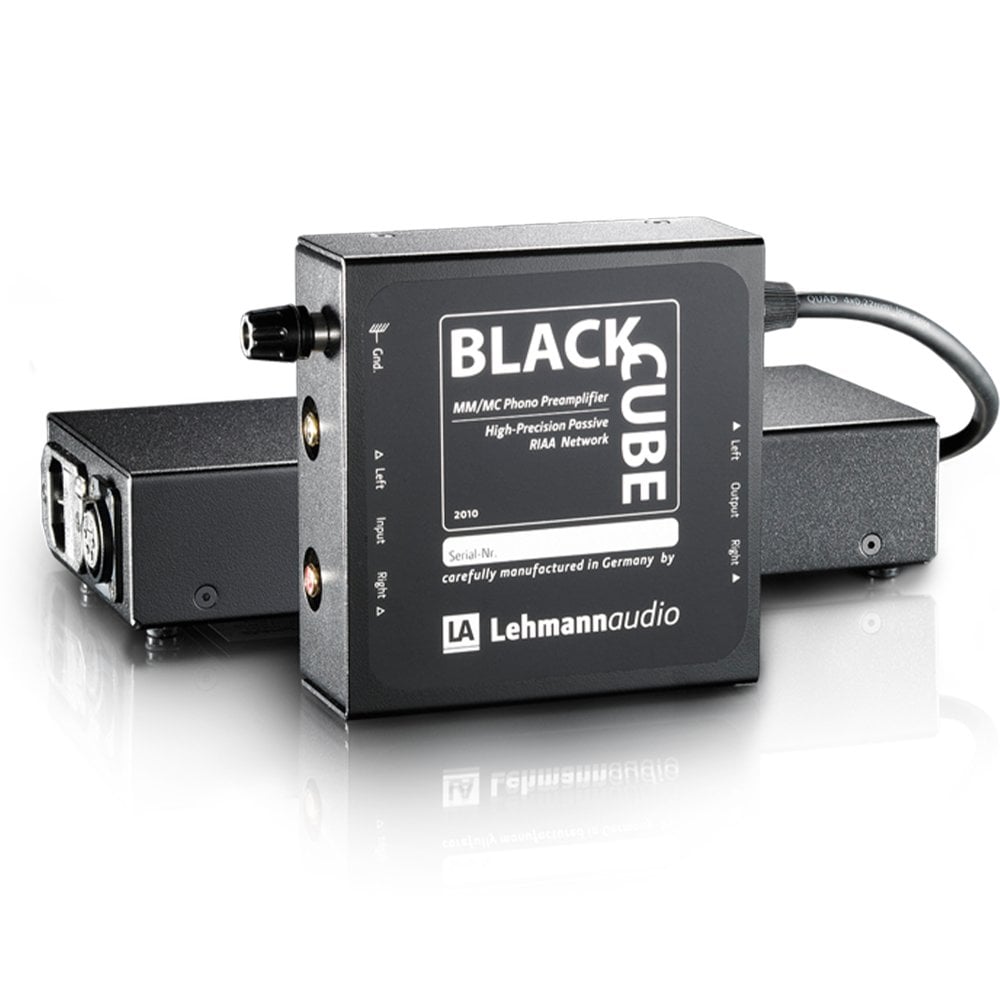

Lehmann Audio Black Cube SE MM/MC Phono Preamplifier

The Lehmannaudio Black Cube SE phono stage is compatible with practically all available cartridges  on the market from  High Output MM to MC. Apart from the standard switch settings there is one onboard slot that can be fitted with a custom impedance to supply perfect termination even for the most exotic cartridges. No more need for expensive impedance plugs!

The input stages used in the Black Cube SE can also be found in top notch mixing consoles or in well known professional  microphone preamps. The entirely passive RIAA equalization network is realized with high precision foil capacitors. All resistors are of the low noise metal film variety. The switches for gain and load settings have gold plated contacts.

Because of the small outer dimensions the Black Cube SE can be placed next to the turntable. This minimizes loss due to cable lengths.

Lehmannaudio always pays special attention to details: the cable between power supply and audio section is shielded and uses a Neutrik connector with gold plated contacts at the power supply side. The cases of both the power supply and the audio section are made of nonmagnetic material (aluminium) and are equipped with a top cover coated with a special anti-resonance treatment.

Technical Specifications:

• Sensitivity: (Output 775 mV/ 0 dB) MM: 3.8 mV/1 kHz / MC: 0.38 mV/1 kHz
• Gain at 1kHz: MM: 46 dB / MC: 66 dB
• Signal to Noise Ratio (RMS Unweighted): MM: 71 dB / MC: 63 dB
• Gain: 36 dB / 46 dB / 56 dB / 66 dB
• Channel Separation: > 85 dB at 10 kHz
• Input Capacitance: 100pF
• Input Impedances: 47 kΩ, 470Ω, 100Ω (Switchable) / 1x Custom Load
• Output Impedance: 47Ω
• RIAA Filter: Passive Equalization (Between To Linear Gain Stages)
• Bass Filter: 50 Hz, 6 dB/oct.
• Inter-Channel Mismatch: Typ. 0.5dB
• Power Consumption: < 3W
• Dimensions: Audio Section: 113 x 108 x 45mm
• Power Supply: 93 x 233 x 45mm
• Weight: Black Cube SE: 400g / PSU: 1000g
