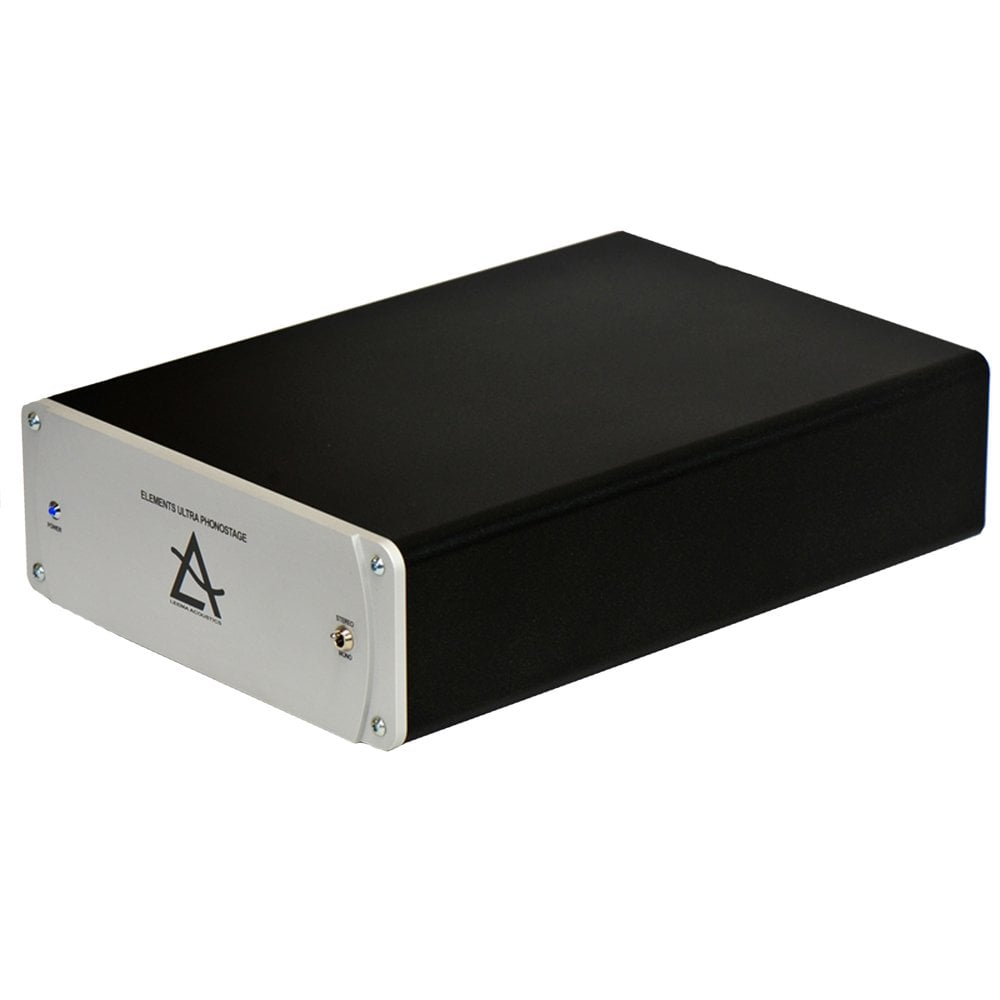

Leema Acoustics Elements Ultra MM/MC Phono Preamplifier

Moving coil and moving magnet input sensitivity, resistive loading, capacitance loading, and subsonic rumble filtering are all individually selectable via a matrix of switches on the base of the unit. The range of matching options is so comprehensive that no fewer than 30 switches – 15 per channel – select the parameters. A full guide to switch settings is silk-screened onto the base of the unit thereby avoiding confusion if the user manual is not to hand.

The unit features cartridge shunt protection at power-up, to avoid magnetisation issues or cartridge damage. In addition, the Elements Ultra Phonostage employs an electrically silent, transformerless power supply, which ensures that there is no source of unwanted 50Hz hum close to the incredibly sensitive input circuitry. Any residual noise components reside way below the limits of human hearing in normal use.

Cartridge input is via industry standard Gold plated RCA/Cinch connectors, while the output can be unbalanced, again via RCA/Cinch connectors, or balanced via professional XLR connectors.

Technical Specifications:

• Sensitivity MM: 2mV / 4mV RMS (42/36dB)
• Sensitivity MC: 75 / 125 / 150 / 175 / 250 / 350 / 500uV / 1mV (28/24/21/18 dB + MM gain setting)
• Resistive Loads MM: 47k/100k Note: all MC loads may also be applied to MM input.
• Resistive Loads MC: 47/49/54/57/64/68/77/83/97/107/132/152/209/264/497/1k
• Capacitive Loads MM/MC: 47/94/147/194/267/314/367/414/517/564/617/664/737/784/837/884 pF
• Nominal Output Level Unbalanced RCA/Cinch: 250mV RMS
• Nominal Output Level Balanced XLR: 500mV RMS
• Dimensions: 220*340*88mm
• Carton: 370*450*210mm
• Mass: 2.5Kg
