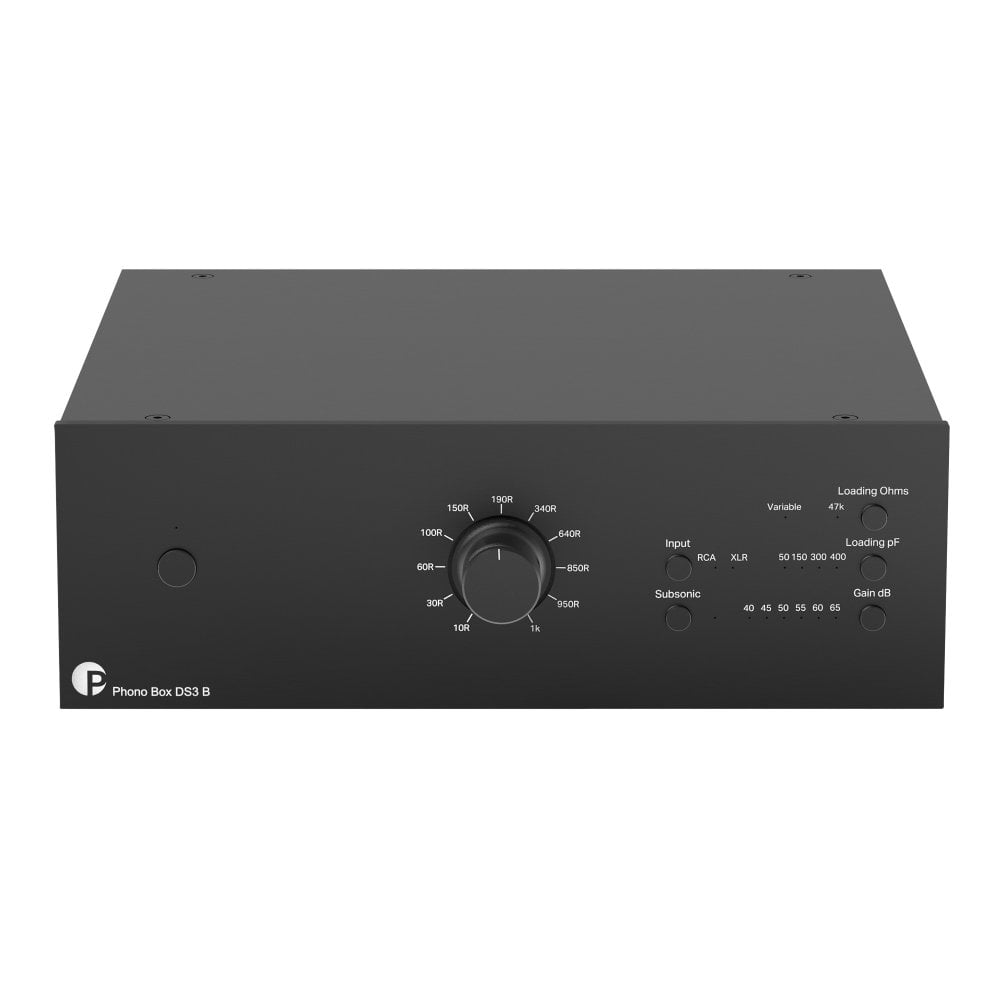

Pro-Ject Box Design Phono Box DS3 B Moving Magnet Phono Preamplifier

The Pro-Ject design team took the decision to employ discrete circuitry in the Phono Box DS3 B. Discrete circuits involve no operational amplifiers (op-amps), and the result is a more neutral, natural, dynamic, and vivid sound. They are more complicated to put together and involve a greater variety of components, but the result when utilised in a well-organised electrical layout is a true high-end sound.

This philosophy for the best possible performance carries through to the variety of conveniently-placed features the Phono Box DS3 B has on offer. The phono stage can be connected to two turntables at the same time, and each input will save its previous settings in memory so the Impedance, Capacitance (for MM cartridges) and Gain will all be set as you switch between turntables. For MC cartridges, the continuously adjustable load-impedance dial on the front panel allows you to perfectly set the impedance to suit your cartridge and your ears.

As the Phono Box DS3 B is equipped with both balanced inputs and outputs, it is also part of Pro-Ject’s True Balanced Connections concept. By connecting to a turntable with a moving coil cartridge and using one of Pro-Ject’s balanced connection cables, your analogue system can benefit from increased dynamics, less noise and improved signal-to-noise ratios. Going true balanced is like hearing parts of your music that were not there before.

Technical Specifications:

• Input impedance: Stepless 10 – 1000 ohms or fix 47kOhms
• Input capacitance: 50, 150, 300, 400pF
• Gain (+ 6dB using XLR Out): 40, 45, 50, 55, 60, 65 dB
• SNR MM (40dB): 104dBV, 111dBV - ‚A‘ weighted
• SNR MC (60dB): 85dBV, 91dBV - ‚A‘ weighted
• THD at 1 kHz: <0,001% MM, < 0,004% MC
• THD (20Hz-20kHz): <0,005% MM, < 0,01% MC
• RIAA-equalization curve accuracy: < 0,25dB / 20Hz - 20kHz
• Subsonic filter: 20Hz with 18dB/octave
• Input: 1x 5-pin mini XLR / 1x pair XLR / 1x pair RCA phono
• Line-level output: 1x pair RCA, 1x pair XLR
• Wiring XLR sockets: 1 ground, 2 “hot” and 3 “cold”
• Trigger In/Out: 12V on/off detector
• Outboard power supply: 18V/500mA DC
• Power consumption: 18V/max.290mA DC, <0.5 W standby
• Dimensions: 206 x 72 x 194 (205 with sockets) mm
• Weight: 480g without power supply
