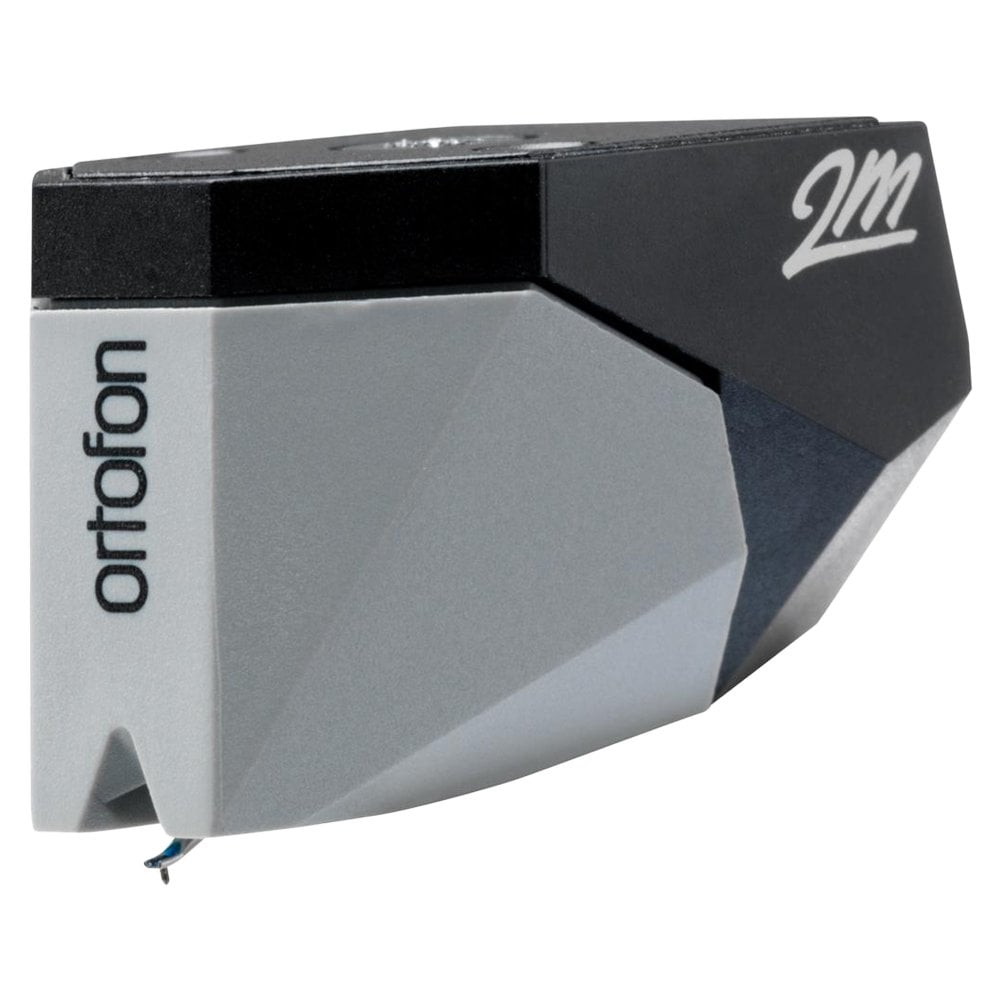

Ortofon 2M 78 Moving Magnet Cartridge

Ortofon 2M 78 Moving Magnet Cartridge

Code: O2M78
  • From £119.00
  • (FREE UK Delivery)
Usually dispatched within 24 hours
Loading...

The 2M 78 and 2M Mono offer users of older, rare vinyl a higher-quality playback medium than had previously been available.

Key Features:

  • Optimised sound reproduction and high level of sonic accuracy
  • Spherical diamond that is perfect for playback of 78 rpm shellac records, which require a larger stylus profile
  • Uses a strapped output to deliver the same output signal from both sets of pole pins
  • Supplied with 2 different sets of screws (M2.5 x 5 & M2.5 x 7)
  • Stylus brush included
  • Also available with integrated headshell or verso version
  • Premounted version is mounted on our popular SH-4 Black headshell
  • Premounted version is easily and directly mountable on S-shaped tonearms with universal mount.
  • Correct Baerwald alignment with tonearms with universal mount.

2M Verso:

The 2M series of cartridges are now also available in a special version, suited for bottom-mount tonearms.

2M Premounted:

The 2M Premounted is a practical and elegant solution for those who require direct and easy mounting on their S-shaped tonearm. The quality of the SH-4 headshell is sturdy and rigid, yet the design emphasises a slim and delicate form factor with a long finger lift that is easy to pick up.

2MR (Reduced):

The "R" stands for “Reduced” and relates to the lower cartridge body height. This is suited to certain types of tonearms from manufacturers such as Pro-Ject, Linn and Rega, to achieve the correct VTA.

Ask A Question
Tell A Friend
Add To Compare

The 2M 78 features an improved True Mono engine, which provides a high level of sonic accuracy, as well as expertly cut Spherical diamond that is perfect for playback of 78 rpm records (which require a larger stylus profile).

Technical Specifications:

  • Output Voltage (at 1kHz, 5cm/sec): 4mV
  • Frequency Range (at -3dB): 20Hz - 22kHz
  • Frequency Response 20Hz - 20kHz: +3 / -1dB
  • Tracking Ability at 315Hz: Typically 70μm
  • Compliance, Dynamic, Lateral: 18μm / mN
  • Stylus Type: Spherical
  • Stylus Tip Radius R: 65μm
  • Tracking Force Range: 1.6 - 2.0g (16 - 20mN)
  • Recommended Tracking Force: 1.8g (18mN)
  • Tracking Angle: 20º
  • Internal Impedance / DC Resistance: 700Ω
  • Internal Inductance: 300mH
  • Recommended Load Resistance: 47kΩ
  • Recommended Load Capacitance: 150 - 300pF
  • Cartridge Colour Body / Stylus: Black / Grey
  • Cartridge Weight: 7.2g
  • Weight Premounted on SH-4: 16.7g
  • Replacement Stylus Unit: Stylus 2M 78
  • Accessories: Stylus Brush / Screwdriver
