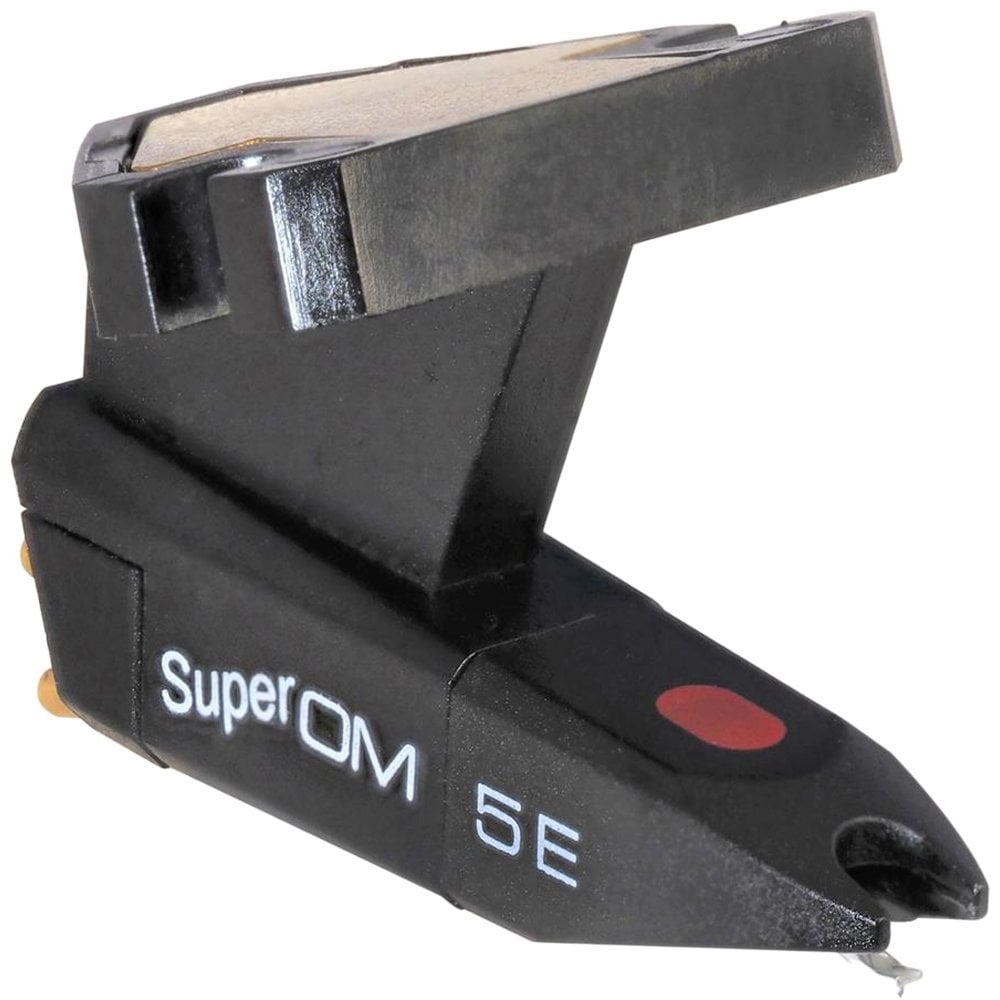

Ortofon OM 5 Super Moving Magnet Cartridge

Technical Specifications:

• Output voltage at 1000 Hz, 5cm/sec: 4 mV
• Channel balance at 1 kHz: 1.5 dB
• Channel separation at 1 kHz: 22 dB
• Channel separation at 15 kHz: 15 dB
• Frequency range at 3dB: 20-25.000 Hz
• Frequency response: 20-20.000 Hz ± 2 dB
• Tracking ability at 315Hz at recommended tracking force: 65 µm
• Compliance, dynamic, lateral: 20 µm/mN
• Stylus type: Elliptical
• Stylus tip radius: r/R 8/18 µm
• Tracking force range: 1.5-2.0 g (15-20 mN)
• Tracking force, recommended: 1.75 g (17.5 mN)
• Tracking angle: 20°
• Internal impedance, DC resistance: 1 kOhm
• Internal inductance: 580 mH
• Recommended load resistance: 47 kOhm
• Recommended load capacitance: 200-500 pF
• Cartridge colour, body/stylus: Black/Black
• Cartridge weight incl. extra weight: 5 g
• Cartridge weight excl. extra weight: 2.5 g
• Replacement stylus unit: Stylus 5 E, Stylus 10
