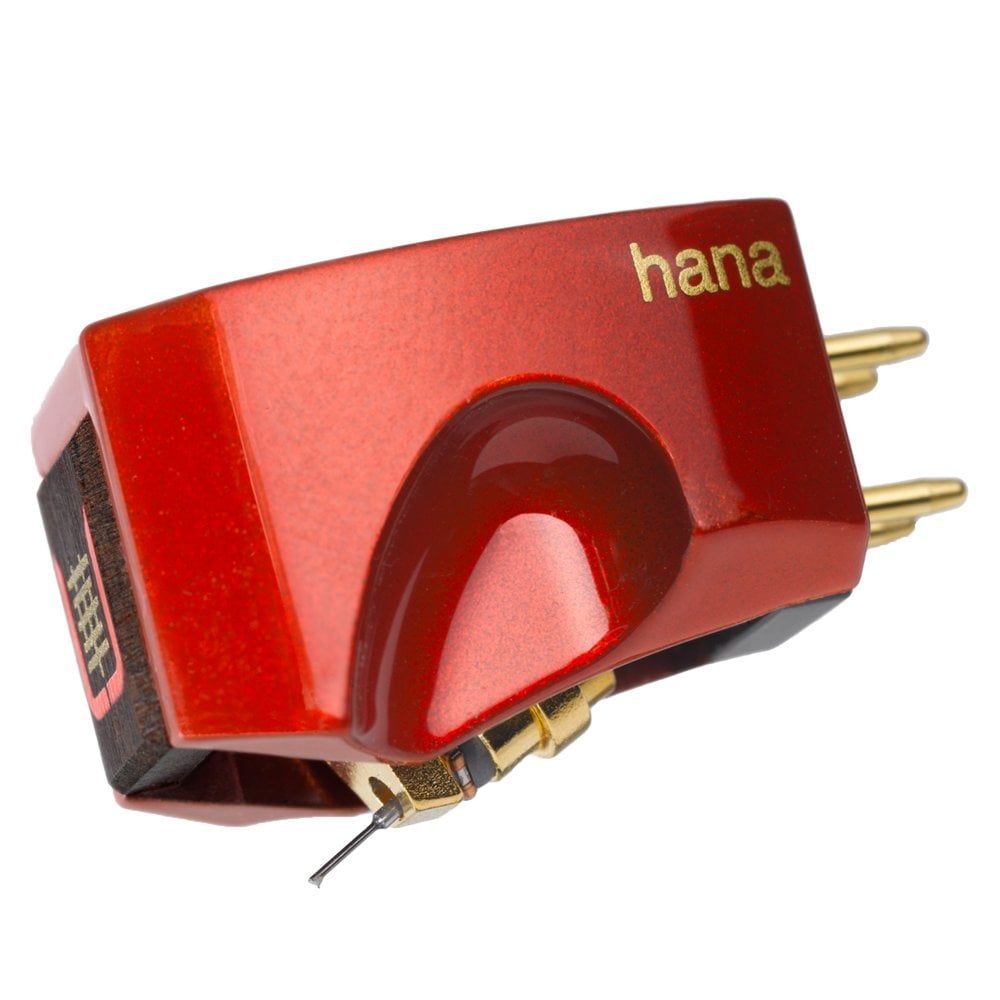

Hana Umami Red Moving Coil Cartridge

The cryogenically treated MC generator features a samarium/cobalt magnet with a pure-iron square plate armature, hand-wound with high purity 30-micron copper wire for an internal impedance of 6Ω and 0.4mV output.

A Nude Microline stylus is bonded to a solid Boron cantilever for tracing the most delicate musical nuances from the LP.

The HANA-Umami Red exclusive Auricle™ body design (with tapped mounting holes) mimics the shape of the human outer ear to rigidly support the cryogenically treated “Open Air” Moving Coil generator. It is machined from a hard Duralumin with a multi-layered Urushi lacquer finish originating from the Japanese Makie-artistic tradition and incorporates an Ebony Wood inlay resonance damper. An easy to fit stylus guard protects your investment.

The Umami Red offers 0.4mv/1KHz output, two year guarantee and a ‘new for old or damaged’ replacement service.

Technical Specifications:

• Model: Umami Red (UR)
• Body Material: Duralumin (A7075), Ebony Wood
• Body Finish: Gloos Urushi Lacquer/ Red
• Cantilever: Boron
• Stylus: Microline Nude Diamond
• Armature Material: Permalloy
• Armature Shape: Square
• Parts Material: Pure Iron
• Magnet: Samarium Colbalt
• Terminal Plate: PEEK (Polyether Ether Ketone)
• Terminal Pin: 24K Gold Plated
• Coil Impedance: 6Ω/1kHz
• Coil Output Level: 0.4mV/1kHz
• Coil Wire Material: High Purity Copper
• Terminating Impedance: >60Ω
• Cryo-genic treatment: Yes
• Frequency Response: 15~50,000Hz
• Output Balance: 0.5dB/1kHz
• Channel Separation: >30dB/1kHz
• Tracking Force Weight: 2 gr.
• Trackability: 70μm/2gr
• Dynamic Compliance: 10 x 10(-6) cm/dyne (100Hz)
• Dynamic Compliance: 16 x 10(-6) cm/dyne (100Hz)
• Cartridge Weight: 10.5 gr.
