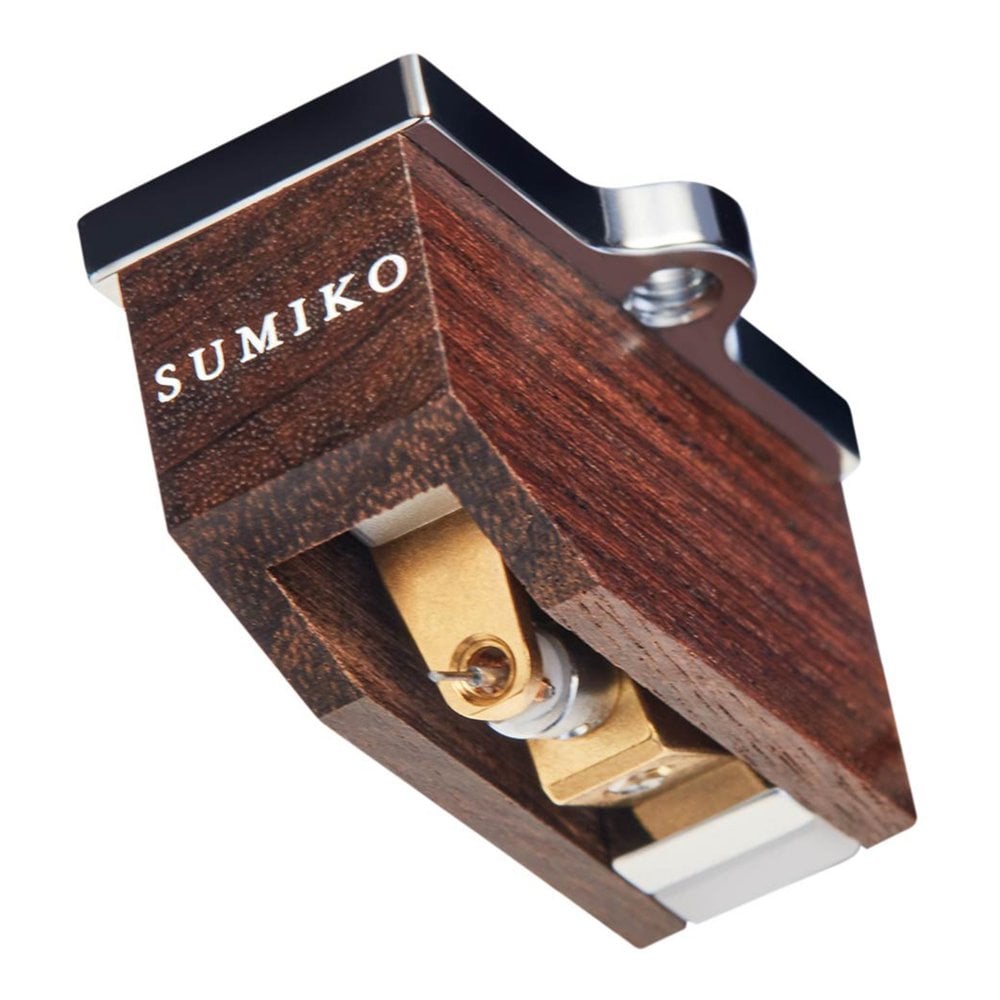

Sumiko Palo Santos Presentation Moving Coil Cartridge

Improvements grace virtually every facet of the product to differentiate it from its smaller sibling the Pearwood Celebration II. Most significant is the new generator anchoring system, which has substantially improved rigidity and reduced resonance and background noise to previously unheard of levels. From the new handcrafted Palo Santos (Brazilian Rosewood) body, which is shorter in height to add vision when mounting and aligning this cartridge, to the Long Grain Boron cantilever and new Line Contact stylus, which significantly improves resolution, the Palo Santos Presentation truly deserves the title as our flagship offering.

Technical Specifications:

• Cartridge Type: Moving Coil
• Suspension: Synthetic rubber
• Frequency Response: 10Hz - 40khz (+/- 1.5dB)
• Output Voltage/Channel: 0.5mV (3.54cm/s @ 1kHz)
• Channel Separation: >30dB @ 1kHz
• Channel Balance: <0.5dB @ 1kHz
• Optimum Tracking Force: 2.0g
• Tracking Force Range: 1.8g - 2.2g
• Dynamic Compliance: 8x10-6 cm/dyn
• Internal Impedance: 12Ω
• Load Impedance: 100Ω - 1kΩ
• Capacitance Range: 100pF - 300pF
• Cantilever: long-grain boron
• Stylus: 75 x 4 micron ultra low-mass Line-Contact
• Output Terminals: unique gold-plated tapered brass pins
• Cartridge Weight: 8.3g
• Mounting System: standard 0.5” hole spacing (M2.5 threaded)
• Supplied Hardware: 2x M2.5 (6mm) stainless steel mounting screws / 2x M2.5 (8mm) stainless steel mounting screws / 4x M2.5 stainless steel washers, / 1x 2.0mm allen wrench
