The MC Quintet Series is congruent with Ortofon’s unrelenting commitment to providing the most precise and accurate reproduction possible without colouration.

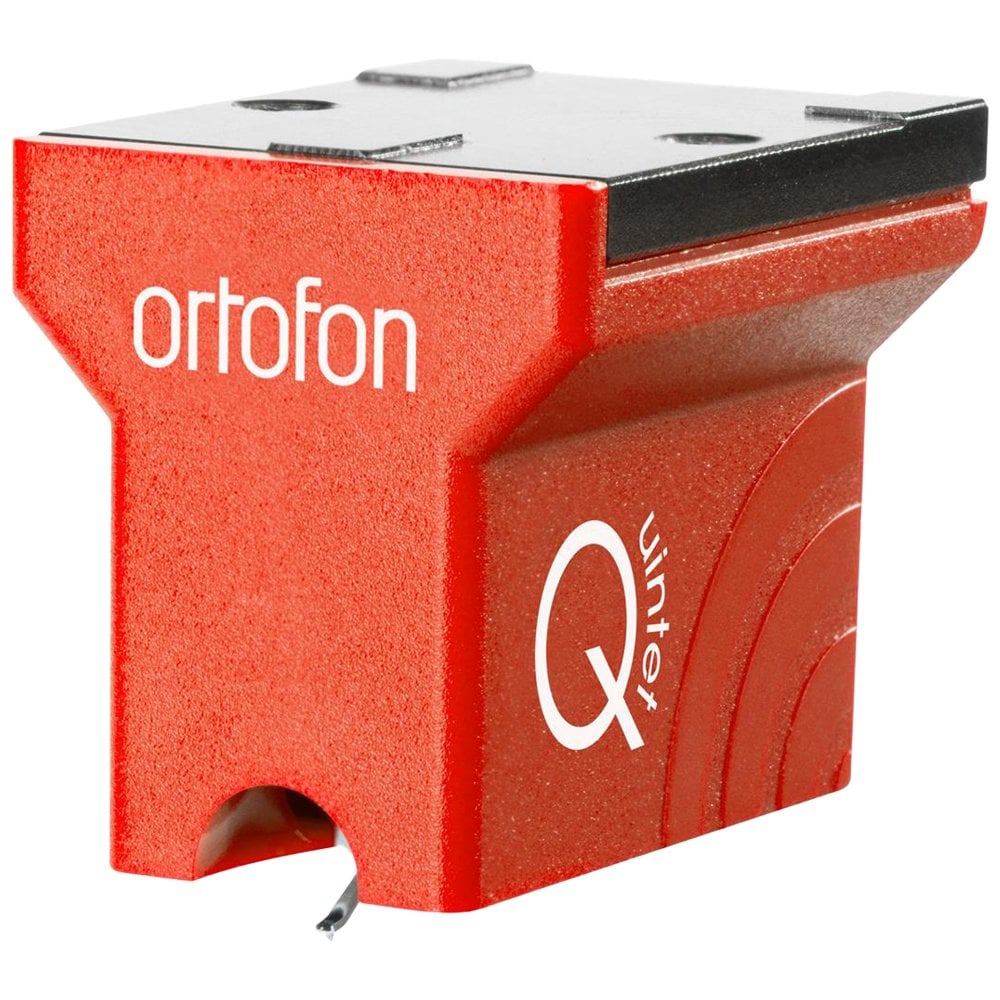

The Quintet Red features an Elliptical diamond which is cut and polished to Ortofon’s high standards. This entry-level MC cartridge has very high performance standard and is a perfect all-rounder for the newcomers to the world of Moving Coil cartridges. MC Quintet Red delivers open, dynamic sound with a slight touch of warmth.
Technical Specifications:
Output Voltage (at 1kHz, 5cm/sec):0.5mV
Channel Balance at 1kHz:<1.5dB
Channel Separation at 1kHz: >21dB
Channel Separation at 15kHz: >14dB
Frequency Range (at -3dB): 20 Hz - 25 kHz
Frequency Response 20Hz - 20kHz: ± 2.5dB
Tracking Ability at 315Hz: 65μm
Compliance, Dynamic, Lateral: 15μm / mN
Stylus Type: Elliptical
Stylus Tip Radius r / R: 6 / 50μm
Tracking Force Range: 2.1 - 2.5g (21 - 25mN)
Recommended Tracking Force: 2.3g (23mN)
Tracking Angle: 20º
Internal Impedance / DC Resistance: 7Ω
Recommended Load Impedance: >20Ω
Cartridge Body Material: ABS/Alu.
Cartridge Colour: Red
Cartridge Weight: 9g
