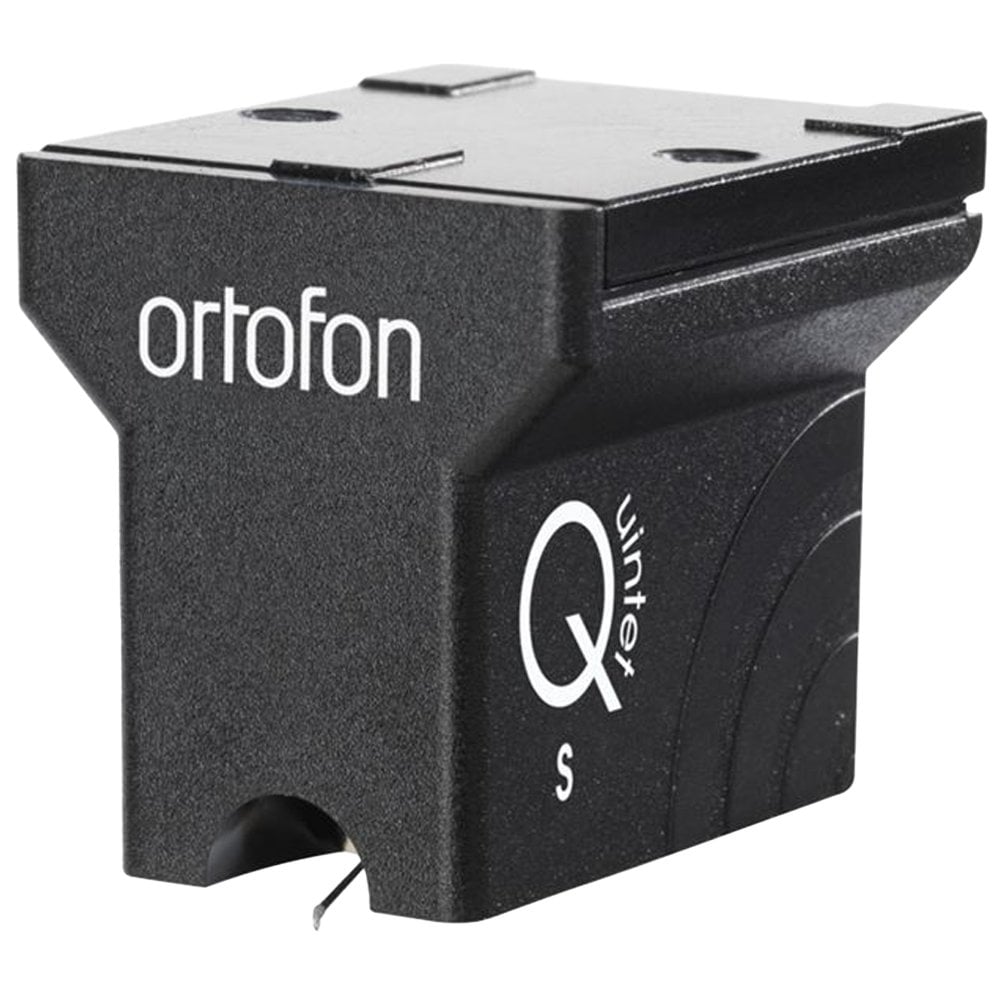

Ortofon Quintet Black S Moving Coil Cartridge - Exchange

The Quintet Black S is graced with a Nude Shibata diamond, considered one of the best stylus profiles available, mounted on a high-performance sapphire cantilever. The Shibata’s slim, highly polished profile allows an exceedingly wide contact area to the walls of the groove and ensures detailed and pure reproduction through out the spectrum, including even the most high frequency groove details.

Technical Specifications:

• Output Voltage (at 1kHz, 5cm/sec): 0.3mV
• Channel Balance at 1kHz: <1.0dB
• Channel Separation at 1kHz: >23dB
• Channel Separation at 15kHz: >15dB
• Frequency Range (at -3dB): 20 Hz - 25 kHz
• Frequency Response 20Hz - 20kHz: ¬± 1.5dB
• Tracking Ability at 315Hz: 80Œºm
• Compliance, Dynamic, Lateral: 15Œºm / mN
• Stylus Type: Nude Shibata
• Stylus Tip Radius r / R: 6 / 50Œºm
• Tracking Force Range: 2.1 - 2.5g (21 - 25mN)
• Recommended Tracking Force: 2.3g (23mN)
• Tracking Angle: 20¬∫
• Internal Impedance / DC Resistance: 5Œ©
• Recommended Load Impedance: >20Œ©
• Cartridge Body Material: ABS/Alu.
• Coil Wire Material: Aucurum
• Cartridge Colour: Black
• Cartridge Weight: 9g
