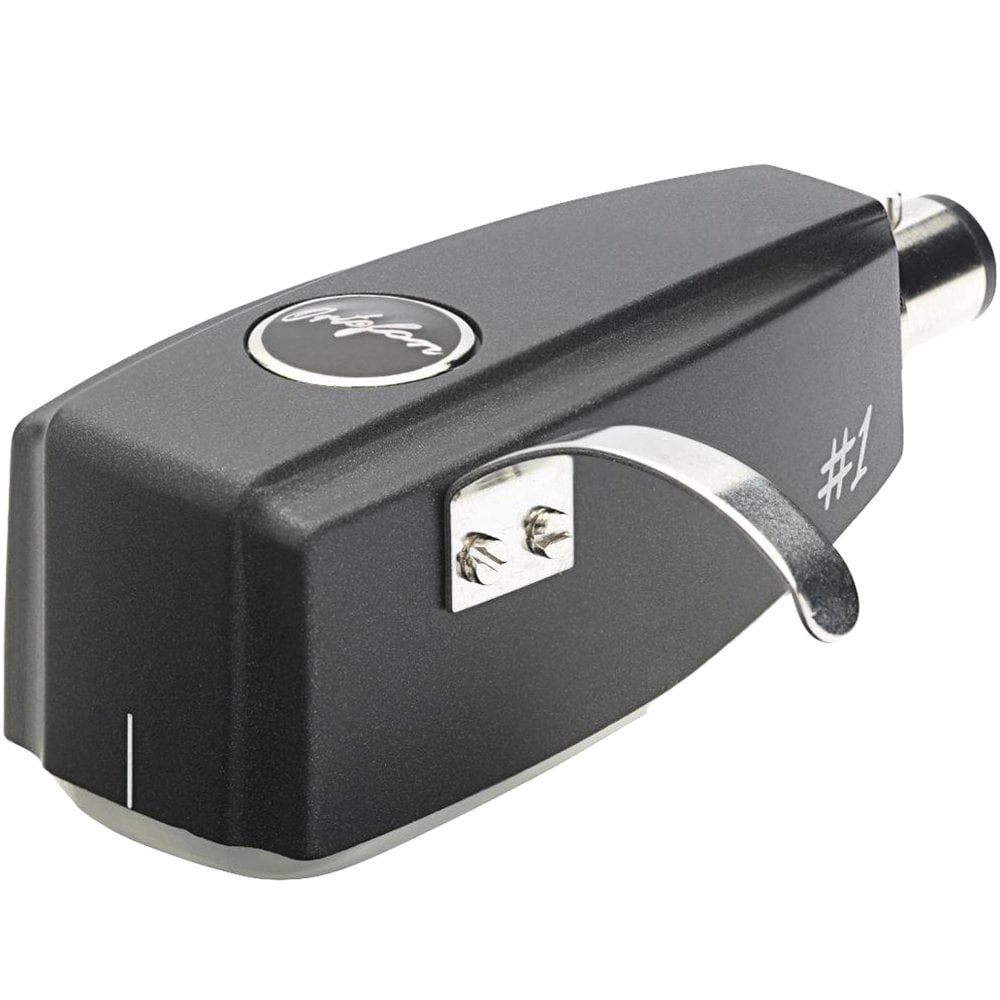

Ortofon SPU #1 S Moving Coil Cartridge and Headshell

Ortofon SPU #1 S Moving Coil Cartridge and Headshell

Code: OSPU1S
  • £619.00
  • (FREE UK Delivery)
Usually dispatched within 24 hours
Loading...

The SPU series embodies the essence of the original Moving Coils and are a perfect solution for the playback of both early and modern and contemporary stereo recordings.

Ask A Question
Tell A Friend
Add To Compare
No other company has ever retained a phono cartridge model in their product range for so many years. The SPU was used by early broadcasting companies among whom the Ortofon brand name was already well known from the first moving coil system - the Ortofon mono system in the small black A-housing. The so-called “Ortofon sound“ became synonymous with the sound from the SPU, at an early stage.

The SPU #1 S is a Moving Coil cartridge with an 18 µm spherical stylus profile.

For moderate and high mass tonearms with SME connections.

Technical Specifications:
  • Output Voltage at 1 kHz, 5cm/sec.: 0.18mV
  • Channel Balance at 1 kHz: 1.5dB
  • Channel Separation at 1 kHz: 20dB
  • Channel Separation at 15 kHz: 10dB
  • Frequency Response: 20Hz - 20kHz (± 3 dB)
  • Recommended Loads Resistance: Phono MC/>10Ω
  • Internal Impedance, DC Resistance: 2Ω
  • Tracking Ability (at 315Hz): 65μm
  • Compliance, Dynamic, Lateral: 10μm/mN
  • Tracking Force: 4g (40mN)
  • Tracking Angle: 20°
  • Stylus Type: Spherical (R 18μm)
  • Cartridge Body Material: Ground Wood & Resin Composite
  • Cartridge Colour: Shiny Black
  • Cartridge Weight: 30g
