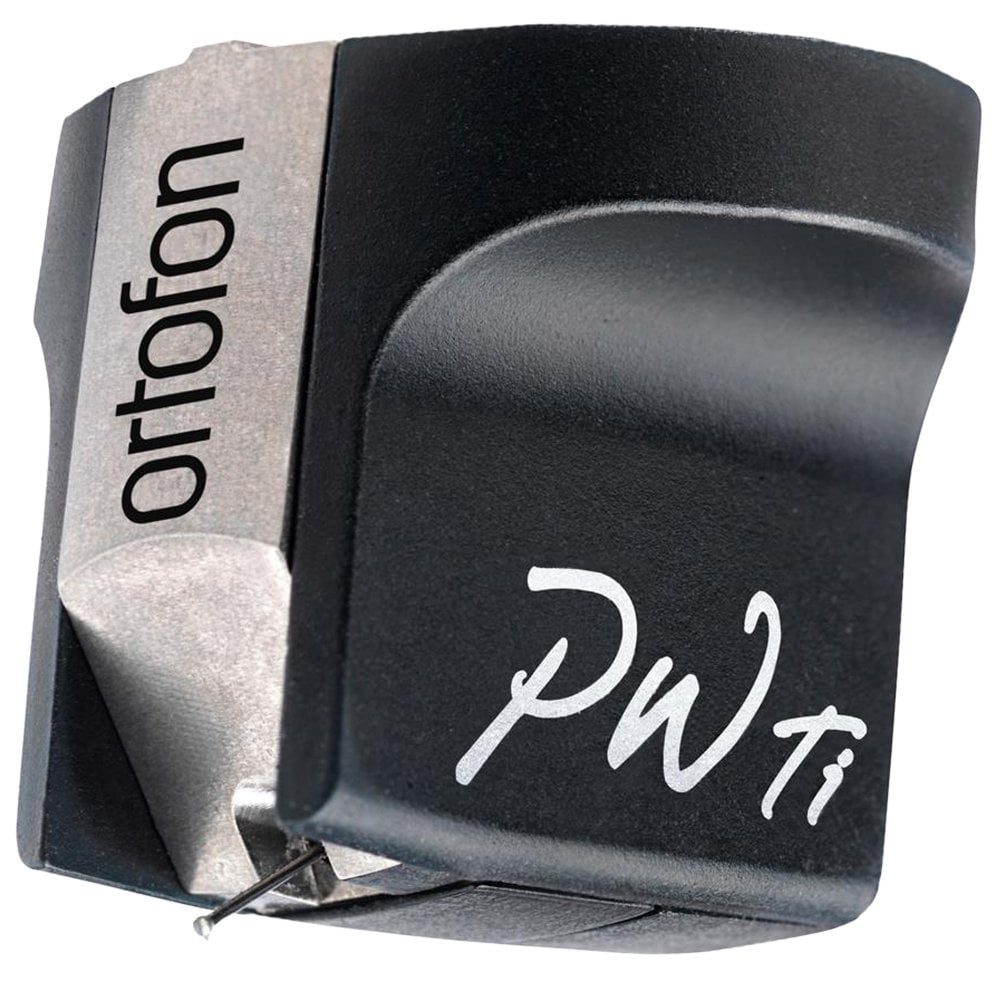

Ortofon MC Windfeld Ti Moving Coil Cartridge

The MC Windfeld Ti is a moving coil (MC) phono cartridge built into a new and improved cartridge body. Sharing obvious similarities with the high-end Cadenza Series, the central band of the MC Windfeld Ti body is made using a revolutionary Selective Laser Melting (SLM) manufacturing technology, also used by Ortofon on the flagship MC Anna cartridge. The technology uses Titanium to increase the overall rigidity of the cartridge body, eliminating unwanted vibrations within the cartridge and increasing the dynamic capability.

Like the flagship MC Anna cartridge, the MC Windfeld Ti makes use of “the finest diamond in the world”. The Ortofon Replicant 100 boasts a thin and light profile with an impressively long vertical contact surface, making it as close as possible to an original record cutting stylus. By specially polishing the stylus and then mounting it onto a boron cantilever, the cartridge can offer remarkable transparency, speed, and responsiveness beyond that of any other combination.

The stylus and cantilever are connected into a compact, lightweight generator system based around a powerful neodymium magnet and Ortofon's Aucurum 6NX oxygen-free copper coil wire. The specially designed armature used inside the system has low magnetic properties for uninhibited tracking of the cantilever’s movements. An additional Field-Stabilizing Element (FSE) is also placed inside the system to prevent the magnetic field from fluctuating, which allows for improved channel separation, zero transmission loss and greater sound-staging with more space between the performers.

Technical Specifications:

• Output Voltage (at 1kHz, 5cm/sec): 0.2mV
• Channel Balance at 1kHz: 0.5dB
• Channel Separation at 1kHz: 25dB
• Channel Separation at 15kHz: 20dB
• Frequency Range (at -3dB): 10Hz - 50kHz
• Frequency Response: 20Hz - 20kHz +2/-1dB
• Tracking Ability at 315Hz: Typically 90μm
• Compliance, Dynamic, Lateral: 13μm / mN
• Stylus Type: Nude Ortofon Replicant 100 / Special Polished Version
• Cantilever: Boron
• Stylus Tip Radius r / R: 5 / 100μm
• Tracking Force Range: 2.0 - 2.5g (20 - 25mN)
• Recommended Tracking Force: 2.3g (23mN)
• Tracking Angle: 23º
• Internal Impedance / DC Resistance: 7Ω
• Recommended Load Impedance: >10Ω
• Cartridge Body Material: SLM Titanium, Stainless Steel
• Cartridge Colour: Titanium / Black
• Cartridge Weight: 11.0g
