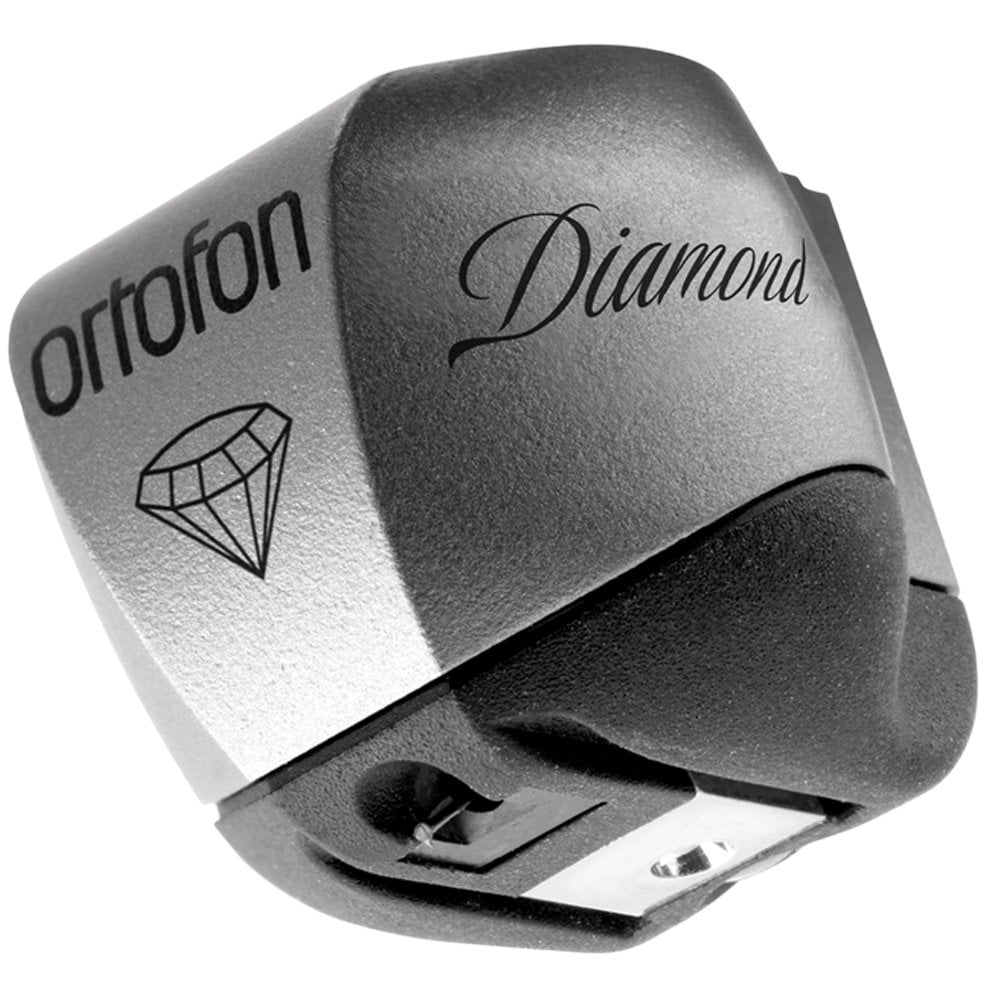

Ortofon MC Diamond Moving Coil Cartridge

The housing of the MC Diamond is made using Ortofon’s pioneering SLM technique. In production, fine particles of Titanium are welded together, layer-by-layer, to construct a single piece body devoid of unnecessary material. Using this technique, the density of the body can be precisely controlled, allowing for extremely high internal damping. The final result provides absolute freedom from resonance, allowing the MC Diamond to perfectly suit a wide array of high-end tonearms.

Like previous Ortofon flagships, the MC Diamond makes use of the company’s best stylus profile. The specially polished Ortofon Replicant 100 diamond stylus profile boasts a thin and light shape, with an impressively long vertical contact surface making it as close as possible to an original record cutting stylus as possible. However, thanks to the technical advances made in developing the range of Ortofon flagship MC cartridges, the MC Diamond sees the stylus mounted onto a diamond cantilever; a feature that redefines the boundaries of analogue reproduction, presenting greater inner detail, subtlety, and depth like never before.

For the new MC Diamond cartridge, the Ortofon Wide Range Damping System (WRD) has been re-engineered to include an enhanced rubber suspension, specially developed in-house to ensure exceptional tracking and virtually eliminates distortion and resonance. This feature allows for optimal interaction between compliance and damping, improved stability and playback, and unparalleled sound quality. Created using a new rubber compound that utilizes Multi Wall Carbon Nanotube technology (MWCNT), this new rubber suspension provides improved damping and enhances the overall performance of the MC Diamond cartridge. This Wide Range Damping (WRD) system offers more consistent movement with zero unwanted resonance, and thereby better stereo perspective and transient delineation.

Technical Specifications:

• Output Voltage (at 1kHz, 5cm/sec): 0.2mV
• Channel Balance at 1kHz: 0.5dB
• Channel Separation at 1kHz: 25dB
• Channel Separation at 15kHz: 20dB
• Frequency Response 20Hz - 20kHz: ± 2dB
• Tracking Ability at 315Hz: 80μm
• Compliance, Dynamic, Lateral: 11μm / mN
• Stylus Type: Special polished Nude Ortofon Replicant 100 on Diamond Cantilever
• Cantilever: Diamond
• Stylus Tip Radius r / R: 5 / 100μm
• Tracking Force Range: 2.5g - 2.8g
• Recommended Tracking Force: 2.6g
• Tracking Angle: 23º
• Internal Impedance / DC Resistance: 6Ω
• Recommended Load Impedance: > 10Ω
• Cartridge Body Material: SLM Titanium
• Cartridge Colour: Black / Silver
• Cartridge Weight: 17.5g
