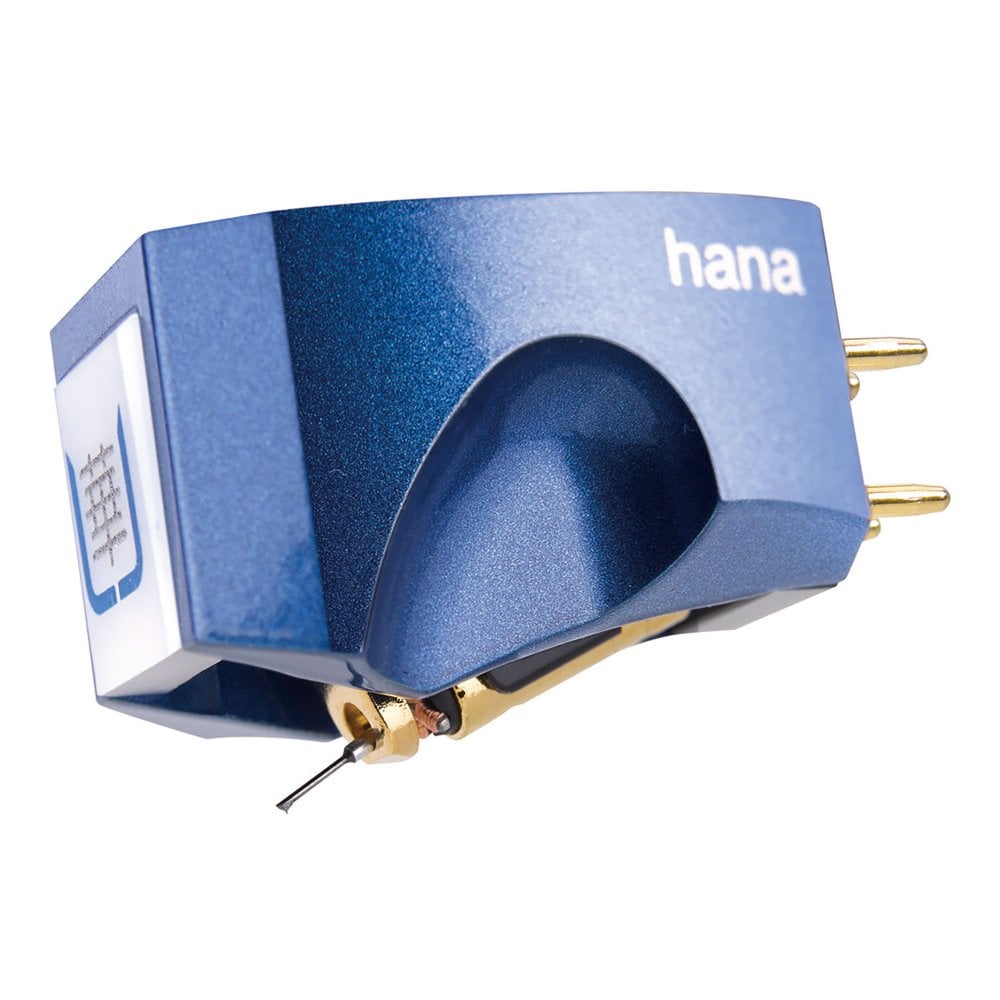

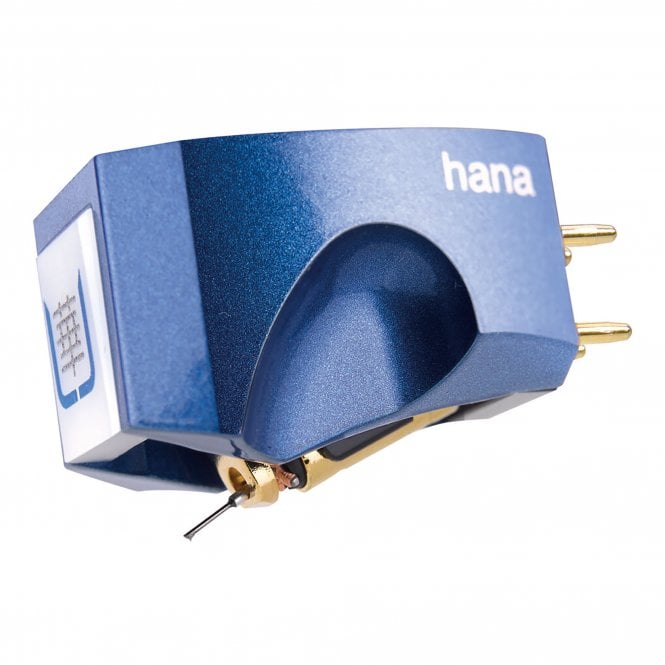

Hana Umami Blue Moving Coil Cartridge

The cryogenically treated MC generator features an Alinco magnet material with hand-wound high purity copper wire on a cross armature, for an internal impedance of 8Ω and 0.4mV output. The pure iron pole piece and the Nude Microline stylus bonded to a solid Boron cantilever are as used in the Umami Red cartridge; for tracing the most delicate musical nuances from the LP.

The total design approach creates the classic sonic qualities and great value that Hana cartridges are now so well known for and positions the Umami Blue between the Hana ML and Umami Red cartridge price points.

Technical Specifications:

• Model: Umami Blue (UB)
• Body Material: Duralumin (A7075) + POM
• Body Finish: Body Finish Gloss Enamel Lacquer/ Blue
• Cantilever: Boron
• Stylus: Microline Nude Diamond
• Armature Material: Permalloy
• Armature Shape: Cross
• Parts Material: Pure Iron
• Magnet: Alnico (Al-Ni-Co)
• Terminal Plate: PEEK (Polyether Ether Ketone)
• Terminal Pin: 24K Gold Plated
• Coil Impedance: 8Ω/1kHz
• Coil Output Level: 0.4mV/1kHz
• Coil Wire Material: High Purity Copper
• Terminating Impedance: >80Ω
• Cryo-genic treatment: Yes
• Frequency Response: 15~50,000Hz
• Output Balance: 0.5dB/1kHz
• Channel Separation: >30dB/1kHz
• Tracking Force Weight: 2 gr.
• Trackability: 70μm/2gr
• Dynamic Compliance: 10 x 10(-6) cm/dyne (100Hz)
• Dynamic Compliance: 17 x 10(-6) cm/dyne (100Hz)
• Cartridge Weight: k10.8 gr.
