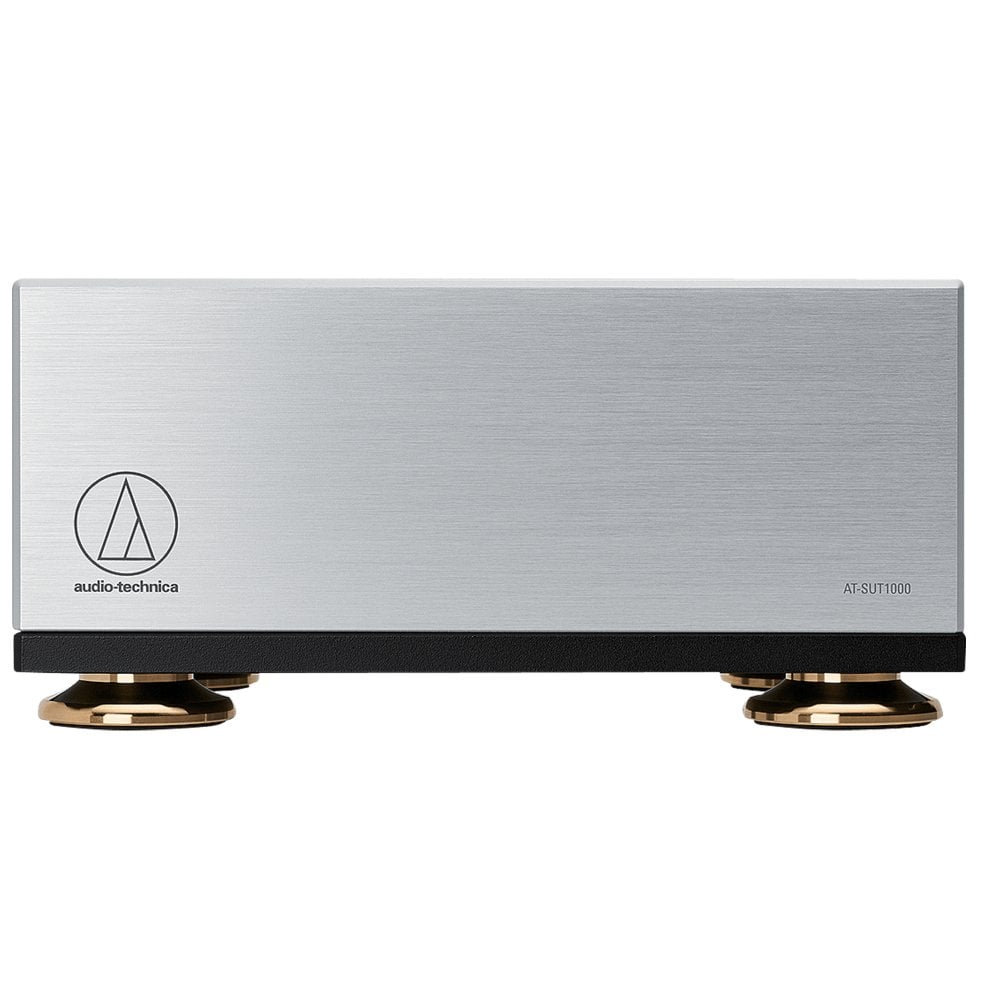

Audio-Technica AT-SUT1000 MC Step-Up Transformer

It features a special hand-wound, large-core transformer that is capable of a wide range of voltages, making it ideal for stepping up low-impedance moving coil cartridges. The transformer maintains a balanced signal from the moving-coil cartridge through to the phono preamp. Or users can opt for an unbalanced connection, if desired. The AT-SUT1000 utilizes HANENITE® rubber mounting to suppress vibrations and permalloy magnetic shielding to block external noise.

Technical Specifications:

• Frequency Response: 10 - 200 kHz (-3 dB to +1 dB at 3.0 ohms) 10 - 60 kHz (-3 dB to +1 dB at 10 ohms) 10 to 40 kHz (-3 dB to +1 dB at 17 ohms)
• Input/Output: Stereo right/left
• Input/Output Terminal: RCA or XLR (2: hot)
• Step-Up Ratio: 22 dB
• Supported Cartridge: 2 to 17 ohms
• Recommended Load Impedance: : 47,000 ohms
• Channel Balance: 0.5 dB or less
• Channel Separation: 100 dB or more
• Dimensions: 92 mm (3.6") H × 196 mm (7.7") W × 150 mm (5.9") D, excluding protrusions
• Weight Approx.: 5 kg (11 lbs.)
• Accessories: 1.0 m (3.3') ground wire
