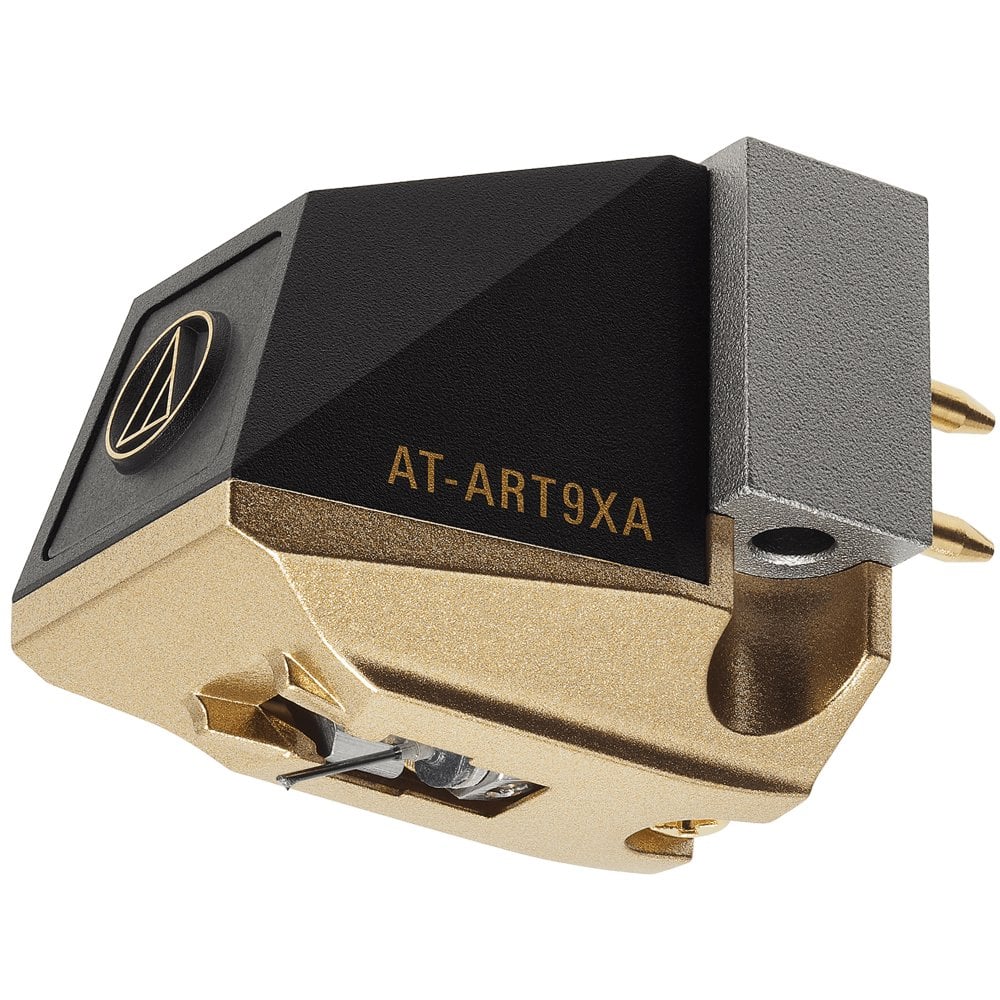

Audio-Technica AT-ART9XA Dual Moving Coil Cartridge

Technical Specifications:

• Frequency Response: 20-50,000 Hz
• Channel Separation: 30 (dB at 1 kHz)
• Vertical Tracking Angle: 20°
• Vertical Tracking Force: 1.6-2.0 g (1.8 g standard)
• Stylus Construction: Nude
• Recommended Load Impedance: Min. 100 ohms (when head amplifier connected)
• Coil Impedance: 12 ohms (1 kHz)
• DC Resistance: 12 ohms
• Coil Inductance: 2.5 µH (1 kHz)
• Output Voltage: 0.2 mV (1 kHz, 5 cm/sec.)
• Output Channel Balance: 0.5 dB (1 kHz)
• Stylus Shape: Shibata
• Cantilever: 0.28 mm diameter solid boron
• Static Compliance: 20 x 10-6 cm/dyne
• Dynamic Compliance: 10 x 10-6 cm/dyne (100 Hz)
• Mounting: Half-inch
• Cartridge Weight: 8.5 g (0.30 oz)
• Dimensions: 17.3 mm (0.68") H × 16.8 mm (0.66") W × 25.0 mm (0.98") D
• Accessories Included: Non-magnetic screwdriver; 2 washers; cartridge installation screws (M2.6) (5.0 mm × 2, 8.0 mm × 2, 10.0 mm x 2, 12.0 mm x 2); protector; brush
• Threaded Hole: M2.6 x 2
• Note: Moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable.
