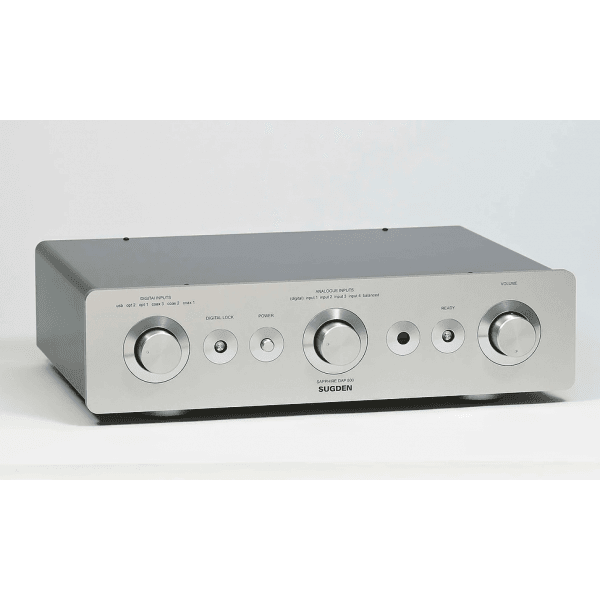

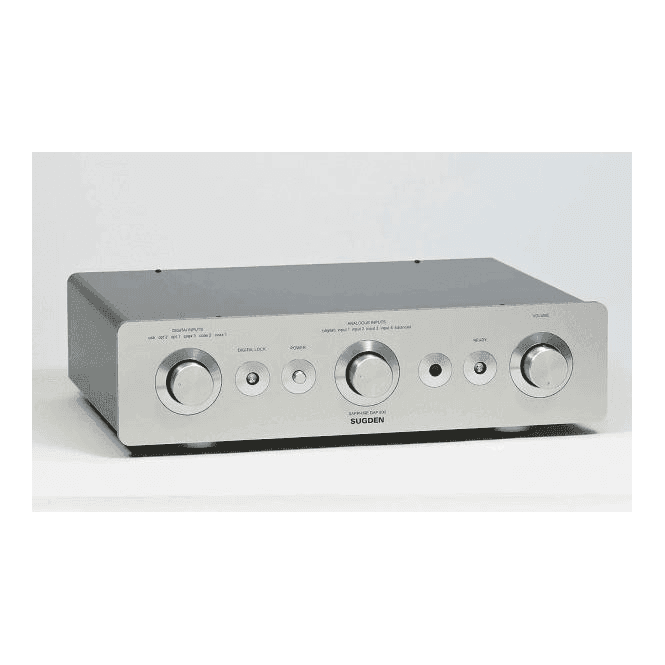

Sugden Sapphire DAP-800 Pre-Amplifier

Code: SUGDEN-S-DAP-800

£5,934.00
Secure yours with a deposit of
(FREE UK Delivery)
|
|

Usually dispatched within 24 hours

This item cannot be ordered online. If you are interested please click on the Ask a Question button below.

With an extensive range of input options, the DAP-800 can be the control centre of your audio system. A total of six analogue inputs and six digital inputs are available as well as two single ended and one balanced output. The DAP-800 has been carefully designed to operate in two separate domains, analogue and digital. For each circuit we use independent power supplies throughout so in effect there is a separate DAC and analogue pre-amp housed in a single chassis.

Add To Compare

Product Description
Delivery

This item cannot be ordered online. If you are interested please click on the Ask a Question button below.

The pre amplifiers analogue stage incorporates a Sugden VCV circuit in its most advanced form. This circuit has a high impedance input section, current gain stage which drives a folded cascode stage into a Class A output stage. The folded cascode circuit facilitates a wide bandwidth with maximum dynamics and low capacitive connectivity. This delivers a sophisticated sound that is neutral and transparent.

The digital section of the DAP-800 incorporates the same unique digital to analogue conversion as Sugden's stand alone DAC-4. Their experience in designing digital products now stretches over twenty five years. The DAP-800 has a number of advanced features. To reduce jitter and control errors during play back there is a dedicated transceiver circuit, this re-formats data prior to the digital to analogue converter. A unique conversion method is employed without oversampling or filtering in the digital domain, instead we chose an analogue filter resulting in very wide bandwidth capability. The interface accepts most digital formats including a ‘plug and play’ USB input for streaming music directly from a computer or dedicated music streamer.

Technical Specification:

Inputs: Four line level inputs, one balanced input, bypass
Digital Inputs: Three SPDIF coax, two SPDIF optical, one USB type B / Word length up to 24bit 96k, USB up to 16 bit 44.1ks/s.
Outputs: Two line level outputs, one balanced output, tape output
Volume Control: Motorised remote control (analogue) RC5 compatible
Mains Power Switching: Separate for analogue and digital circuits
Input Sensitivity: 120mV for 1 Volt out
Maximum Output: 9 Volts
Frequency Response: 0dB 15Hz-98kHz
Bandwidth: 8Hz-125kHz
Signal to Noise: >85dB
Distortion: <0.05% @ 1kHz, 1 Volt out
Gross Weight (packed): 10kgs
Dimensions: 120 x 430 x 340mm (hwd)
