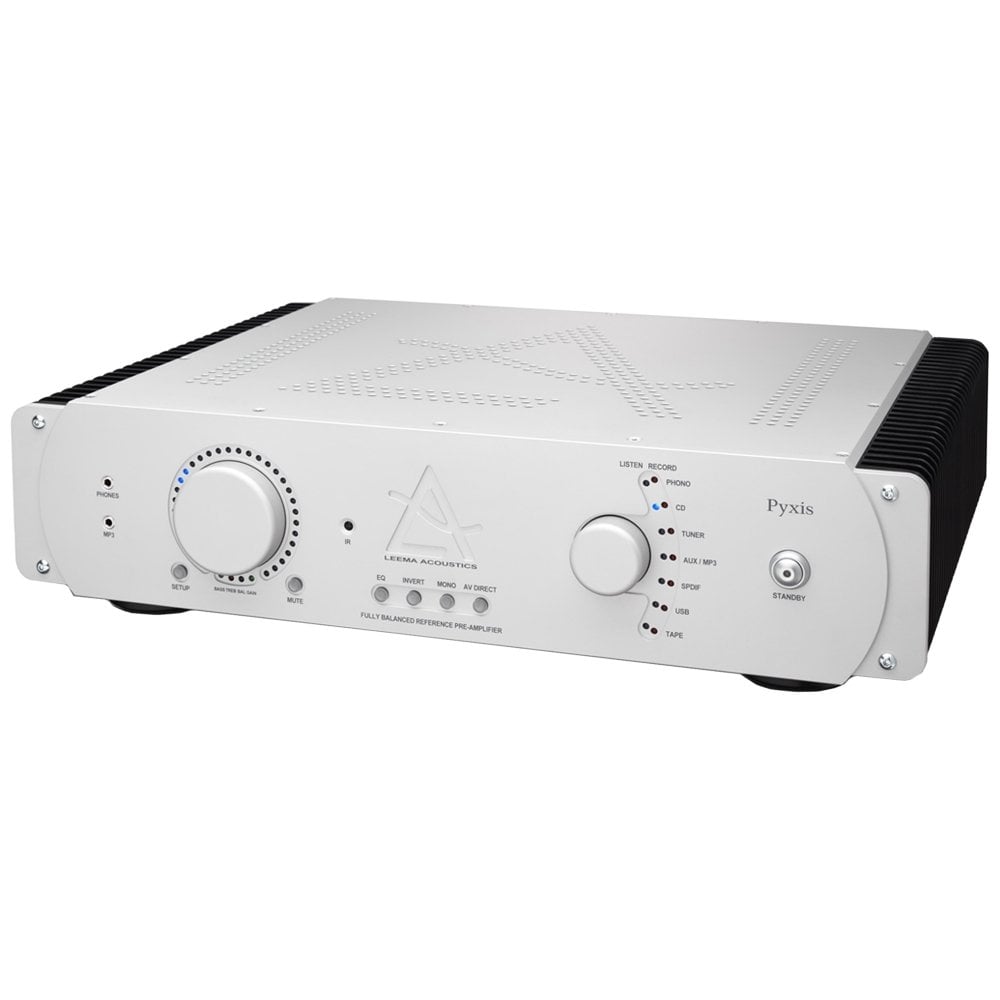

Leema Acoustics Pyxis Preamplifier

Features include both single-ended and balanced analogue inputs and outputs, tone controls, USB digital connectivity for use with computers, on-board 24 bit 96 kHz DAC for digital sources, high performance headphone amplifier and an optional built-in, high quality MM / MC phono-stage.

Pyxis’ analogue signal path is fully balanced throughout. In many ways it is actually two complete pre-amplifiers – one for each signal phase.

Pyxis features Leema’s proprietary LIPS® control interface. LIPS® type 1 & 2 are both included, allowing Pyxis to integrate with home automation systems and other Leema components. Using LIPS® it is possible to feed any Leema power amplifier with a constant high-level audio signal and control the volume at the input stage of the power amplifier. This is achieved by using ‘fly-by-wire’ control data from the Pyxis which ensures maximum signal-to-noise ratio and resolution of the audio signal, by running the audio interconnect cables at an unattenuated high-level.

Technical Specification:

• THD: 0.004%
• Noise: < -100 dB
• Freqency Response: 5 Hz - 100 kHz (+0/-3 dB)
• Number of balanced Inputs (XLR): 2
• Number of un-balanced Inputs (RCA): 5
• Internal Phono Amplifier: Optional (MM & MC Input)
• Tape Input: 1
• Tape Output: 1
• MP3 Inputs (front panel): 1
• USB: Yes (Bi-directional - up to 48 kHz sampling rate, 16 bit)
• S/PDIF Output: 1 (Co-axial)
• S/PDIF Input: 1 (Co-axial)
• Headphone Outputs: 1
• Pre-out Outputs: 1x Un-balanced (RCA) & 1x Balanced (XLR)
• Channel gain adjust for each individual input
• Low Frequency Adjust 50 Hz +/- 6 dB
• High Frequency Adjust 15 kHz +/- 6 dB
• Mute Buton: Yes
• Balance Adjust: (left/Right)
• LIPS® system: Master or Slave
• Dimensions: 440*320*110mm
• Carton: 590x450x210mm
• Mass: 10Kg
