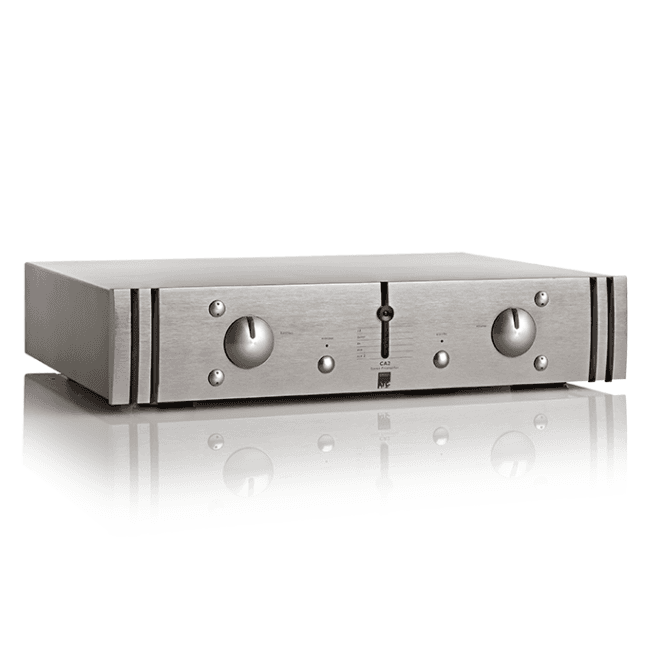

ATC CA2 Preamplifier

ATC CA2 Preamplifier

Code: ATC-CA2
  • £2,150.00
  • (FREE UK Delivery)
Usually dispatched within 24 hours
Loading...
Trade In

Please Note: This item cannot be ordered online. If you are interested, please click on the 'Enquire' button above.

Given ATC’s history manufacturing active loudspeakers, a partnering preamplifier was a logical step and our first preamp, the SCA2 was released in 1996.  The CA2 – a simpler design yet still offering exceptional performance – is derived from the ‘high-end’ SCA2 and maintains its exceptional performance, but with fewer features.  It is equally adept at driving active loudspeakers as paired with one of ATCs power amplifiers and a wide range of inputs and outputs ensure outstanding compatibility with a very wide range of partnering equipment.

Key Features:

  • Discrete class-A low-noise circuitry evolved from high-end SCA2 preamp.
  • MC/MM RIAA Phono Stage with adjustable gain/loading.
  • High-Performance Headphone Amplifier.
  • 5 x stereo RCA/Phono inputs.
  • IR Remote Control.
  • Hand built in the UK & covered by a 6–year warranty.
Ask A Question
Tell A Friend
Add To Compare

Technical Specifications:

  • Frequency Response: D.C. – >500kHz (-3dB)
  • THD: < 0.0005% / -106dB (1kHz, 1V, 600 ohms)
  • S+N/N Ratio: >108dB (IEC ‘A’)
  • Crosstalk: >90dB (10Hz – 20kHz)
  • Input sensitivity: 150mV (re. 1V out)
  • Maximum Output Level: 7.5V r.m.s. (600 ohms)
  • Analogue Preamp Outputs: 2 x stereo pair RCA/Phono, 1 x stereo pair male XLR (all unbalanced)
  • Headphone Amp Output: 1 x via 6.35mm jack
  • Analogue Tape Output: 1 x stereo pair RCA/Phono
  • Analogue Line Inputs: 5 x stereo pairs RCA/Phono
  • RIAA Phono Input:: 1 x pair via RCA/Phono. MC/MM with adjustable gain & loading.
  • Dimensions: 94 x 449 x 330mm / 3.7 x 17.7 x 13.0 inches (H x W x D inc. chassis connectors)
  • Weight: 6kg / 13.2lbs
