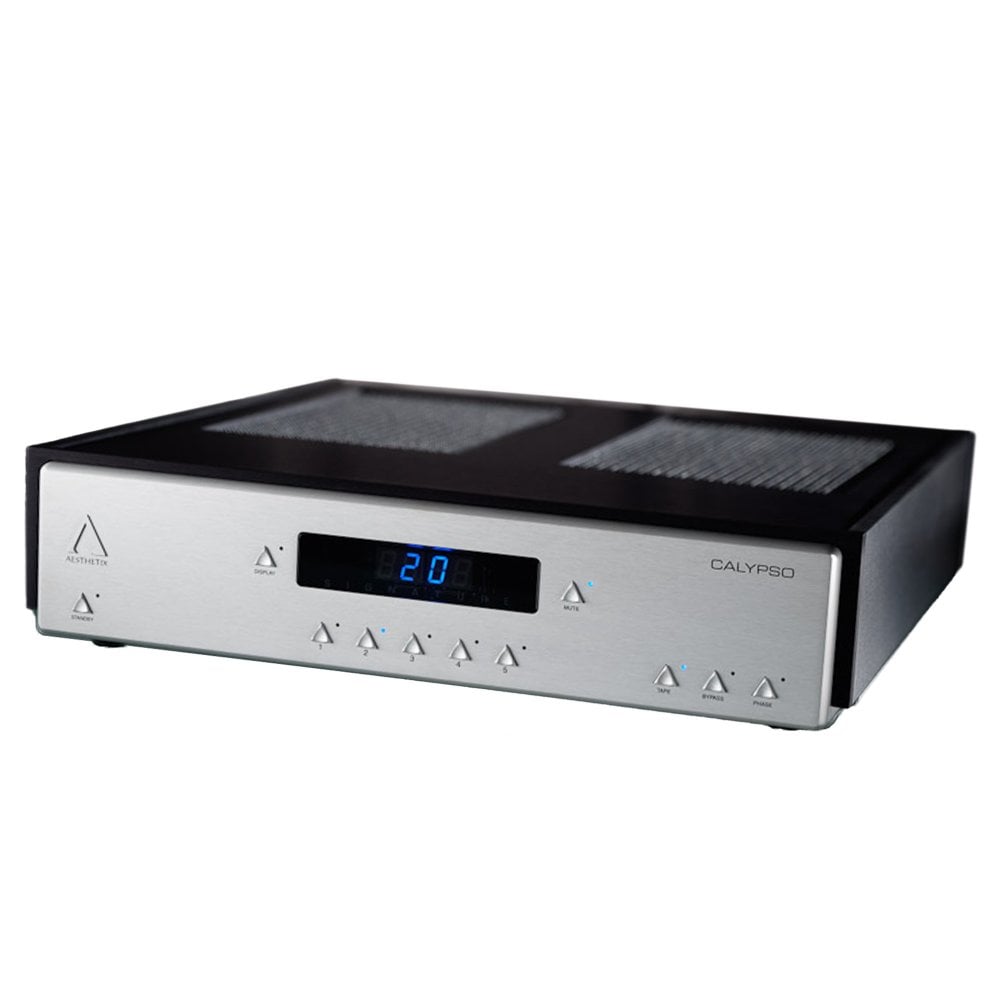

Aesthetix Calypso Linestage

Please Note: Calypso is available in three versions: Standard, Signature and Eclipse.

The standard version uses high-grade Rel-Cap polypropylene coupling capacitors. The Signature version uses exotic and expensive coupling capacitors and other critical parts to bring the performance to a higher level.

All versions of Calypso can be factory upgraded to Signature.

Technical Specifications:

• Inputs: 5 line RCA or XLR (balanced), plus 1 tape, RCA or XLR
• Outputs: 2 RCA (SE) and XLR (balanced), 1 tape RCA
• Line level gain: 23 dB single ended (SE), in/out, and 29 dB balanced/out
• Volume control: switched resistor network volume control with 88 1 dB steps
• Front panel controls: main input, tape input select, volume, balance, phase, mute, display, and bypass
• Remote controls: main input, tape input select, volume, balance, phase, mute, display, bypass and standby
• Frequency response: +- 0.25 dB, 20 Hz - 20 Khz
• Signal to noise: measured at 70 dB minimum, A-weighted (ref 1 mv input, 75 dB gain setting)
• Line input impedance: 40 k ohms SE, 80 k ohms balanced
• Maximum line input: 3.5 volts SE, 7.0 volts RMS balanced
• Output impedance: 1K ohms SE, 600 ohms balanced
• Recommended amplifier load: 10K ohms or greater (SE), 20K ohms or greater (Balanced)
• Tubes, each channel: (line section) V1 (12AX7 or equivalent), V2 (6922/6DJ8)
• Power consumption: 20 watts standby, 60 watts active
• Physical dimensions: 4 3/8" high, 17 7/8" wide, 18" deep including jacks
• Shipping weight: 40 lbs.
