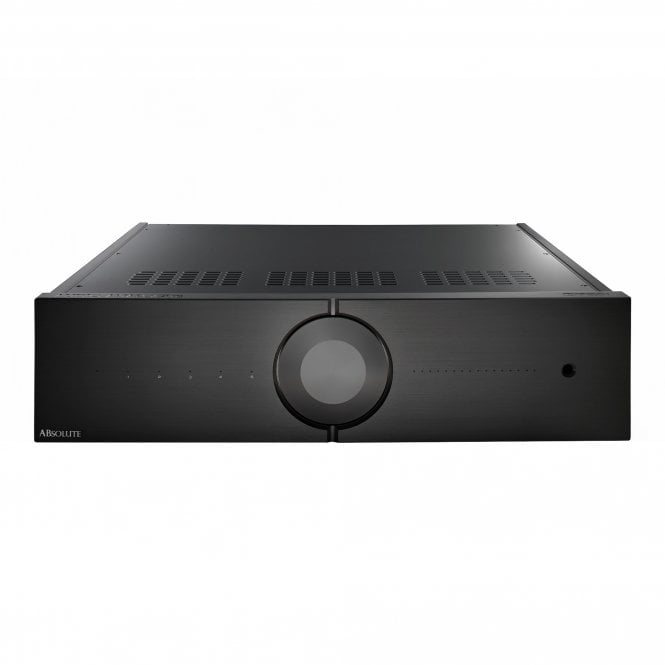

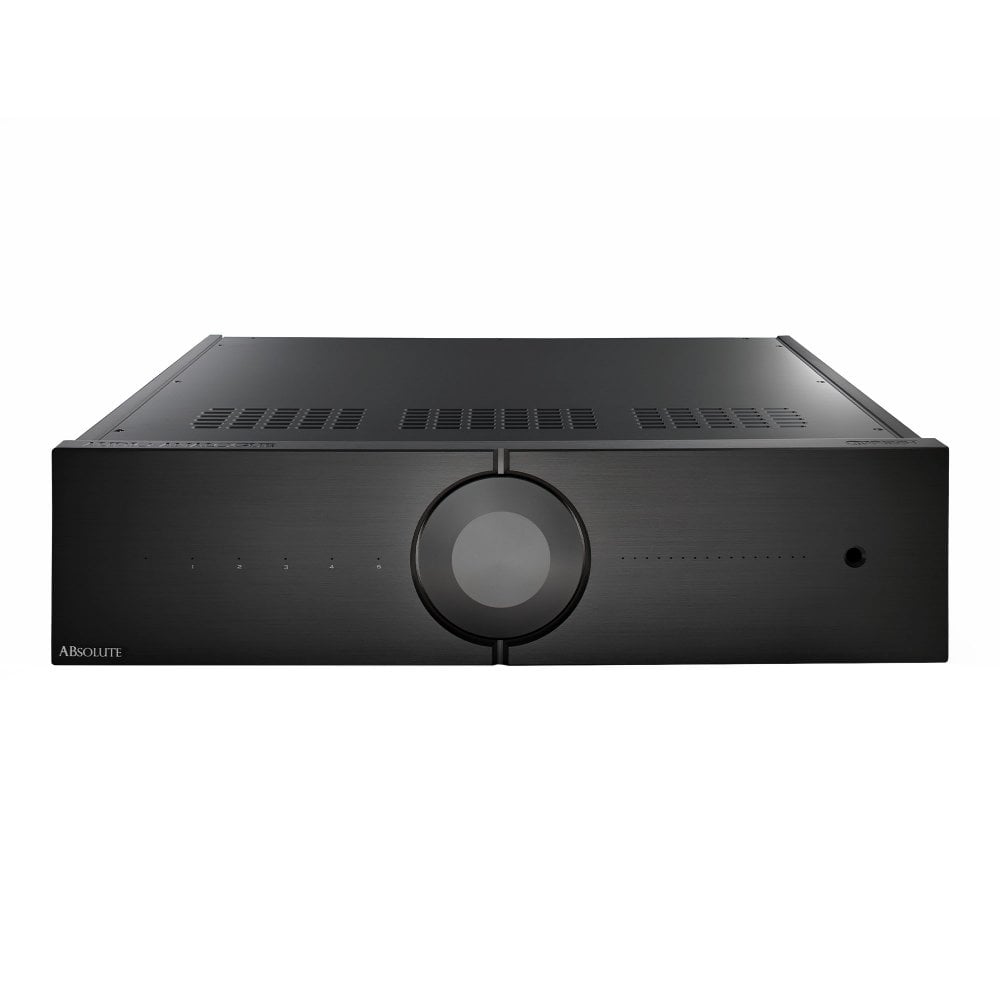

Audio Analogue ABsolute Line Preamplifier

Code: AA-ABPRE
  • £20,000.00
  • (FREE UK Delivery)
Usually dispatched within 24 hours
Loading...

Building on the expertise gained from developing preamplifier sections in our recent amplifier models, ABsolute represents the pinnacle of our preamplifier concept: the true heart of any amplification system.

A reference preamp in the Hi-End audio market, ABsolute excels in design, technology, and sound performance.

Key Features:

  • 3 x stereo RCA inputs, 2 x XLR balanced stereo inputs
  • 2 x stereo RCA outputs, 2 x XLR stereo outputs.
  • Zero global feedback from input to output.
  • Inductive power supply with electrostatic shielding, magnetic shielding and resin coating.
  • Solid Aluminium remote control included.

This design features an inductive power supply optimized to minimize main noise, supported by two 50W transformers with electrostatic shielding, magnetic shielding, and resin coating. It employs zero global feedback from input to output in a fully differential circuit with differential input and output for optimal signal integrity. Each stage is isolated on separate boards, following a fully dual-mono configuration powered independently from the supply. The preamp boards are mechanically shielded from the power supply section to reduce interference.
A relay-based volume control significantly improves distortion over semiconductor controls, thanks to the high-quality resistors used. The relay input switches minimise non-linearities and disconnect unused inputs. The gain stage features SeGeSTA technology, and oversized military-grade resistors minimise thermal distortion. Audiograde capacitors further enhance performance. The system offers three stereo RCA inputs, two balanced stereo inputs, two stereo RCA outputs, and two XLR stereo outputs, all managed by a microcontroller. Internal wiring and power cables are from Airtech for superior signal and power transmission.

Amplifier Specifications:
Signal-to-noise ratio Attenuation at 0dB, A weighted, referred to 1Vrms 93.8dB(20Hz – 80kHz)
Attenuation at 0dB, A weighted, referred to 1Vrms 98.3dB(20Hz – 22kHz)
Attenuation at 0dB, A weighted, referred to 1Vrms 102.3dB(A weighted)
Input impedance 47 kΩ
Gain Unbalanced output: 5.58 dB
Balanced output: 11.62 dB
Noise Balanced Output Noise: Band limits 20Hz-80kH 20.4µV
Balanced Output Noise: A-weighted 7.7µV
Weight 22kg
Dimensions 140 x 480 x 385mm
