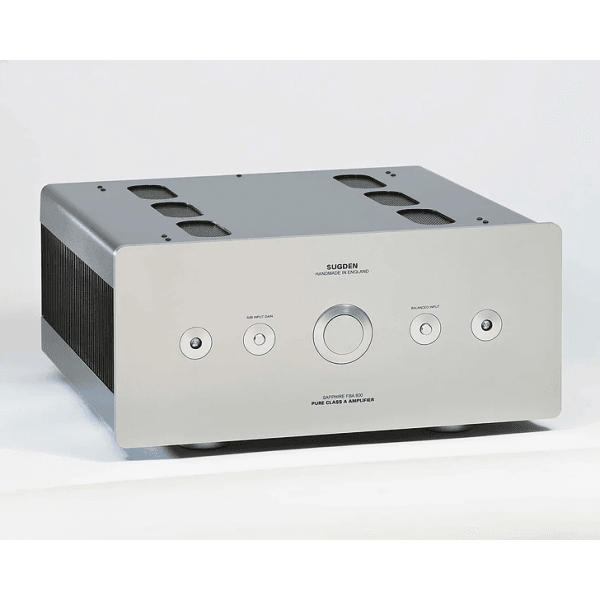

Sugden Sapphire FBA-800 Power Amplifier

Sugden Sapphire FBA-800 Power Amplifier

Code: SUGDEN-S-FBA-800
  • £8,958.00
  • (FREE UK Delivery)
Usually dispatched within 24 hours
Loading...
Trade In
This item cannot be ordered online. If you are interested please click on the Ask a Question button below.

The FBA-800 is Sugden's most advanced power amplifier. The floating bridge design combines four 20 Watt amplifiers in a single stereo chassis and provides several key benefits. Each channel consists of two amplifiers working as voltage amplifiers driving an output stage of bridged power transistors. The advantages are a low noise floor, better power output relative to the voltage rails (x2) and with the fixed current of the class A mode, low output impedance and better load tolerance.
Ask A Question
Tell A Friend
Add To Compare
This item cannot be ordered online. If you are interested please click on the Ask a Question button below.

The Power amplifier is D.C. coupled, with a servo lock, ensuring excellent low frequency detail. For safety purposes the amplifier includes a D.C. protection circuit. This circuit is statically switched using extremely low impedance Mosfet switching devices. This circuit also soft switches the power amp on and off.  The power supply is a low impedance design with a single custom made bi-filar wound transformer, with four separate windings. The main smoothing capacitors for the output stage are specially developed for professional audio applications with excellent ripple characteristics and long life. The Four power transistors per channel in the output stages are multi emitter devices with an output capability of 26 amps per device. The FBA-800 operates in the full balanced mode from the input of the unit to the output.

Technical Specification:
  • Inputs: Stereo line level, stereo balanced
  • Outputs: Stereo pair multi-way locking binding posts
  • Front Panel Gain Selector: 6dB input attenuation
  • Front Panel Input Selector: RCA or XLR
  • Input Sensitivity: 735mV for full output
  • Power Output: 40 Watts into 8 Ohms both channels working
  • Frequency Response: 0dB 20Hz-80kHz
  • Bandwidth: 6Hz-113kHz
  • Signal to Noise: >96dB
  • Distortion at 1 Watt 1kHz: >0.05%
  • Gross Weight  (packed): 25kgs
  • Dimensions: 206 x 430 x 460mm (hwd)
