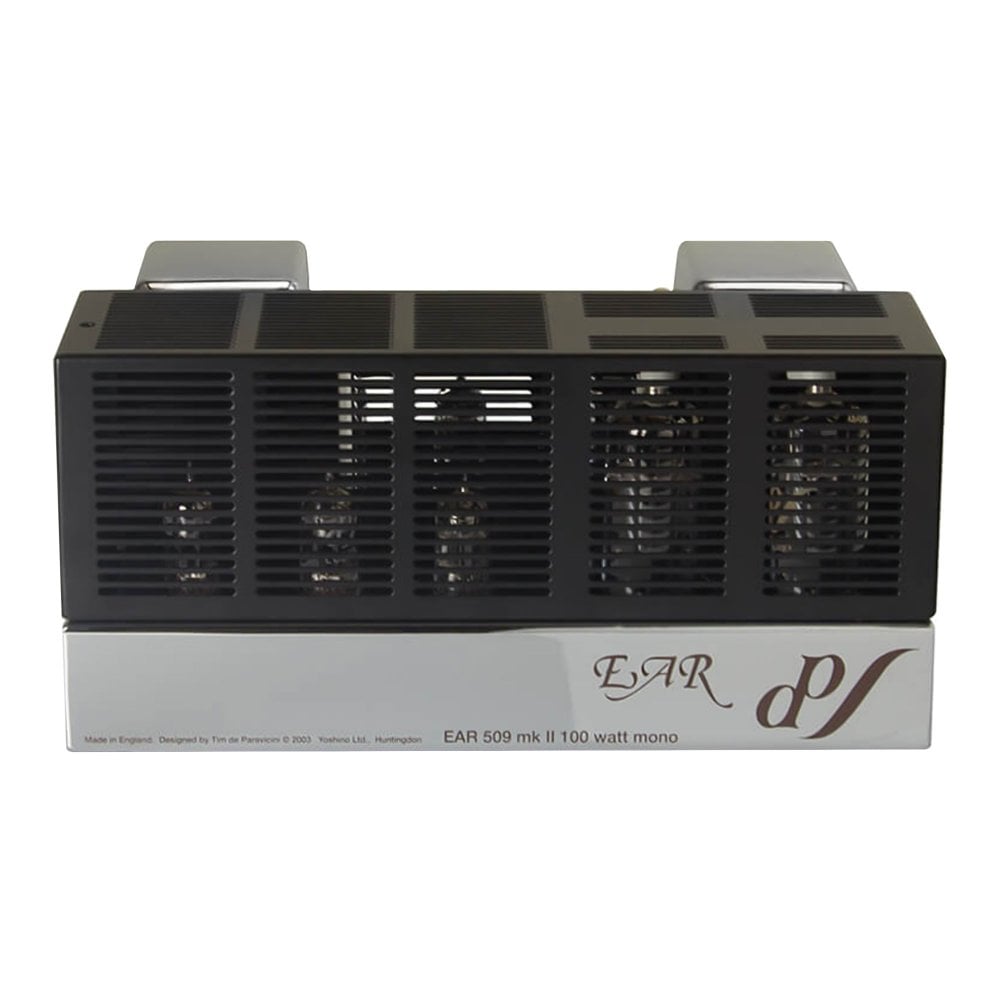

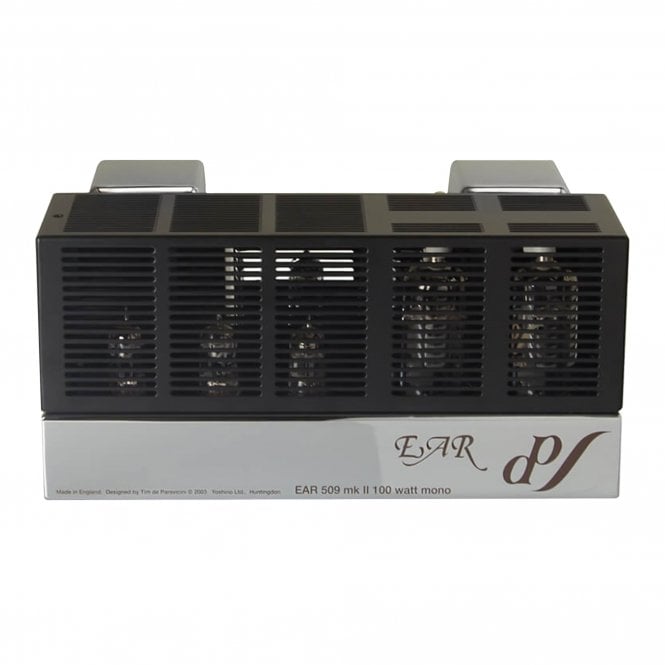

EAR-Yoshino EAR 509 Monoblocks

The EAR 509 has been built with reliability at its heart, backed up by three decades of servicing experience for the product.

Changing valves is intuitive with the EAR 509’s self- biasing. Accurately set the operational biasing by adjusting two sets of dials. With four LEDs, it informs you that it’s set with equal intensity, allowing you to easily adjust the biasing when necessary.

Technical Specifications:

• Valves: Two PL509 (EL519) / Two ECC83 (12AX7) / One ECC85 (6AQ8)
• Frequency response: 3Hz-30Khz +0 -1dB
• Signal-to-nosie ratio: 96dB
• Distortion (I.M.D.): <0.2%
• Harmonic Distortion: -3dB <0.5% 12Hz-60Kz
• Input Sensitvity (unbalanced): 1.2V
• Input Impedance (unbalanced): 25KΩ
• Output Damping Factor: 20
• Connectivity: One Line Input (RCA) or Balanced Input (XLR)
• Power output (20-20KHz): 100W into 4 & 8Ω
• Weight: 15.3kg (34lb)
• Length: 300mm (12”)
• Width: 254mm (10”)
• Height: 150mm (6”)
• Power Consumption: 180 watts
