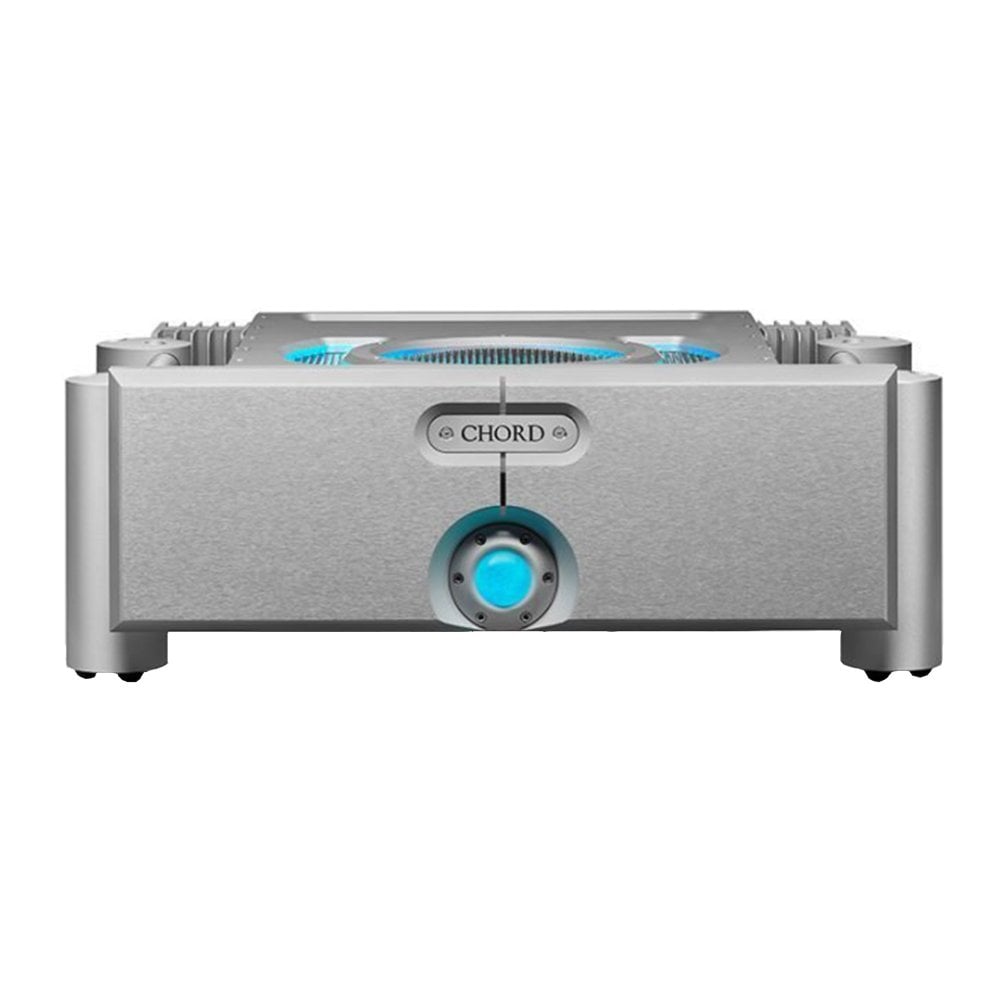

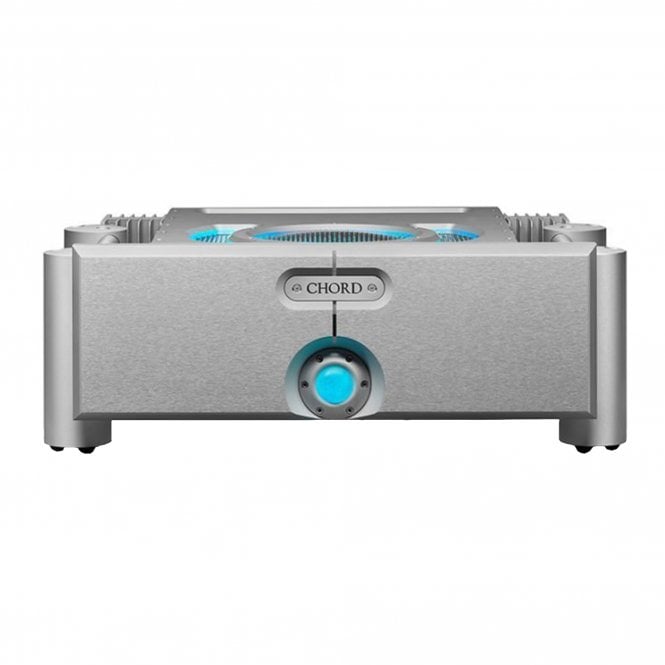

Chord Electronics Ultima 3 Mono Power Amplifier (Single)

Code: CE-ULTIMA-3

£11,500.00
Secure yours with a deposit of
(FREE UK Delivery)
|
|

Usually dispatched within 24 hours

Please Note: This item cannot be ordered online. If you are interested, please click on the 'Enquire' button above.

Featuring the all-new circuit topology, ULTIMA 3 is a thoroughly modern amplifier for the high-resolution age.

Please Note: This price is for one amplifier.

The new ULTIMA amplifier topology (which to date has been exclusive to the range-topping ULTIMA power amp), is now more affordable than ever before having trickled down into the new ULTIMA 3 mono power amp, which is every bit a Chord Electronics thoroughbred and shares the same winning formula as its range-topping cousin.

Key Features:

Class AB Sliding BiasClass AB Sliding Bias
HF Switch Mode Power SupplyHF Switch Mode Power Supply
Proprietary Chord MOSFETsProprietary Chord MOSFETs
Fully Balanced CircuitryFully Balanced Circuitry
Convection CooledConvection Cooled
Balanced XLR Inverted InputBalanced XLR Inverted Input
Balanced XLR Non-inverted InputBalanced XLR Non-inverted Input
Unbalanced RCA Inverted InputUnbalanced RCA Inverted Input
Unbalanced RCA Non-inverted InputUnbalanced RCA Non-inverted Input
12v Trigger On/Off Input12v Trigger On/Off Input
Dimmable feature lightingDimmable feature lighting
Included Top Light RingIncluded Top Light Ring
Solid Aluminium ChassisSolid Aluminium Chassis

Add To Compare

Product Description
Delivery

The new 480-watt ULTIMA 3 replaces the SPM 1400 MKII and sits in the Full Size range.The amp has been given a remodelled fascia featuring John Franks’ latest design. The precision CNC-machined fascia is made from aircraft-grade aluminium and features a reassuringly solid 28-mm thick front panel, enhanced by a recessed spherical polycarbonate power button that illuminates for standby and operation modes; a discreet and hidden front panel switch neatly located in the vertical split line, enables the lighting to be dimmed.

Like all of Chord Electronics’ full-size and Reference range amplifiers, the new ULTIMA 3 is available in a choice of Jett Black or Argent Silver finishes. The amplifier can also be specified with either the famous stackable Integra Leg system in Jett Black, Argent Silver or Nickel finishes or the highly polished black acrylic side block option. The amplifier’s rear panel contains both balanced and unbalanced connections, high-quality loudspeaker terminals, a 12V trigger and a C-19-type IEC.

Technical Specifications:

Inputs: 1x Balanced XLR Inverted Input / 1x Balanced XLR Non-inverted Input / 1x Gold Plated Unbalanced RCA Inverted Input / 1x Gold Plated Unbalanced RCA Non-inverted Input / 1x 12v Trigger Input – Chord Electronics Auto Start
Output: 2x Pair of High Quality, High Current, Gold Plated Type Speaker Terminals (Bi-wireable)
Output Power: 480w RMS per channel @ 0.005% distortion into 8Ω
Frequency Response: -1dB @ 0.2Hz to 46kHz and -3dB 0.1Hz to 200kHz
Signal to Noise Ratio: Better than -84dB
Input Impedance: 100kΩ Unbalanced/Balanced
Output Impedance: 0.04Ω
Dimensions with included Integra Legs: 18cm (H) x 48cm (W) x 36cm (D)
Dimensions with optional Side Blocks: 15cm (H) x 42cm (W) x 36cm (D)
Weight: 22.4kG
