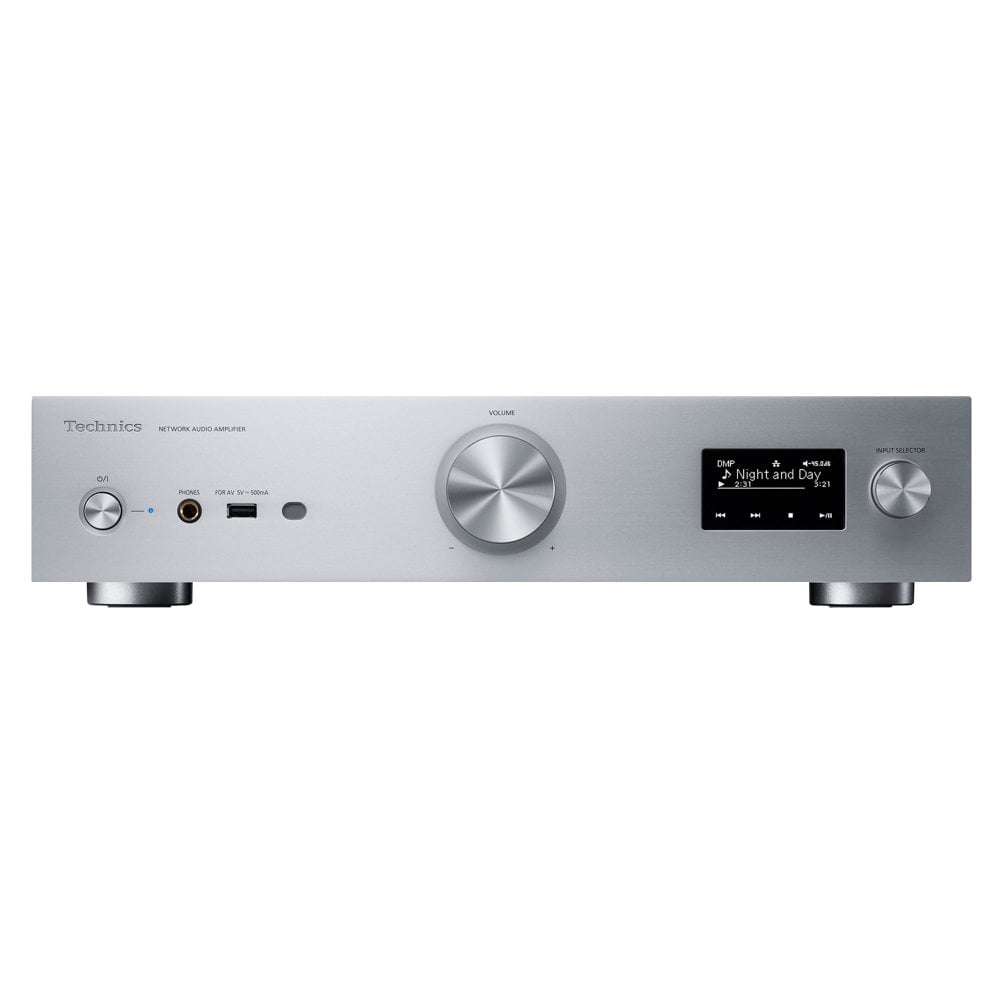

Technics SU-GX70 Network Audio Amplifier

Technics SU-GX70 Network Audio Amplifier

Code: SU-GX70EB
  • Now £1,049.00
  • (FREE UK Delivery)
Usually dispatched within 24 hours
Loading...
Trade In

Technics’ proprietary full-digital amplifier technologies such as JENO and LAPC, combined with rich connectivity and a wealth of features make this amplifier a solution for audiophiles also seeking for a universal talent

Key Features:

  • Full Digital Amp, JENO Engine (Jitter Elimination and Noise-shaping Optimisation)
  • Ideal Impulse Response through LAPC (Load Adaptive Phase Calibration)
  • Twin Power Supply Circuit System
  • High-quality Audio through Low-impact HDMI Video Output
  • Pure Amplification Mode
  • Analogue Input Using Discrete Amp Circuits
  • Chromecast, AirPlay2, Wi-fi, Bluetooth, Spotify, TIDAL, Qobuz, Deezer, Amazon HD, Roon ready (via OTA update), Line input x2, Digital input x3, USB A/B, Pre-out*, internet radio
Ask A Question
Tell A Friend
Add To Compare

Technical Specifications:

  • Output Power: 40W+40W(1kHz,T.H.D.1.0%,8Ω,20kHz LPF), 80W+80W(1kHz,T.H.D.1.0%,4Ω,20kHz LPF)
  • Load Impedance: 4Ω-16Ω
  • Frequency Response: PHONO (MM) 20Hz - 20kHz ( RIAA DEVIATION ±1dB, 4Ω ), LINE 20Hz - 40kHz ( -3dB, 4Ω ), DIGITAL: 20Hz - 80kHz ( -3dB, 4Ω )
  • Input Sensitivity / Input Impedance: PHONO (MM): 2.0 mV / 47 kΩ, LINE: 200 mV / 23 kΩ
  • Analogue Input Terminal: LINE x 2, PHONO (MM) x1
  • Digital Input Terminal: Optical digital x2, Coaxial digital x1, USB-A x1, USB-B x1
  • Analogue Output Terminal: PRE OUT x1
  • Digital Output Terminal: HDMI ARC
  • Headphone Output: Yes, Stereo Φ6.3 mm
  • USB-A: USB Audio Class Specification: USB 2.0 High-speed, USB Mass Storage class. iPod/iPhone/iPad: No
  • Support Codec: WAV: Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit). FLAC: Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit). DSD: Yes (2.8 MHz, 5.6 MHz, 11.2 MHz). AIFF: Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit). ALAC: Yes(32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit). AAC: Yes (32, 44.1, 48, 88.2, 96 kHz/16-320kbps). MP3: Yes (32, 44.1, 48 kHz / 16-320 kbps).
  • PC(USB-B): USB Audio Class Specification: USB 2.0 High-speed, USB Audio Class 2.0, Asynchronous mode. Support Codec: LPCM: Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 352.8, 384 kHz / 16, 24, 32 bit). DSD: Yes (2.8 MHz, 5.6 MHz, 11.2 MHz). DSD control mode: ASIO Native mode, DoP mode.
  • MQA Decoder: Yes
  • LAN(DMR): WAV: Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit). FLAC: Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit). DSD: Yes (2.8 MHz, 5.6 MHz, 11.2 MHz). AIFF: Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit). ALAC: Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit). AAC: Yes (32, 44.1, 48, 88.2, 96 kHz/16-320kbps). MP3: Yes (32, 44.1, 48 kHz / 16-320 kbps)
  • Ethernet Interface: LAN (100BASE-TX/10BASE-T)
  • Wi-Fi: IEEE 802.11a/b/g/n/ac/ax. 2.4 GHz band / 5 GHz band
  • Chromecast built-in: Yes
  • AirPlay 2:Yes
  • Bluetooth® (Support codec): Yes (AAC, SBC)
  • Tuner: DAB/DAB+/FM
  • Power Supply: AC 220 V - 240 V,50/60 Hz
  • Power Consumption: 63W
  • Dimensions (W x H x D): 430 mm × 98 mm × 368 mm
  • Weight: Approx. 6.6 kg
  • Accessories: AC Cord, DAB Indoor Antenna, Remote Control, Batteries for Remote Control, Owner's Manual
