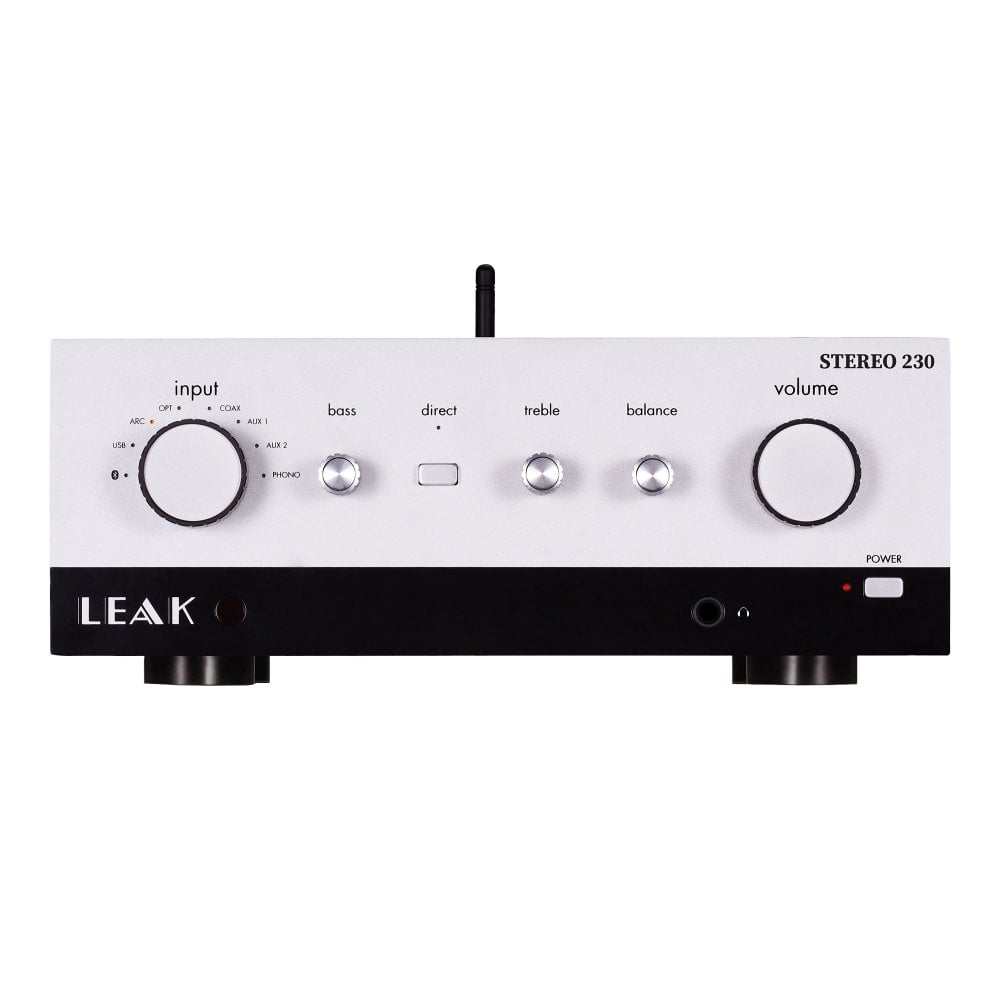

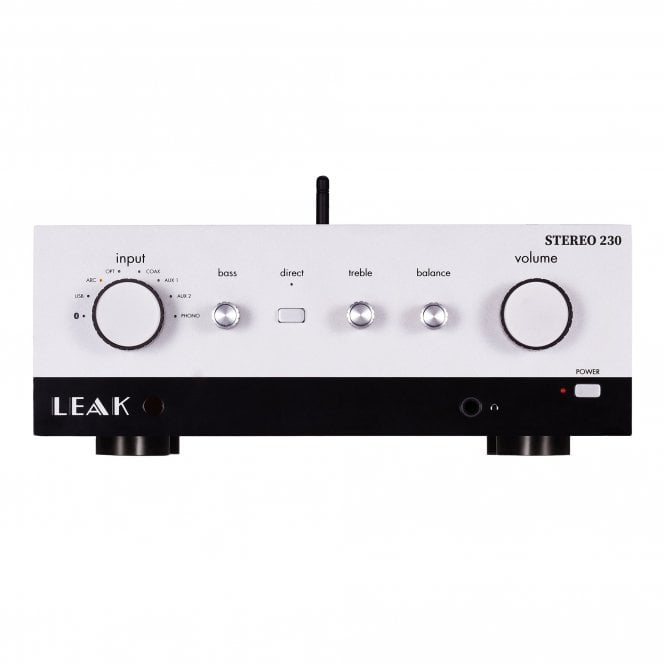

Leak Stereo 230 Integrated Amplifier

Code: ST230

From £1,099.00
Secure yours with a deposit of
(FREE UK Delivery)
|
|

Usually dispatched within 24 hours

Firmly re-established as a Hi-Fi mainstay, the LEAK product portfolio is expanding with the new LEAK STEREO 230 – a high-performance, high fidelity integrated amplifier designed for the modern-day audio and movie enthusiast.

Building upon the class and style that made the STEREO 130 a rip-roaring success, the LEAK STEREO 230 adds more power, more functionality and more substance for the discerning audiophile.

Key Features:

2 x 75W (8ohm) / 2 x 115W (4ohm) Class AB
ST MOSFET TDA7293 Dual Parallel Amplifier
ES9038Q2M 32-bit DAC
Built-in Certified Hardware MQA Full Decoder (PC USB, Coax, Optical)
Support Bluetooth 5.0 (aptX / aptX LL) streaming
Low Noise Moving Magnet Phono stage
Dedicated Current-Feedback Headphone AMP
Support USB Upgrade

Add To Compare

Product Description
Delivery

Designed to be the perfect match for a wide variety of sources and provide higher levels of amplification, the LEAK STEREO 230 offers a 115w per channel output.

It also offers a newly developed HDMI ARC connectivity function to realise the highest quality audio in AV applications, for a fully equipped integrated amplifier to meet the demands of modern audiophiles and cinephiles.

Technical Specifications:

Inputs: 2 x Analogue, 1 x Phono (MM), 1 x SPDIF (Coax), 1 x SPDIF (Optical), 1 x HDMI ARC, 1 x PC USB (USB B), 1 x Bluetooth (aptX/aptX LL), 1 x 12V Trigger
Outputs: 1 x PRE Amplifier, 1 x Stereo Speaker, 1 x Headphone, 1 x 12V Trigger
Sampling Frequency: Optical/Coaxial: 44.1kHz---192kHz / PC USB: 44.1kHz-768kHz (PCM) / DSD64, DSD128, DSD256, DSD512
Standby Power Consumption: <0.5W
Net Weight: 12.7kg (Walnut) / 11.1kg (Silver)
Gross Weight: 15.2kg (Walnut) / 12.7kg (Silver)
Dimensions (mm) (W x H x D): 328*147*414 (Walnut) / 300*115*414 (Silver)
Carton Size (mm) (W x H x D): 514*428*210 (Walnut / Silver)
Finish: Walnut / Silver
Power Requirements (depending on region): 220-240V ~ 50/ 60Hz / 100-120V ~ 50/ 60Hz
Standard Accessories: Power Cord, Remote Control, User Manual, Antennas, etc.

Preamplifier Specifications:

Gain: +41dB (Phono MM)
Input Sensitivity: 550mV (Line, Volume =MAX) / 4.8mV (Phone MM, Volume=MAX)
Input Impedance: 10K (Line) / 47K // 100pF (Phono MM)
Total Harmonic Distortion (THD): <0.001% (1kHz @2V, TONE=On)
Frequency Response: 20Hz-20kHz (+/-0.1dB)
Output Voltage: 2.3V max. (Volume = MAX)
Output Impedance: 100ohm
Signal-to-Noise Ratio: >110dB (Line, A-weighted); >75dB (Phono MM, A-weighted)

DAC Specifications:

D to A Converter: ES9038Q2M
Total Harmonic Distortion (THD): <0.002% (1kHz @ 0dBFS)
Output level (0dBFS, 1KHz): 2.3Vrms
Max. Sampling Frequency: Optical, Coaxial: 192kHz, PC USB: PCM768kHz, DSD512
Signal-to-Noise Ratio (S/N): >115dB (A-weighted)

Power Amplifier Specifications:

Gain: +32dB
Rated Power Output: 2 x 75W (8ohm, THD<1%); 2 x 115W (4ohm, THD<1%)
Frequency Response: 20Hz-20kHz (+/-0.3dB)
Total Harmonic Distortion (THD): <0.003% (1kHz @30W/8ohm)
Input Sensitivity: 550mV
Signal-to-Noise Ratio (S/N): >109dB (A-weighted

Headphone Amplifier Specifications:

Total Harmonic Distortion (THD): <0.01% (1kHz, 50mW)
Output Impedance: 4.7ohm
Load Impedance: 16-600ohm
