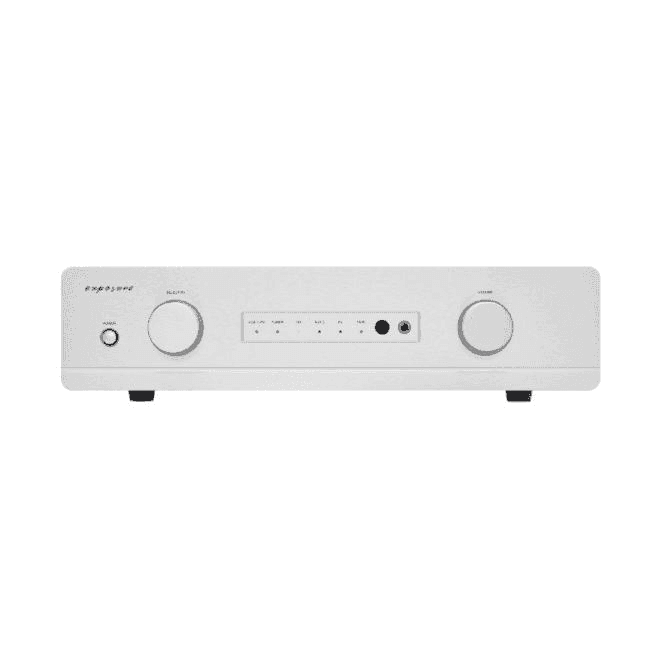

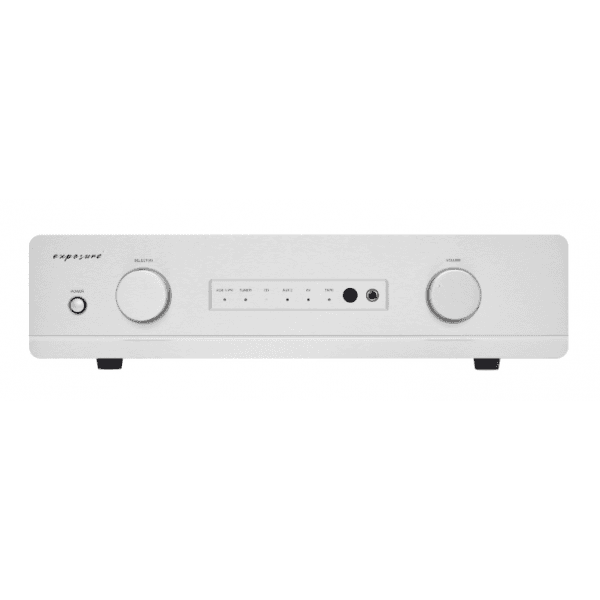

Exposure 3510 Integrated Amplifier

Outputs:

• Power Output (Stereo): 110W per channel at 1kHz into 8 Ohms

Pre-Amplifier:

• Pre-Amplifier Output: 1.9V for rated input (gain +18dB full volume)
• Maximum Output: 7.7V RMS @ 1kHz
• Frequency Response: 20Hz - 20kHz ± 0.5dB
• Total Harmonic Distortion: <0.03% at rated output, ref. 1kHz
• Signal to Noise Ratio: >100dB, ref. rated output
• Channel Separation: >60dB, 20Hz - 20kHz

Headphone:

• Output Impedance: <12 Ohms at 1kHz
• Maximum Level into 33 Ohms at 1kHz & 0.05% THD: 4.8V RMS, (700mW)
• Total Harmonic Distortion at 2V Output 1kHz: <0.02%, (120mW)
• Maximum Level into 330 Ohms at 1kHz & 0.02% THD: 7V RMS (150mW)
• Total Harmonic Distortion at 2V Output 1kHz: <0.015%, (12mW)

Inputs (Line):

• Input Impedance: 17K Ohms minimum (line input)
• Input Sensitivity: 250mV

General:

• Mains Supply: 110/120V or 220/240V, 50/60Hz (factory set)
• Fuse: T8AL for 110/120V units / T4AL for 220/240V units
• Power Consumption: <400W, 8 Ohms load, both channels driven
• Dimensions (HxWxD): 115mm x 440mm x 300mm
• Net Weight: 12kg
• Gross Weight: 14kg
