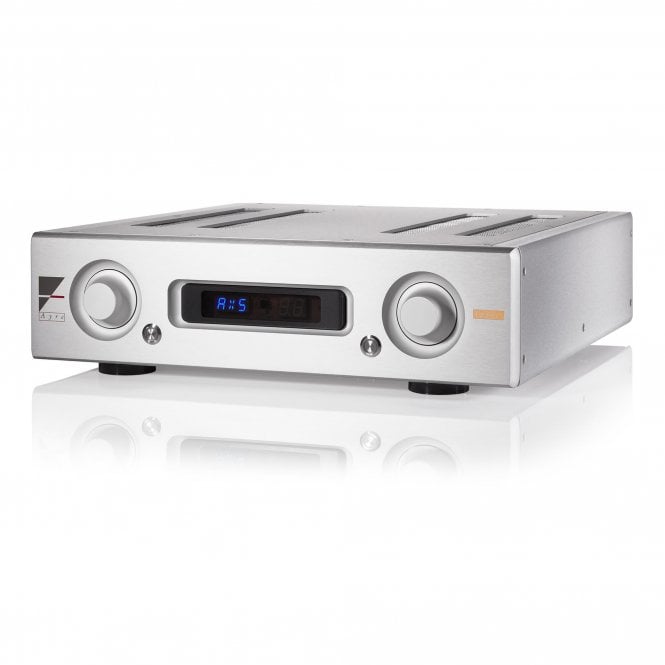

Ayre AX-5 Twenty Integrated Amplifier

Featuring Ayre’s Double Diamond output stage, their exclusive EquiLock circuitry, and a Shallco solid-silver contact switch for gain control, this fully-discrete, fully-balanced, zero-feedback integrated amplifier provides a complete solution for your modern music system.

The key to perfecting the AX-5 was to incorporate the Variable Gain Technology (VGT) of the award-winning Ayre KX-R preamplifier into the power amplifier section.

Key Features:

• Variable Gain Transimpedance (VGT) volume circuit
• 46 step volume control, each of 1.5 dB
• Ayre’s new Diamond output stage
• Ayre’s exclusive Equilock circuit
• Linear analog power supply
• Zero-feedback
• Fully-balanced discrete circuitry
• High-speed circuit board material
• Custom developed audio-grade resistors
• Ayre Conditioner power line RFI filter
• AyreLink communication system

Technical Specifications:

• Power Output: 125 watts per channel continuous into 8 ohms / 250 watts per channel continuous into 4 ohms
• Gain: 26 dB
• Input Impedance: 1 MΩ unbalanced inputs / 2 MΩ balanced inputs (1 MΩ per phase)
• Frequency Response: DC – 250 kHz
• Power Consumption: 48 watts in low-current consumption mode / 230 watts in operating mode, no signal
• Dimensions: 17.25″ W x 18.75″ D x 4.875″ H (44cm x 48cm x 12cm)
• Weight: 48lbs (22kg)
