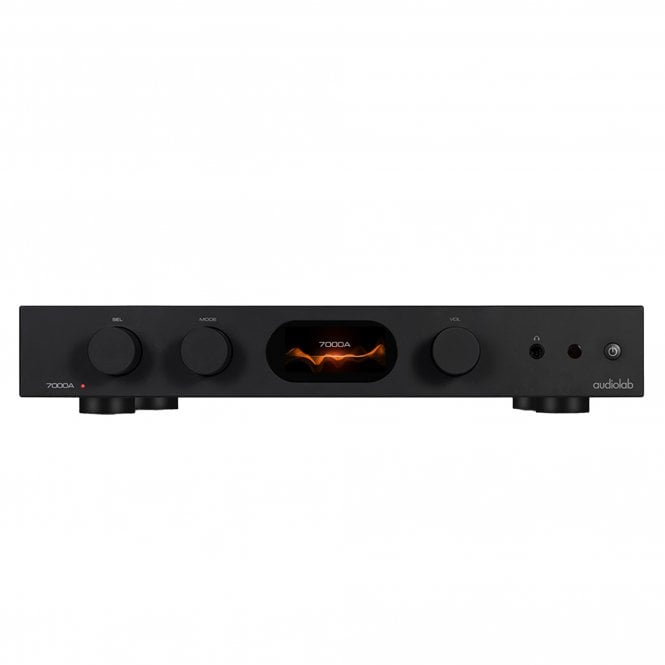

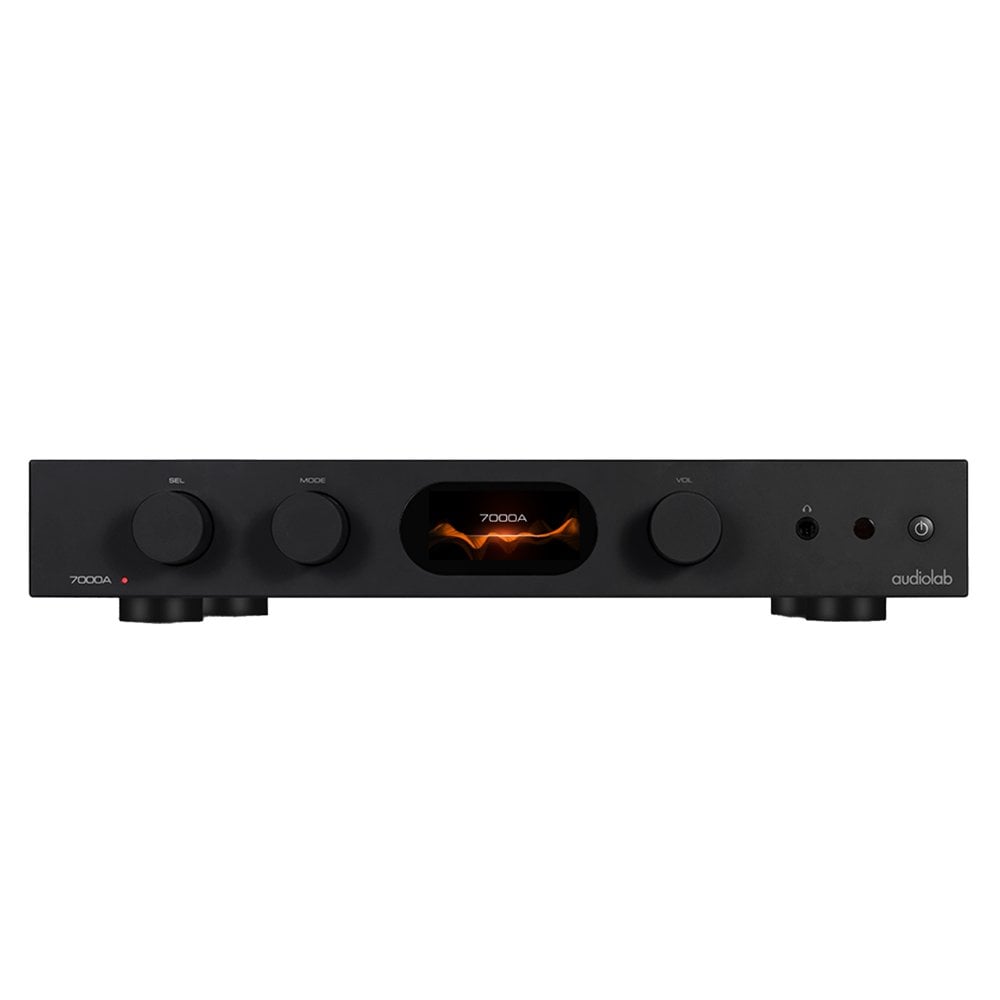

Audiolab 7000A Integrated Amplifier

Outwardly resembling the sequential series and therefore offering a brand-wide visual aesthetic match, the audiolab 7000A improves on the 6000A with a genuine 70W per channel output, a new DAC, a new full-colour IPS LCD screen and more! More compact than the 9000 series, it maintains crisp ergonomics, high-quality engineering, a useful range of facilities and an excellent all-around acoustic performance and connectivity.

Preamplifier Specifications:

• Gain: +6dB (Line); +55dB (Phono MM)
• Input Sensitivity: 820mV (Line, Volume = 0dB); 3.1mV (Phone MM, Volume = 0dB)
• Input Impedance: 10K (Line); 47K // 100pF (Phono MM)
• Total Harmonic Distortion (THD): < 0.0005% (1kHz @ 2V, Volume = 0dB)
• Frequency Response: 20Hz-20kHz (+/-0.1dB)
• Output Voltage: 2.3V max. (Volume = 0dB)
• Output Impedance: 100 ohms
• Signal-to-Noise Ratio: > 110dB (Line, A-weighted); > 76dB (Phono MM, A-weighted

DAC Specifications:

• D to A Converter: ES9038Q2M
• Total Harmonic Distortion (THD): < 0.0005% (1KHz @ 0dBFS)
• Output Level (0dBFS, 1kHz): 2.1Vrms
• Max. Sampling Frequency Optical, Coaxial: 192kHz; Ethernet, WiFi: 192kHz; USB A: 48kHz; PC USB: PCM768kHz, DSD512

Power Amplifier Specifications:

• Gain: +29dB
• Rated Power Output: 2 x 70W (8 ohms, THD<1%); 2 x 110W (4 ohms, THD<1%)
• Frequency Response: 20Hz-20kHz (+/-0.3dB)
• Total Harmonic Distortion (THD): <0.003% (1kHz @ 40W / 8 ohms)
• Input Sensitivity: 720mV
• Signal-to-Noise Ratio (S/N): > 110dB (A-weighted)
• Max. Output Current: 9A

Headphone Amplifier Specifications:

• Total Harmonic Distortion (THD): < 0.01% (1kHz, 50mW)
• Output Impedance: 4.7 ohms
• Load Impedance: 20-600 ohms

Technical Specifications:

• Inputs: 3 x Analogue, 1 x Phono (MM), 1 x Power Amplifier, 2 x SPDIF (Coax), 2 x SPDIF (Optical), 1 x HDMI ARC, 1 x PC USB (USB B), 1 x Bluetooth (aptX/aptX LL), 1 x 12V Trigger
• Outputs: 1 x PRE Amplifier, 1 x Stereo Speaker, 1 x Headphone, 1 x 12V Trigger
• Sampling Frequency: Optical / Coaxial: 44.1kHz - 192kHz; PC USB: 44.1kHz-768kHz (PCM) / DSD64, DSD128, DSD256, DSD512
• Standby Power Consumption: <0.5W
• Net Weight: 8.4kg
• Gross Weight: 10.7kg
• Dimensions (mm) (W x D x H): 444 x 340 x 78
• Carton Size (mm) (W x D x H): 500 x 455 x 140
• Finish: Black / Silver
• Power Requirements: 220-240V ~ 50/ 60Hz;
• (depending on region): 100-120V ~ 50/ 60Hz
• Standard Accessories: Power Cord, Remote Control, User Manual, Antennas, etc.
