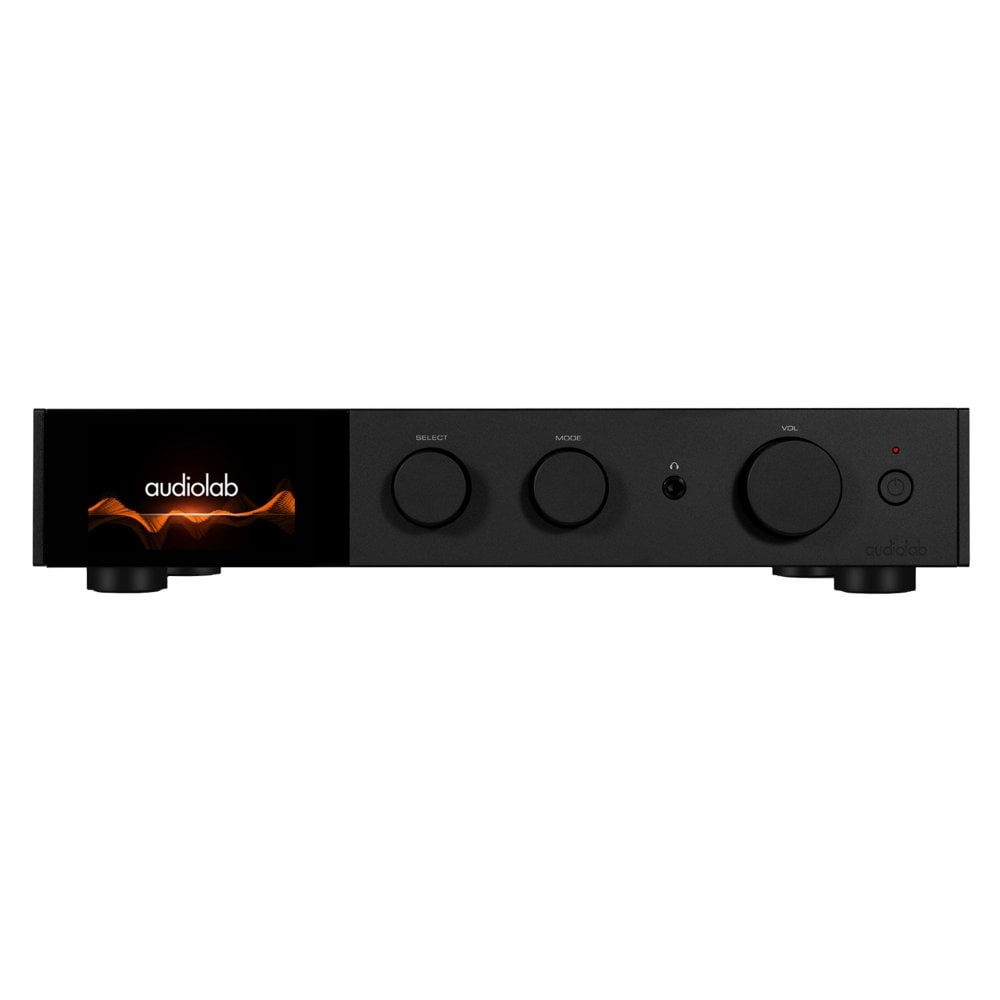

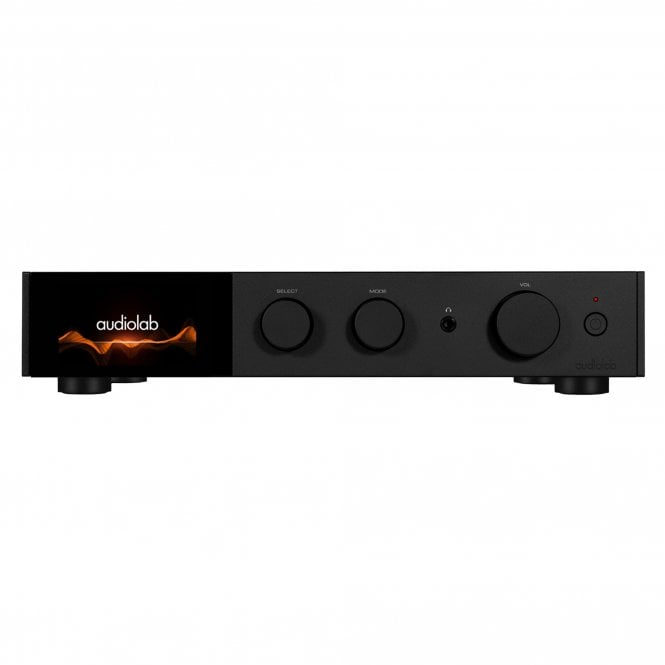

Audiolab 9000A Integrated Amplifier - Black - Ex-Demo

Audiolab 9000A Integrated Amplifier - Black - Ex-Demo

Code: AP-9000A/B-EX
  • Now £1,499.00
  • (FREE UK Delivery)
Usually dispatched within 24 hours
Loading...

Please Note: This is a one time listing for an ex-demonstration unit at a discounted price, please note there maybe cosmetic imperfections.

As ever, the 9000A is the centre of the audiolab focus in being the beating heart of any high-performance audio system. It’s more powerful, capable and feature-packed than any of the preceding models – the most advanced audiolab integrated amplifier yet. Versatility is key to audiolab’s integrated amplifier appeal, and the 9000A offers to cater for audiophiles of all creeds. Loaded with digital and analogue source connection, wireless connectivity for portable devices, an all-new phono stage to cater for vinyl playback and the usual, class-leading amplification for loudspeakers and headphones.

Design Philosophy and Core Technology:

  • 2 x 100W (8 ohms) / 2 x 160W (4 ohms) Class AB
  • ES9038Pro 32-bit DAC
  • 4.3" (800 x 480mm) Large Size Full View IPS LCD
  • Built-in Certified MQA Full Decoder (PC USB, Coax/Optical)
  • Bluetooth 5.1 (aptX/aptX HD/AAC/LDAC) Support
  • Dedicated High-performance, Low-noise MM Phono Stage
  • Dedicated Current-Feedback Headphone AMP
  • Integrated / PRE-POWER / PRE Only Modes
  • USB Upgrade Support
Ask A Question
Tell A Friend
Add To Compare

Matching the modern hi-fi enthusiast’s requirements, the 9000A features a full-colour IPS LCD screen, offering clear and informative playback, source and file information. Not to mention a host of menu options for optimum performance and user-defined settings. Various display options are provided, which also include two VU meter options, allowing the 9000A to be visually informative or, in the case of ‘display off’ settings, a discreet centrepiece of any audio system.

Technical Specifications:

  • Model: 9000A
  • General Description: Integrated Amplifier
  • Inputs: 3 x Analogue, 1 x XLR, 1 x Phono (MM), 1 x Power Amplifier, 2 x SPDIF (Coax), 2 x SPDIF (Optical), 1 x PC USB (USB B), 1 x Bluetooth (aptX/aptX HD/LDAC), 1 x 12V Trigger
  • Outputs: 1 x PRE Amplifier,1 x Stereo Speaker, 1 x Headphone, 1 x 12V Trigger
  • Sampling Frequency: Optical / Coaxial: 44.1kHz-192kHz; PC USB: 44.1kHz-768kHz (PCM) / DSD64, DSD128, DSD256, DSD512

Preamplifier:

  • Gain (max.): +6dB (Line), +53dB (Phono MM)
  • Input Sensitivity: 1Vrms (Line, Volume = 0dB); 2Vrms (XLR, Volume = 0dB), 4.4mV (Phono MM, Volume=0dB)
  • Input Impedance: 10K (Line); 47K // 100pF (Phono MM)
  • Total Harmonic Distortion (THD): < 0.0004% (1kHz @ 2V, Volume = 0dB)
  • Frequency Response: 20Hz-20kHz (+/-0.1dB)
  • Output Voltage: 2.3V max. (Volume = 0dB)
  • Output Impedance: 120 ohms
  • Signal-to-Noise Ratio: > 110dB (Line & XLR, A-weighted); > 80dB (Phono MM, A-weighted)

DAC:

  • D to A Converter: ES9038Pro
  • Total Harmonic Distortion (THD): < 0.001% (1kHz @ 0dBFS)
  • Output Level (0dBFS, 1kHz): 2.1Vrms
  • Max. Sampling Frequency: Optical, Coaxial: 192kHz; PC USB: PCM768kHz, DSD512
  • Signal-to-Noise Ratio (S/N): > 117dB (A-weighted)

Power Amplifier:

  • Gain: +29dB
  • Rated Power Output: 2 x 100W (8 ohms, THD<1%); 2 x 160W (4 ohms, THD<1%)
  • Frequency Response: 20Hz-20kHz (+/-0.3dB)
  • Total Harmonic Distortion (THD): <0.002% (1kHz @ 50W / 8 ohms)
  • Input Sensitivity: 1Vrms
  • Signal-to-Noise Ratio (S/N): > 110dB (A-weighted)
  • Max. Output Current: 15A

Headphone Amplifier:

  • Total Harmonic Distortion (THD): < 0.01% (1kHz, 50mW )
  • Output Impedance: 2.35 ohms
  • Load Impedance: 20-600 ohms

General:

  • Standby Power Consumption: <0.5W
  • Net Weight: 9.4kg
  • Gross Weight: m11.2kg
  • Dimensions (mm) (W x H x D): 444 x 342 x 89
  • Carton Size (mm) (W x H x D): 514 x 470 x 161
  • Finish: Black / Silver
  • Power Requirements: 220-240V ~ 50/60Hz; (depending on region) 100-120V ~ 50/60Hz
  • Standard Accessories: Power Cord, Remote Control, User Manual, Antennas, etc.
